Internet # 332773176

Model # ES150

thermomate

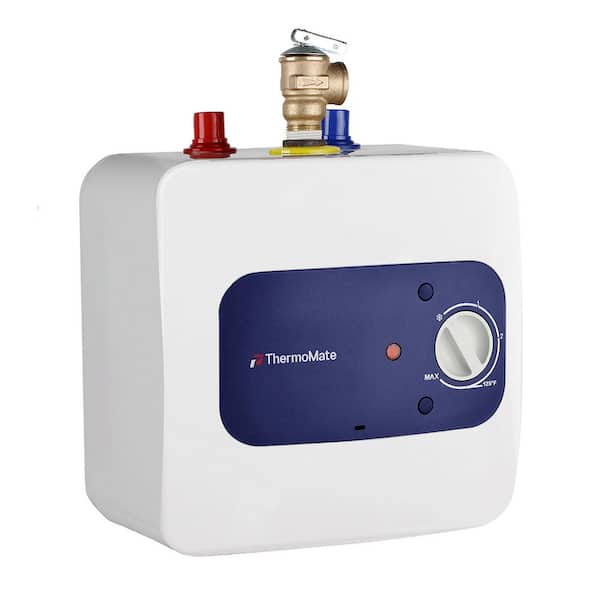

Mini Tank 2 Gal Compact Element Point of Use Electric Water Heater with 3-Years Warranty

Name: thermomate Mini Tank 2 Gal Compact Element Point of Use Electric Water Heater with 3-Years Warranty ES150
Brand: thermomate
SKU: 1012890789
Price: 195.99 USD
Rating: 5 (7 reviews)

Questions & Answers (2)

$19599

/piece

Save up to $100 on your qualifying purchase

Apply for a Home Depot Consumer Card

Floor or wall-mounted, idea for under sink
2 GPM stored hot water
Plug into 120V outlet, 3-year warranty
View More Details

Free & Easy Returns In Store or Online

Return this item within 90 days of purchase.

Read Return Policy

Ask about this product

Get an answer now with AI

AI-generated from the text of manufacturer documentation. To verify or get additional information, please contact The Home Depot customer service.

Product Details

About This Product

We are a company that has been specialising in Mini Tank Electric Water Heaters for 7 years. Thermomate water heaters, are compact, easy to install and get instant endless hot water. Perfect for installing under the sink.

Highlights

Endless hot water, point of use 2 gal. mini tank water heater, provides instant hot water where you need it with fast recovery, reducing standby loss
Comfortable temperature control, with advanced incoming and outgoing water temperature sensor technology, rated at 1.31 GPM at 1440-Watt
Thermostat control, keep stable temperature of the output hot water, not too cold or too hot

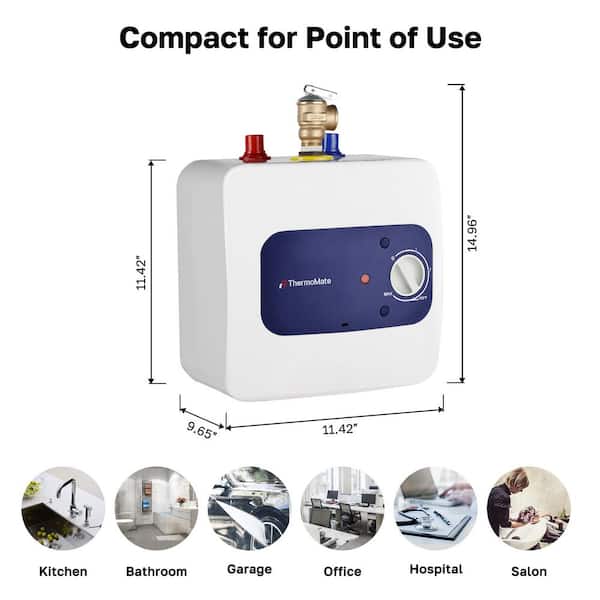

Easy to install, small compact designed for your sink, product dimension 11.42 in. x 11.42 in. x 9.65 in., can be wall or floor mounted under sink / counter
Highly effective, incoloy 800 stainless steel heating element, 1440-Watt, excellent at resisting corrosion, as well as handling and transferring heat at high temperatures, no scaling, heating efficiency up to 99%
Safety, include a CSA T and P relief valve CASH USA made, UL certified, ensuring a safe long service life
Durable, enamel coating glass-lined, gold porcelain linning for better insulation and preventing leaking
Convenient, stores up to 2 GPM, provide hot water right where you need it
Electricity supply, 1.44 kW at 120 volts, 12-Amp, plug in connection with 2 ft. power cord
Specifications and warranty, water connections: 1/2 in. NPT, max water pressure: 150 PSI, nominal current: 12A, 3 year warrantys and 24 hours customer service
Return Policy

Product Information

Internet # 332773176

Model # ES150

Additional Resources

Shop All thermomate

From the Manufacturer

Specifications

Dimensions: H 11.43 in, W 11.41 in, D 9.66 in

Dimensions

Product Depth (in.)	9.66 in
Product Height (in.)	11.43 in
Product Width (in.)	11.41 in
Water Connection Size (in.)	1/2"

Details

Amperage (A)	12 A
Application Type	Point of Use
Efficiency Level	Super High
Fuel Type	Electric
Household Size	1-2
Indoor/Outdoor	Indoor
Nominal Tank Capacity (gallons)	2 gal
Pack Size	1
Product Weight (lb.)	13.71 lb
Required Volt Connection	120 volt
Returnable	90-Day
Tank Warranty	3 Year
Uniform Energy Factor	0.99
Water Heater Features	Temperature Pressure Relief Valve
Water Heater Profile	Compact
Wattage (watts)	1440 W

Warranty / Certifications

Certifications and Listings	UL Listed
Part Warranty	3 Year

Questions & Answers

Why does the manual list 18 pages and the PDF is only 5?

ByAug 10, 2025

1 Answer |

Answer This Question

Perhaps the PDF document is too large.

By|Aug 14, 2025

0/0

Can I connect the current hot water line to this unit to have "instant" hot water and then sustained hot water from my current hot water heater?

ByJan 4, 2025

1 Answer |

Answer This Question

Yeah, sure. But this is an instant electric mini tank water heater.

By|Feb 21, 2025

0/0

(1)

Viewing 1-2 of 2

Customer Reviews

5 out of 5

5 out of 7 reviews
100% recommend this product

Filter by:

Showing 1-7 of 7 reviews

Aug 30, 2025

Useful mini water heater for my kitchen drinking water heater.

Mini water heater is a planned upgrade of my kitchen water supply. I was planning over a year to upgrade my kitchen water supply. I am using the kitchen water as my drinking water supply source. So hot water was an issue and questionable. Setting up the water heater is resolving the problem. Now I can take the right temperature of water. The heater also auto controls the temperature and pressure which is the great advantage of this mini water heater. 120 Volt electric supply supports the mini water tank. So I didn't need any upgrade of the system. Only I have to sacrifice the storage cabinet under the sink.

This review is from Mini Tank 8 Gal. Compact Element Point of Use Tank Electric Water Heater with 3 Years Warranty

DIY
Seed Program Review(What's this?)

Recommended

Aug 20, 2025

Perfect for my needs!

I got this particular water heater to use in my camper for a few reasons. 1. It runs on 110v standard power and I'm not a fan of gas. 2. It fits perfectly under the Queen size bed. The bed will raise 6" for extra storage but I wanted it to fit with the bed down. 3. It's light weight and has plenty of hot water for the camper sink and i can even take a quick shower if I turn the water off while soaping up. 4. The controls are super simple and it was really easy to install and it plugs into a regular outlet with the pre-wired cord!!!

This review is from Mini Tank 8 Gal. Compact Element Point of Use Tank Electric Water Heater with 3 Years Warranty

Pro
Seed Program Review(What's this?)

Recommended

Aug 9, 2025

Instant hot water, bathroom wide

We are using this as an add-on water heater, i.e., the inlet pipe is the house's hot water pipe. The outlet pipe feeds the entire master bathroom. We have near instant hot water at any fixture. House is all-electric so this added 8 gals to our main 50 gal tank. We set both to about 140, but we use a mixing valve to limit the 8 gal water heater's inlet temp to 120 to limit the main tank usage. The mixing valve has a backflow preventer so we had to add a small expansion tank. This being the largest model, we have some very tight plumbing, i.e.. the drain pipe has to "goose neck" around the front bulge, etc. Our electrical inspector requires a 20 amp circuit even though a 15 amp would meet code, so we wired for that; we installed a recessed "clock" receptacle to support the tight fit. We are very pleased with it and don't believe it requires much extra energy to provide near instant hot water.

This review is from Mini Tank 8 Gal. Compact Element Point of Use Tank Electric Water Heater with 3 Years Warranty

DIY
Seed Program Review(What's this?)

Recommended

Jan 13, 2025

Great heater!

Cool product! Its pretty small which means it'll fit in lots of spaces. This was a 120v model and doesnt pull many amps so you wouldnt need a 20A circuit. BUT, you shouldn't run it with any other high draw devices like curlers or hair driers. You'll want to check plumbing connections before you start the install because you may need to find adapters.

DIY
Seed Program Review(What's this?)

Recommended

Dec 12, 2024

Tiny but mighty

This little thing is tiny, but mighty! It comes packaged very well. The Styrofoam is super thick and it comes with all the necessary bolts and installation instructions. This works great for small spaces or perhaps a small guest house which is what we’re using it for… Tiny but mighty, and doesn’t take up a lot of space, I definitely recommend this if you need it for a small spot.

DIY
Seed Program Review(What's this?)

Recommended

Nov 28, 2024

Compact water heater

I love the compact size and ease of install of this water heater. Just hook up the water lines and plug it in. I like that I can use existing outlets and do not have to direct wire or run gas. Water is a precious commodity in a camper so instead of waiting for the water to run warm I installed this under the sink for instant hot water. For being a 120v unit this works extremely well.

DIY
Seed Program Review(What's this?)

Recommended

Nov 7, 2025

I went from a 4 gal Bosch to this in the 8 gal and it’s been a world of difference. Not only does it get hotter but pairing that with the larger tank ensures that I never get cold water at the shampoo bowl!

This review is from Mini Tank 8 Gal. Compact Element Point of Use Tank Electric Water Heater with 3 Years Warranty

Verified Purchase
