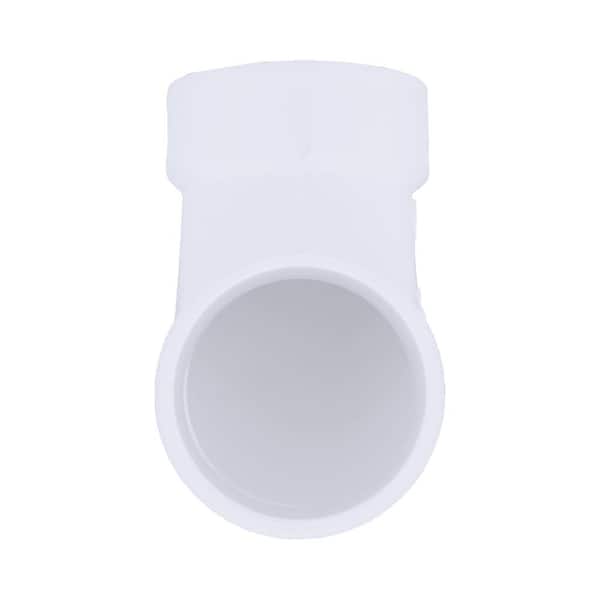

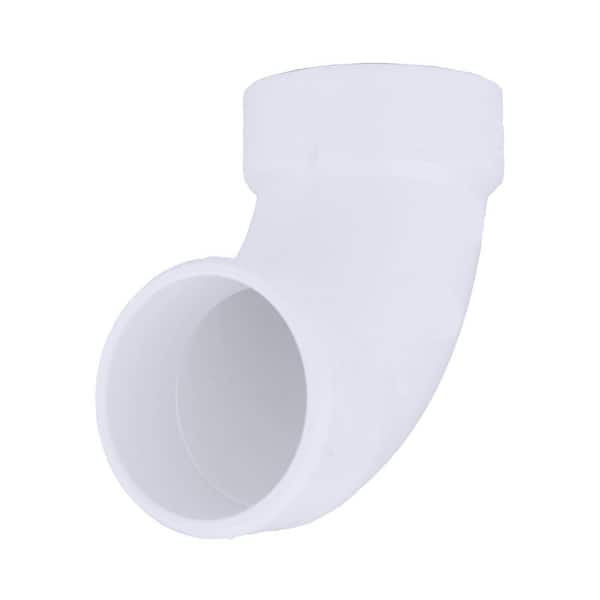

1-1/2 in. PVC DWV 90° Street Elbow Fitting

$3.59
  • DWV fittings are white and used in non-pressure applications
  • DWV fittings are installed using solvent cementing
  • DWV fittings are for use where systems won't exceed 140°
  • View More Details
Store
0 in stock
icon
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase. Read Return Policy
Product Details

About This Product

PVC fittings are for drain, waste and vent purposes. They are used in gravity-fed waste elimination systems and are for Non-Pressure systems where temperatures will not exceed 140°F. PVC is lightweight and easy to install. They require no special tools for cutting, and be installed with solvent cementing, threading, flanging, and roll-grooved joining.

Highlights

  • White pipe and fittings with red print
  • Not intended for pressure use
  • For use where systems will not exceed 140° F
  • Are used in gravity-fed waste elimination systems and are for Non-Pressure systems
  • Conforms to meet Standards: ASTM D 1784, ASTM D 2665, ASTM D 3311 and NSF 14
  • Require no special tools for cutting and to be installed with solvent cement
  • Note: Product may vary by store.
  • Return Policy
  • California residents
     see Prop 65 WARNINGS

Product Information

Internet # 203393437

Model # PVC003020800HD

Store SKU # 828289

Specifications

Dimensions: H 2.25 in, W 3.5 in, D 3.656 in

Dimensions

Double Fitting Size

1-1/2" x 1-1/2"

Fitting 1 size

1-1/2"

Fitting 2 size

1-1/2"

Fitting Size Dimensions

1-1/2" x 1-1/2"

Product Depth (in.)

3.656 in

Product Height (in.)

2.25 in

Product Width (in.)

3.5 in

Single Fitting Size

1-1/2"

Details

Application

Non-Potable Water

Bend Degree

90 Degree

Color Family

White

Color/Finish

White

Compatible Pipe Material

PVC

Connection 1

Hub

Connection 2

Hub

Connectivity

Solvent Cemented

DWV

DWV

Features

Underground Rated

Fitting or Connector Type

Elbow

Fitting/ Connector Collection

PVC

Material

PVC

Maximum working pressure (psi)

0.0

Maximum Working Temperature (F)

140

Pack Size

1

Pipe or Fitting Product Type

Fittings & Connectors

Product Weight (lb.)

0.219 lb

Reducing Fitting

No

Returnable

90-Day

Schedule Type

Schedule 40

Warranty / Certifications

Manufacturer Warranty

Charlotte Pipe and Foundry Company® (Charlotte Pipe®) Products are warranted to be free from manufacturing defects and to conform to currently applicable ASTM standards for a period of five (5) years from date of delivery.

Questions & Answers

8Questions
caret
Q:does this connector have a socket one end only. or both ends. Cant tell from the image!
by|Nov 10, 2023
1 Answer
Answer This Question

A:  Never mind, from closer examination it appears that only one end is socket.

by|Nov 12, 2023
    caret
    Q:Is the ID of one end 2 and the other end OD 2 ?
    by|Nov 8, 2023
    2 Answers
    Answer This Question

    A:  This is basically the same question I am again asking, since the answer was not helpful. You cant tell from the poor quality of the image if this has one or two socket ends.

    by|Nov 10, 2023

      A:  For an explanation and/or a recommendation, please contact our Technical Services Department at 800-438-6091.

      by|Nov 10, 2023
        1 found this answer helpful
        caret
        Q:What is OD on 3? pipe
        by|Jul 2, 2023
        2 Answers
        Answer This Question

        A:  the OD of a 3" pipe is 3.5". The OD of the 90 deg elbow shown in the picture is just shy of 4"

        by|Jul 2, 2023

          A:  Hi. The OD for the 3 in. PVC DWV 90-Degree Street Elbow Fitting is 3.5". For a more detailed explanation and/or a recommendation, please contact our Technical Services Department at 800-438-6091.

          by|Jul 3, 2023
            caret
            Q:Why is this too big for my 3? radon fan pipe?
            by|Feb 17, 2023
            1 Answer
            Answer This Question

            A:  Charlotte Pipe products are designed to be used in plumbing applications only.

            by|Mar 7, 2024
