Model # FRN-R-40ID

Internet #202975157

null 40-Amp 250-Volt EasyID Fusetron Dual Element Time-Delay Current Limiting Fuse
0051712204446

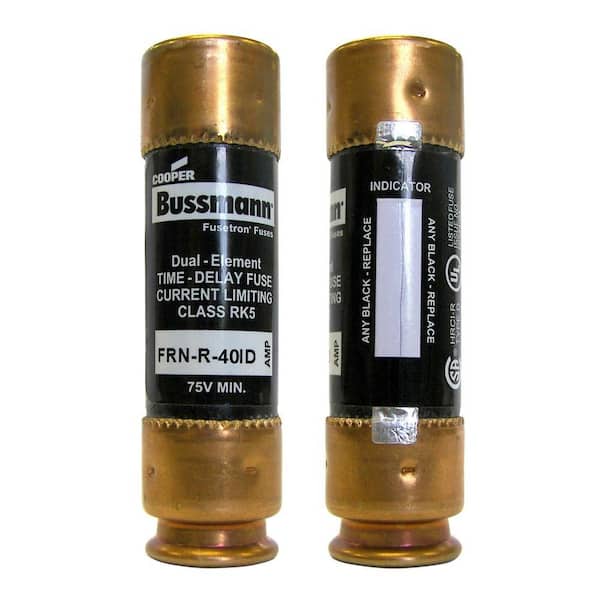

40-Amp 250-Volt EasyID Fusetron Dual Element Time-Delay Current Limiting Fuse

$747 /each

Product Overview

The RK5 fuse provides motor overload, ground fault and short-circuit protection. Helps protect motors against burnout from single phasing on three phase systems. Simplifies and improves blackout prevention (selective coordination). Dual-element fuses can be applied in circuits subject to temporary motor overloads and surge currents to provide both high performance short-circuit and overload protection. The overload element provides protection against low level over current of overloads and will hold an overload which is five times greater than the ampere rating of the fuse for a minimum of ten seconds.
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Product Overview

The RK5 fuse provides motor overload, ground fault and short-circuit protection. Helps protect motors against burnout from single phasing on three phase systems. Simplifies and improves blackout prevention (selective coordination). Dual-element fuses can be applied in circuits subject to temporary motor overloads and surge currents to provide both high performance short-circuit and overload protection. The overload element provides protection against low level over current of overloads and will hold an overload which is five times greater than the ampere rating of the fuse for a minimum of ten seconds.
  • Time delay
  • 250 V
  • UL listed
  • Class RK5

Product Overview

Model #: FRN-R-40ID
Internet #: 202975157

The RK5 fuse provides motor overload, ground fault and short-circuit protection. Helps protect motors against burnout from single phasing on three phase systems. Simplifies and improves blackout prevention (selective coordination). Dual-element fuses can be applied in circuits subject to temporary motor overloads and surge currents to provide both high performance short-circuit and overload protection. The overload element provides protection against low level over current of overloads and will hold an overload which is five times greater than the ampere rating of the fuse for a minimum of ten seconds.

  • Time delay
  • 250 V
  • UL listed
  • Class RK5

Compare Similar

Price
$5.77 /each
$7.47 /each
$10.47 /each
$10.47 /each
Name FRN Series Brass 50-Amp 250-Volt Fusetron Time Delay Fuse 40-Amp 250-Volt EasyID Fusetron Dual Element Time-Delay Current Limiting Fuse 30 Amp 600V Dual Element Class RK5 Fuse 20 Amp 600V Dual Element Class RK5 Fuse
Brand Cooper Bussmann Cooper Bussmann Cooper Bussmann
Ratings (1) (0) (1) (0)
Fuse Type Cartridge Cartridge Cartridge Cartridge
Maximum Amperage (amps) 50 40 30 20
Power Distribution Features Time Delay Time Delay Time Delay Time Delay
Voltage (volts) 250 250 600 600
View Product View Product View Product View Product

Specifications

Dimensions

Individual product diameter (in.)
0.8
Product Depth (in.)
2.9
Product Height (in.)
0.3
Product Length (in.)
0.3
Product Width (in.)
0.8

Details

Base type
Rejection
Electrical Product Type
Fuse
Fuse Type
Cartridge
Maximum Amperage (amps)
40
Number in Package
10
Power Distribution Features
Time Delay
Product Weight (lb.)
0.11lb
Returnable
90-Day
Voltage (volts)
250

Warranty / Certifications

Certifications and Listings
1-UL Listed
Manufacturer Warranty
None

Specifications

Dimensions

Individual product diameter (in.)
0.8
Product Depth (in.)
2.9
Product Height (in.)
0.3
Product Length (in.)
0.3
Product Width (in.)
0.8

Details

Base type
Rejection
Electrical Product Type
Fuse
Fuse Type
Cartridge
Maximum Amperage (amps)
40
Number in Package
10
Power Distribution Features
Time Delay
Product Weight (lb.)
0.11lb
Returnable
90-Day
Voltage (volts)
250

Warranty / Certifications

Certifications and Listings
1-UL Listed
Manufacturer Warranty
None
