- GE residential electrical products is switching to ABB
- Bolt to the bus connections of load centers and lighting panels
- UL listed HACR (heating, air conditioning and refrigeration)
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase.
Get an immediate answer with AI
AI-generated from the text of manufacturer documentation. To verify or get additional information, please contact The Home Depot customer service.
Product Details
About This Product

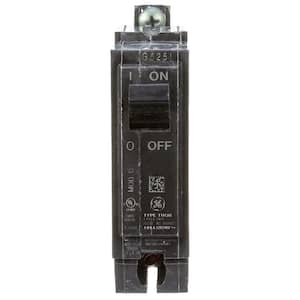

The GE Q line circuit breakers are 1 in. W per pole, compact, thermal-magnetic devices designed for residential and commercial applications. The QB breakers are bolt-on versions of the Q Line used for bolting to the bus connections of load centers and lighting panels. All Q Line circuit breakers feature Quick-make and Quick-break mechanisms, common trip bars, and easy to spot trip indication to ensure safety and reliability.
Highlights
- Compatible with type AQ and AQC panel boards
- Trips to the center position
- 120 VAC
- 10 kAIC interrupting rating
- Case is made of heat-resistant thermoset for stability and structural integrity
- Meets NEMA standards
- ANSI certified, CSA and UL listed
- Learn More About Circuit Breakers Here in our Buying Guide.
- Click here for more information on Electronic Recycling Programs
- Return Policy
Product Information
Specifications
Dimensions: H 3 in, W 3.53 in, D 1 in
Dimensions
Product Depth (in.) | 1 in | Product Height (in.) | 3 in |
|---|---|---|---|
Product Width (in.) | 3.53 in |
Details
AIC Rating | 10000 | Breaker Type | Standard |
|---|---|---|---|
Connection Type | Non-Neutral | Interruption Type | Standard Trip |
Maximum Amperage (A) | 30 A | Mounting Type | Bolt-On |
Number of Poles | Single | Number of Spaces | 1 |
Pack Size | 1 | Power Distribution Features | No Additional Features |
Product Weight (lb.) | 0.310 lb | Returnable | 90-Day |
Series Type | THQB | Trip Unit | Thermal Magnetic |
Voltage (V) | 120 V |
Warranty / Certifications
Certifications and Listings | ANSI Certified, CSA Listed, UL Listed | Manufacturer Warranty | One year warranty from first use |
|---|
Questions & Answers
Is this breaker rated for 2 wires?
No, this is a single-pole breaker, designed for one wire. It is not a double-pole breaker, which accommodates two wires.
Can I replace a switch that says type C115 with another type that is also rated 15 amps. GE box, replaced with a GE switch...
can I piggyback off of a 40 amp single pole breaker
No, you should not piggyback off a 40 amp single pole breaker. It is unsafe to connect two wires to a single terminal on a breaker unless the breaker is specifically designed to accept two wires (a dual-terminal breaker). Overloading a breaker can lead to overheating and potential fire hazards. It's important to consult a qualified electrician for any electrical work to ensure it's done safely and correctly.
What is the minimum wire size I can run on a GE THQP 40 amp breaker? The run is ten feet long to receptacle to charge an EV.
A 40 amp breaker requires a minimum #8 AWG copper wire. It's important to consult the National Electrical Code (NEC) and your local building codes for specific requirements for EV charging installations, as they may have additional requirements beyond the wire size. A qualified electrician can ensure your installation meets all safety and code requirements.
are these bolt on compatible ? with all GE breaker
No, it is not.
I ran out of breaker space so I want to use a single instead of a double for a dryer can I do that
Hello Patrick - Thank you for reaching out. We recommend contacting a local, certified electrician to provide guidance on the best setup for your circuit breaker. Thanks. - JB
I can't seem to find ABB breakers anywhere for purchase. Looking for a few new breakers.
Unfortunately no .....GE breakers only work with GE branded load centers and meter socket load centers. I think your best bet is to try and locate an electrical distributor in your area to find out who may stock that line.
can I replace a 15 amp breaker with 20 amp breaker
No, if a 15 amp breaker was originally installed to protect #14 AWG conductors you cannot replace that breaker with a 20 amp breaker. To do so is not only a code violation, but a fire hazard as well.
DEPENDS ON MANY CONDITIONS. USE, WIRE SIZE ETC.
Only if you increase your wire size to accommodate 20 amps.
Viewing 1-8 of 14
Customer Reviews
4.6 out of 5
Loading Recommendations
Compare Similar Items
Maximum Amperage (A) | |||
|---|---|---|---|
30 A | 15 A | 20 A | 30 A |
Breaker Type | |||
Standard | Standard | Standard | Standard |
Interruption Type | |||
Standard Trip | Standard Trip | Standard Trip | Standard Trip |
Series Type | |||
THQB | UBIF | UBIA | THQB |
Mounting Type | |||
Bolt-On | Plug-On | Plug-On | Bolt-On |
