- GE residential electrical products is now ABB
- Provides short circuit and overload protection

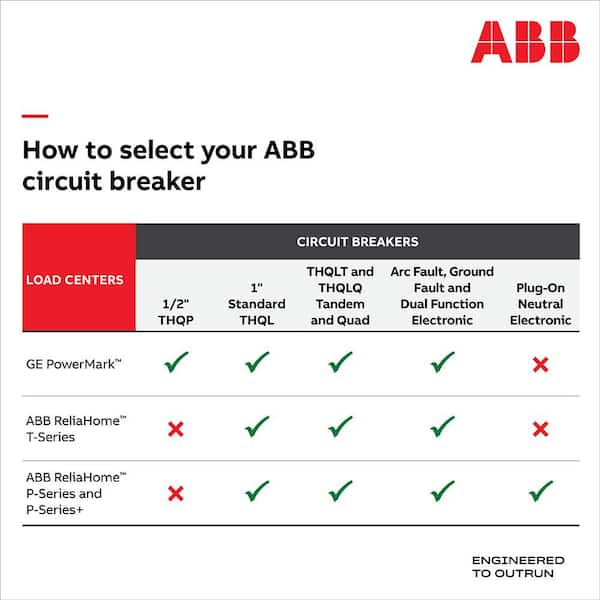

- Compatible with all ABB and GE residential panels
- View More Details
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase.
Ask about this product
Get an answer now with AI
Magic Apron Assistant is an AI virtual assistant. By proceeding, you consent to the recording and use of your information by The Home Depot (and authorized third parties). More information
Product Details
About This Product
The ABB 40 Amp 2 in. Double-Pole Circuit Breaker has tin-plated copper stabs to create reliable, permanent and corrosion-resistant connections. The unit has a dedicated calibration screw which is cemented to prevent shifting. The attached screw creates a stable calibration for optimum performance. The case is made of heat-resistant thermoset for stability and structural integrity.
Highlights
- Tin-plated copper stabs create reliable, permanent and corrosion-resistant connections
- Box type terminals
- Calibration screw is cemented to prevent shifting
- Case is made of heat-resistant thermoset for stability and structural integrity
- Trips to the center position
- Meets NEMA standards
- ANSI certified and CSA and UL listed
- Learn More About Circuit Breakers Here in our Buying Guide.
- Click here for more information on Electronic Recycling Programs
- Return Policy
Product Information
Specifications
Dimensions
Product Depth (in.) | 3 in |
|---|---|
Product Width (in.) | 2 in |
Details
AIC Rating | 10000 |
|---|---|
Breaker Type | Standard |
Connection Type | Non-Neutral |
Interruption Type | Standard Trip |
Maximum Amperage (A) | 40 A |
Mounting Type | Plug-On |
Number of Poles | Double |
Number of Spaces | 2 |
Pack Size | 1 |
Power Distribution Features | No Additional Features |
Returnable | 90-Day |
Series Type | THQL |
Trip Unit | Thermal Magnetic |
Voltage (V) | 240 V |
Warranty / Certifications
Certifications and Listings | UL Listed |
|---|---|
Manufacturer Warranty | One year warranty from first use |
Questions & Answers
Have GE 2 pole 30 amp breaker THQL will ABB BREAKER FIT
What is width of this breaker, Is it 2 inches width?
Will this fit he box
Rated HVAC. ?
What is the maximum aluminum wire size this breaker can handle?
Will this particular 125a breaker hold a 1/0 wire (aluminum)
Was ABB formerly Thomas and Bates and are they interchangeable?
Can this be used in a GE panel?
ABB is replacing GE. As long as panel states the use of THQL breakers the answer is yes. I’m running into the same thing
Viewing 1-8 of 8
Customer Reviews
4.8 out of 5
Loading Recommendations
Compare Key Features
Product Snapshot | |||
|---|---|---|---|
Built for long-lasting durability and high performance in electrical circuit protection. | Ideal for customers who want reliable circuit protection, ensuring safety and stability. | Built for long-lasting durability and high performance, ensuring reliable circuit protection. | Built for long-lasting durability and high performance in electrical protection. |
Maximum Amperage | |||
40 A | 35 A | 60 A | 20 A |
Number of Poles | |||
2 Poles | Double | Double | Double |
Trip Curve | |||
Thermal Magnetic | Thermal Magnetic | Standard Trip | Thermal Magnetic |
Interrupting Rating | |||
10000 A | 10000 AIC | 10000 AIC | 10000 AIC |
Voltage Rating | |||
240 V | 240 V | 240 V | 240 V |
Related Products
Q-Line 40 Amp 2 in. Double-Pole Circuit Breaker
The GE Q-Line 40 Amp 2 in. Double-Pole Circuit Breaker has tin-plated copper stabs to create reliable, permanent and corrosion-resistant connections. The unit has a dedicated calibration screw which is cemented to prevent shifting. The attached screw creates a stable calibration for optimum performance. The case is made of heat-resistant thermoset for stability and structural integrity.
Q-Line 40 Amp 1 in. Double Pole Circuit Breaker (THQP240)
The GE Q-Line 40 Amp 1 in. Double-Pole Circuit Breaker has a case made of heat-resistant thermoset for stability and structural integrity. The unit has tin-plated copper stabs to create reliable, permanent and corrosion-resistant connections. The circuit breaker has a dedicated calibration screw which is cemented to prevent shifting. The attached screw creates a stable calibration for optimum performance.
50 Amp 1 in. Double-Pole Circuit Breaker (THQL2150A)
The ABB 50 Amp 2 in. Double-Pole Circuit Breaker has a dedicated calibration screw which is cemented to prevent shifting. The attached screw creates a stable calibration for optimum performance. The unit has tin-plated copper stabs to create reliable, permanent and corrosion-resistant connections. The case is made of heat-resistant thermoset for stability and structural integrity.

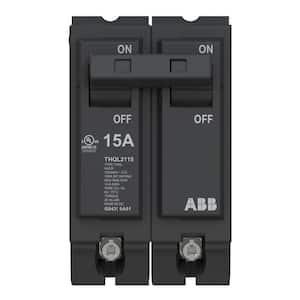

15 Amp 1 in. Double-Pole Circuit Breaker (THQL2115A)
