#1 Home Improvement Retailer

Internet #204958913

Model #95025

Store SO SKU #1005708754

2-Port Al/Cu Wire Connector (25-Pack)

$7625
/package
  • Two ports ensure lower temperature long-term durability
  • Cost-efficient solution to repair aluminum wiring systems
  • Secure mechanical connection that resists corrosion
  • View More Details

Frequently Bought Together

+
+
Price:
$7625

Product Overview

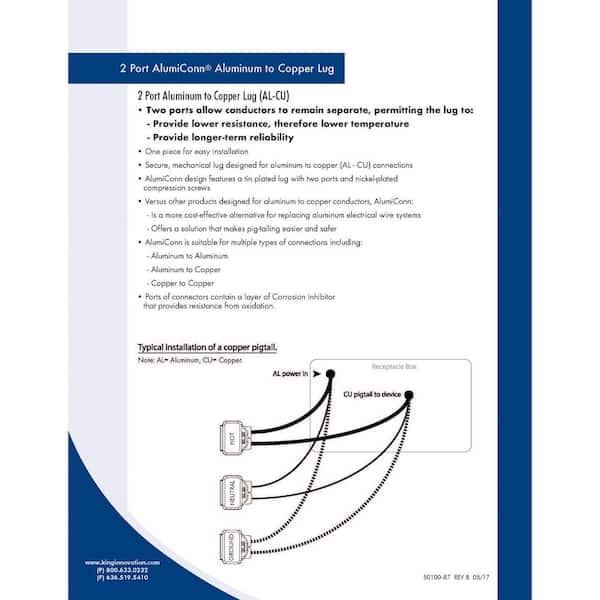

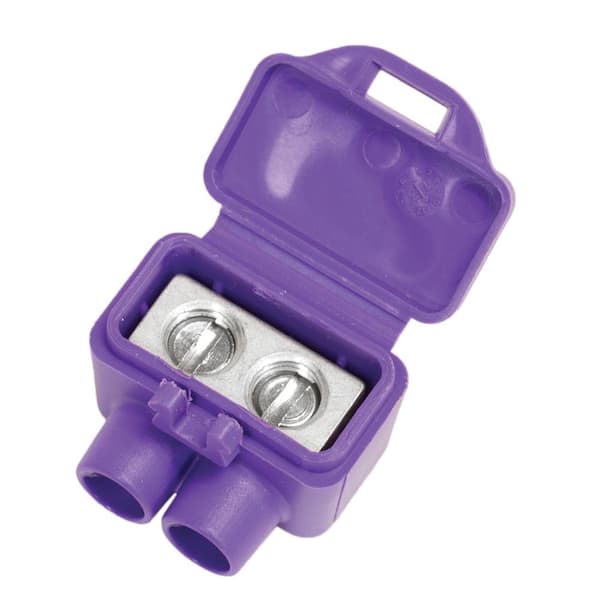

King Innovation's AlumiConn Aluminum to Copper Lug is approved by the Consumer Product Safety Commission (CPSC), UL, and numerous insurance companies as a safe method for aluminum wiring repair. AlumiConn is a lug style connector with two separate ports to eliminate intermixing of conductors. It coats aluminum wires with a thin layer of silicone sealant to provide resistance from oxidation, and uses set screws to break up surface oxides and provide a secure mechanical connection. Avoid a complete re-wire by using AlumiConn, the most cost-effective aluminum wiring repair solution available.
  • Approved by the consumer product safety committee (CPSC), UL listed, approved by insurance companies
  • Most cost-effective solution for repairing aluminum wiring systems
  • 2 ports allow conductors to remain separate, permitting the lug to run at a lower temperature and provide longer term reliability
  • Secure mechanical connection
  • Contains a layer of corrosion inhibitor that provides resistance from oxidation
  • Max Voltage 300V
  • Aluminum wire range: #12 - #10 solid AWG
  • Copper wire range: #18 - #10 solid and stranded AWG
  • UL486C Listed to meet US and Canadian standards
  • Temperature rating of insulating material: 105 degrees Celsius
  • Suitable for aluminum to aluminum, aluminum to copper and copper to copper wire splices
  • Click Here to Learn More on How to Shop Cable and Wire Connectors
  • California residents

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar Wire Connectors & Wire Terminals

KSC-4 Large Crimp Wire Connector with Heat Shrink (8-Pack)
current product
2-Port Al/Cu Wire Connector (25-Pack)
DBYN-600 Nut Wire Connector with Direct Bury Silicone Tube - Yellow (100-Pack)DBO/B-600 Gorilla Nut Wire Connector with Direct Bury Silicone Tube - Orange/Blue (100-Pack)
BrandDryConnAlumiConnDryConnDryConn
NameKSC-4 Large Crimp Wire Connector with Heat Shrink (8-Pack)2-Port Al/Cu Wire Connector (25-Pack)DBYN-600 Nut Wire Connector with Direct Bury Silicone Tube - Yellow (100-Pack)DBO/B-600 Gorilla Nut Wire Connector with Direct Bury Silicone Tube - Orange/Blue (100-Pack)
Price
$4700
/package
$7625
/package
$9995
/package
$10008
/package
Ratings
(0)
(29)
(1)
(2)
Package Quantity825100100
Electrical Product TypeWire ConnectorWire ConnectorWire ConnectorWire Connector
View ProductView ProductView ProductView Product

Specifications

Dimensions

Connector Depth (in.)
.77
Connector Height (in.)
.65
Connector Width (in.)
.91

Details

Color Family
Purple
Electrical Product Type
Wire Connector
Maximum Wire Capacity
#10 (solid AL, solid & stranded CU)
Minimum Wire Capacity
#12 (solid AL), #18 (solid & stranded CU)
Package Quantity
25
Returnable
90-Day

Warranty / Certifications

Certifications and Listings
UL Listed
Manufacturer Warranty
King Innovation products are guaranteed against faulty materials or workmanship for a period of one year from date of purchase. Contact factory for full warranty information.

Questions & Answers

Typical questions asked about products:

  • Is the product durable?
  • Is the product easy to use?
  • What are the dimensions of the product?

Customer Reviews

  • 4.8
    out of 29 reviews
  • 100% recommend this product
Filter by:
Showing 1-10 of 29 reviews
Worked well for aluminum wire remediation for insurance....
Worked well for aluminum wire remediation for insurance.
by BRANDY
    Rating provided by a verified purchaser...
    Rating provided by a verified purchaser
    by HomeDepotCustomer
    • Verified Purchase
    great product for when you are not going to re-wire
    great product for when you are not going to re-wire
    by gw
    • Verified Purchase
    • Recommended Product
    I tell you what these things made this job safe and so much easier than any other way that I look...
    I tell you what these things made this job safe and so much easier than any other way that I look into. Yes I would most Definitely recommend use these going from aluminium to copper wire
    by Booker
    • Verified Purchase
    • Recommended Product
    by Satisfied
    • Verified Purchase
    • Recommended Product
    I have used these connections before to transition from aluminum...
    I have used these connections before to transition from aluminum wire to copper wire
    by HomeDepotCustomer
    • Verified Purchase
    Rating provided by a verified purchaser...
    Rating provided by a verified purchaser
    by HomeDepotCustomer
    • Verified Purchase
    Great for houses with aluminum wiringgood quality and design...
    Great for houses with aluminum wiringgood quality and design
    by Walter
    • Verified Purchase
    These worked great! They come precoated with anti-oxidizing compound and...
    These worked great! They come precoated with anti-oxidizing compound and do not add any more. Cut back and re-strip the wire so the wire is clean and torque them as suggested. They do take more room then a wire nut so use the 2 hole where you can, Shorten the wires an inch or so will help when folding the wires back in the box. This is the proper way to remediate aluminum wiring or make a copper to aluminum splice.
    by Brett
    • Verified Purchase
    5 Star Review
    Rating provided by a verified purchaser
    by Shane
    • Verified Purchase
    Showing 1-10 of 29 reviews
