Flash Shower Rough-In Valve with PEX Inlet Elbows/Universal Outlets for Crimp Ring System
- Made of durable brass suitable for prolonged contact with water
- Features an exclusive plaster guard to prevent valve damage
- Flat back allows valve to be flush mounted for easy installation
- View More Details
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase.
Ask about this product
Get an answer now with AI
Magic Apron Assistant is an AI virtual assistant. By proceeding, you consent to the recording and use of your information by The Home Depot (and authorized third parties). More information
Product Details
About This Product
Designed for fast and efficient installation, the Flash Shower Rough-in Valve provides flexibility for every situation. The Rough-in Valve features a flat back and compact body to ensure a secure and simplified install process that can accommodate smaller spaces. A flush plug is included, which allows both Hot & Cold to be flushed simultaneously for quicker installation and less downtime. Stainless steel fixation ring, with sure-grip flats, keeps flush plug and cartridge in place without screws. Cartridge sold separately.

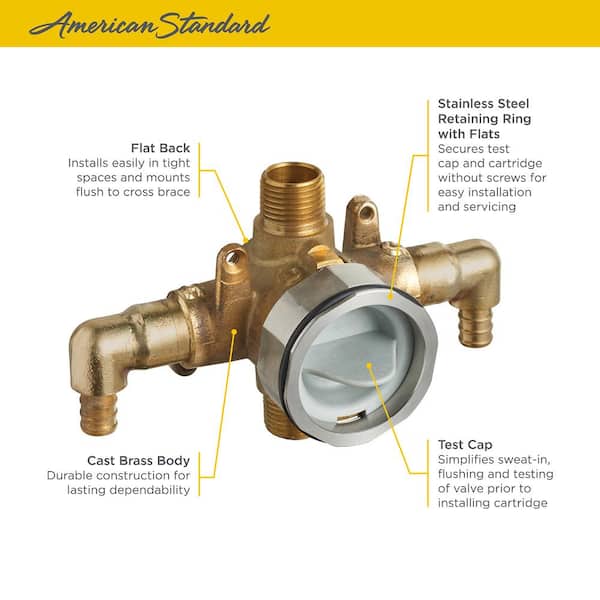

Highlights
- Flush Plug: Eliminates the need to remove cartridge during installation and allows installer to flush the lines without cross flow.
- Stainless Steel Retaining Ring with Flats: Secures flush plug/ cartridge in place and eliminates need for screws. Flats make it simple to loosen ring for quick, easy insertion/removal of flush plug/cartridge.
- Flat Back: Allows valve to be mounted flush against cross brace for easy and solid installation
- Cast DZR Brass Valve Body: Resists corrosion due to high chloride and pH levels in water
- Exclusive Plaster Guard: Plaster guard is designed to protect valve and act as a guide during installation. It can serve as mounting support for thin-wall installations.
- Wide Rough-in Range: From 1-3/4" to 2-3/4" from finished wall to the back of the valve.
- Cartridge Ships with Trim
- Click here to shop more American Standard products
- Return Policy
Product Information
Specifications
Dimensions
Inlet Diameter (In.) | 1/2 |
|---|---|
Outlet Diameter (In.) | 1/2 |
Details
Application | Rough-In valve |
|---|---|
Compatible Pipe Material | Copper |
Connection | Barb |
Features | Adjustable |
Indoor/Outdoor | Indoor |
Material | Brass |
Maximum Pressure (PSI) | 100 PSI |
Maximum Working Temperature (F) | 160 |
Pack Size | 1 |
Returnable | 90-Day |
Warranty / Certifications
Manufacturer Warranty | Limited Lifetime Warranty |
|---|
Questions & Answers
What size are the male adapter?
Hello Geoo, Thank you for reaching out to American Standard. The inlets are 1/2" on this valve. If you have any further questions, please reach out to us using the Contact Us form or Chat option on our website, and an American Standard Consumer Connection Advisor will be happy to assist you. We are available Monday - Friday between 8AM - 7PM ET. Sincerely, Your American Standard Consumer Connection Team (americanstandard-us.com/contact-us)
I purchased American Standard Spectra Matte Black 11-in Built-In Shower Faucet System Can I use rough in valve Ru107E with above item? It’s for a shower I don’t need for tub spout.
Hello Joseph, Thank you for reaching out to American Standard. Yes, you can. If you have any further questions, please reach out to us using the Contact Us form or Chat option on our website, and an American Standard Consumer Connection Advisor will be happy to assist you. We are available Monday - Friday between 8AM - 7PM ET. Sincerely, Your American Standard Consumer Connection Team (americanstandard-us.com/contact-us)
Will this work with this trim kit and cartridge?
Hello Buddy, Thank you for reaching out to American Standard. The RU107E valve will work with an TU Double Ceramic Pressure Balance trim kit, as well as older trim kits that used the R110 valve. If you have further questions, reach out to us using the Contact Us form or Chat option on our website, and an American Standard Consumer Connection Advisor will be happy to assist you. We are available Monday - Friday between 8AM - 7PM ET. Sincerely, Your American Standard Consumer Connection Team (americanstandard-us.com/contact-us)
Does this accommodate a cartridge with an integrated diverter
Hello Scott, Thank you for reaching out to American Standard. No, it would not. If you have any questions, please reach out to us using the Contact Us form or Chat option on our website, and an American Standard Consumer Connection Advisor will be happy to assist you. We are available Monday - Friday between 8AM - 7PM ET. Sincerely, Your American Standard Consumer Connection Team (americanstandard-us.com/contact-us)
What if anything do I need to do when double drywalling and tiling the wall this is going into?
Hello Josh, Thank you for reaching out to American Standard. The rough valve will come with a plaster guard that you would during the installation. There is a thin wall side of the plaster guard and the other side is for an installation like yours. The guard will stay on until the wall and tile are up and then it is removed, and it will show you where the valve needs to be roughed in at so that you can attach your handle. If you have further questions, please reach out to us using the Contact Us form or Chat option on our website, and an American Standard Consumer Connection Advisor will be happy to assist you. We are available Monday - Friday between 8AM - 7PM ET. Sincerely, Your American Standard Consumer Connection Team (americanstandard-us.com/contact-us)
What is the cartridge number for this
Hello Hillsideman, The cartridge for this valve is provided with the corresponding trim kits. It is part number M970654-0070A. Sincerely, Your American Standard Consumer Connection Team
Are these Pex A 1/2? connections?
Hello Mike, Thank you for reaching out to American Standard. Yes, they are. If you have any questions, please reach out to us using the Contact Us form or Chat option on our website, and an American Standard Consumer Connection Advisor will be happy to assist you. We are available Monday - Friday between 8AM - 7PM ET. Sincerely, Your American Standard Consumer Connection Team (americanstandard-us.com/contact-us)
I am using as a shower only. How do I plug the spigot that goes to the tub?
Hello Tina, Thank you for reaching out to American Standard. You can cap off the tub inlet if you only want to use the shower inlet. If you have any questions, please reach out to us using the Contact Us form or Chat option on our website, and an American Standard Consumer Connection Advisor will be happy to assist you. We are available Monday - Friday between 8AM - 7PM ET. Sincerely, Your American Standard Consumer Connection Team (americanstandard-us.com/contact-us)
