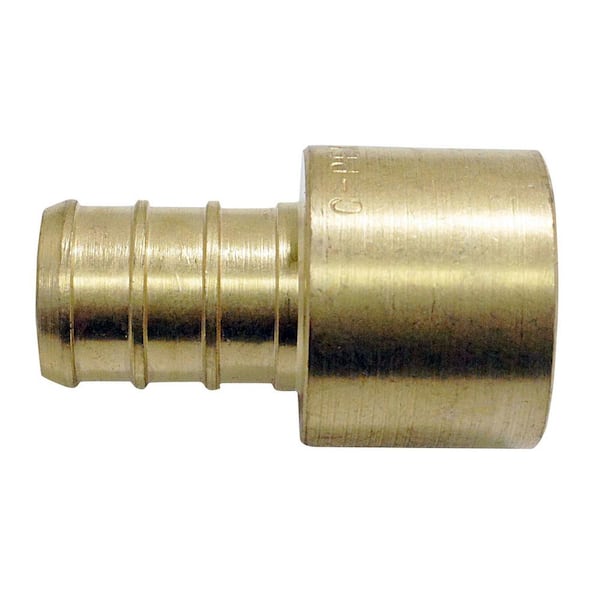

1/2 in. Brass PEX-B Barb x 1/2 in. Female Copper Sweat Adapter

$3.12
  • Constructed of lead free dezincification resistant (DZR) brass
  • Compatible with PEX pipe
  • Backed by a 25-year limited warranty
  • View More Details
Store
0 in stock
icon
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase. Read Return Policy
Product Details

About This Product

The ApolloPEX 1/2 in. Brass PEX Barb x 1/2 in. Female Copper Sweat Adapter is simple to install and is designed as an economical solution for the transtion from copper tubing to PEX tubing. ApolloPEX barb fittings are a key component of the most economical potable water piping systems. Also capable of integration into hydronic heating systems, ApolloPEX sweat adapters can be secured into place using copper crimps, stainless steel pinch clamps or stainless steel crimp sleeves (all sold separately). The ApolloPEX system is a comprehensive piping system comprised of brass fittings, poly alloy fittings, manifolds, valves, fasteners, tools and tubing designed for implementation in water delivery systems, simple or complex.

Highlights

  • Constructed of lead free dezincification resistant (DZR) brass for superior reliability and strength
  • Most economical piping system available
  • Compatible with PEX pipe
  • Meets UPC, IPC and cUPC standard

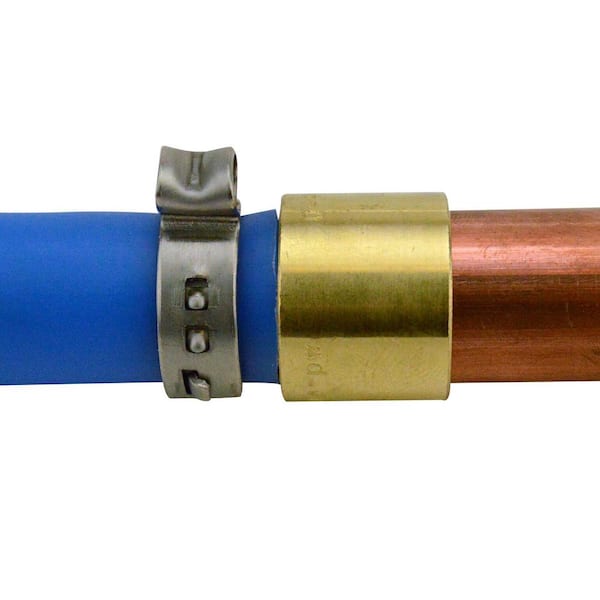

  • Can be secured in place using copper crimps, stainless steel pinch clamps or stainless steel crimp sleeves
  • NSF listed
  • Barb x female copper sweat connection for PEX plumbing systems
  • Rated to 200F and 200 psi
  • Return Policy
  • California residents
     see Prop 65 WARNINGS

Product Information

Internet # 301541045

Model # APXFS1212

Store SKU # 274098

Store SO SKU #1002404935

Specifications

Dimensions

Double Fitting Size

1/2" x 1/2"

Fitting 1 size

1/2"

Fitting 2 size

1/2"

Fitting Size Dimensions

1/2" x 1/2"

Product Length (in.)

0.7 in

Single Fitting Size

1/2"

Details

Application

Potable Water

Color Family

Brass

Color/Finish

Brass

Compatible Pipe Material

PEX

Connection 1

Barb

Connection 2

Sweat

Connectivity

Barb

Features

Corrosion Resistant, Lead Free

Fitting or Connector Type

Adapter

Fitting/ Connector Collection

PEX

Material

Brass

Maximum working pressure (psi)

200

Maximum Working Temperature (F)

200

Pack Size

1

PEX Fitting Type

Crimp

PEX Type

B

Pipe or Fitting Product Type

Fittings & Connectors

Product Weight (lb.)

0.073 lb

Reducing Fitting

No

Returnable

90-Day

Warranty / Certifications

Manufacturer Warranty

25 years: For exclusive use with:PEX - ASTM F876/CSA B137.5Copper Crimp Rings - ASTM F1807Stainless Steel Pinch Clamps & Sleeves - ASTM F2098

Questions & Answers

3Questions
caret
Q:Will this fitting (pex) work with black plastic PE3408 Extruder 1" water line
by|Mar 3, 2022
1 Answer
Answer This Question

A:  No, it will not. This fitting is rated for use with PEX and copper pipe only.

by|Mar 4, 2022
    caret
    Q:Are these products recomended for glycol heating system?
    by|Dec 18, 2020
    1 Answer
    Answer This Question

    A:  Yes. Should you have any additional questions, please reach out to us directly at 1.888.229.2874 and we will be glad to assist you further. Good luck with your project!

    by|Apr 15, 2021
      caret
      Q:Why is that after, I properly clean and prep this connector it will not sweat to a 1/@ copper tubing? Are we dealing with a defected material?
      by|May 27, 2020
      4 Answers
      Answer This Question

      A:  I used a 1/2" and had no issue. As long as both ends prepared & fluxed and zero water is present shouldn't be a problem.

      by|Mar 7, 2021

      A:  I had same problem with several connectors. I finally got a great solder joint after (1) thoroughly roughing-up and cleaning the inside of the connector and (2) using Oatey tinning flux instead of non-tinned flux. I don't know which was more important.

      by|Nov 26, 2023

        A:  Hello. Try using Oatey #95 flux and a small spool of silver solder. This flux is petroleum based instead of water based. Other folks had the same problem trying to solder these but were unsuccessful until they switched to a different flux. Also, hold your heat there a bit longer. Hope this helps.

        by|Nov 30, 2021
          1 found this answer helpful

          A:  We apologize for the experience you have had while using the Apollo 1/2 in. Brass PEX Barb x 1/2 in. Female Copper Sweat Adapter. We would like to get more info from you about this fitting, as well as send you some replacements. Please give us a call at 888-229-2874, and ask for Ben.

          by|Jun 1, 2020
            Showing 1-3 of 3

            Customer Reviews

            4.7 out of 5

            • 4.7 out of 86 reviews
            • 70% recommend this product
            Filter by:
            Showing 1-10 of 86 reviews
            Garbage!!
            I had purchased a couple of these because there weren't any similar Sharkbite brand fittings. So I was doing the usual prep work on all the copper pieces, getting ready to sweat the supply pipes for a small bathroom. These are going to the vanity. I picked up the Apollo fitting, and was getting ready to burnish and flux the inside, looked in and saw what you can see in the image. In the milling process, Apollo has left a rough edge to the inlet port. Not only rough, but a sliver is still hanging there. I've removed it in the 2nd picture. The final picture is of the same fitting but of Sharkbite brand. Look at the vast difference. In the Sharkbite, there were no left over slivers from milling. In fact, Sharkbite has taken extra pains to add a bevel to the inlet. Nice. And the brass is a better quality too. The rougher the inside of pipes and fittings, the more turbulence, the more noise, and the greater the wear. I'm returning these to exchange for Sharkbite.
            by
              5 found this review helpful
              Used this to adapt a 3/4 sillcock to PEX crimp tube. Sand, solder, let it cool, crimp, and good ...
              Used this to adapt a 3/4 sillcock to PEX crimp tube. Sand, solder, let it cool, crimp, and good to go. Available in quantity of one so I didn't have to buy more parts than I will ever use.
              by
              • DIY
              • Verified Purchase
              • Recommended
              1 found this review helpful
              by
              • Verified Purchase
              by
              • Verified Purchase
              Had to return because I had to switch to Sharkbite with my leaking water valve;-)
              by
              • Verified Purchase
              Primera ves en usarlos super simple y la continuacion a PEX super.
              by
              • Verified Purchase
              • Verified Purchase
              by
              • Verified Purchase
              Good quality and price.
              by
              • Verified Purchase
              • Verified Purchase
              Showing 1-10 of 86 reviews
