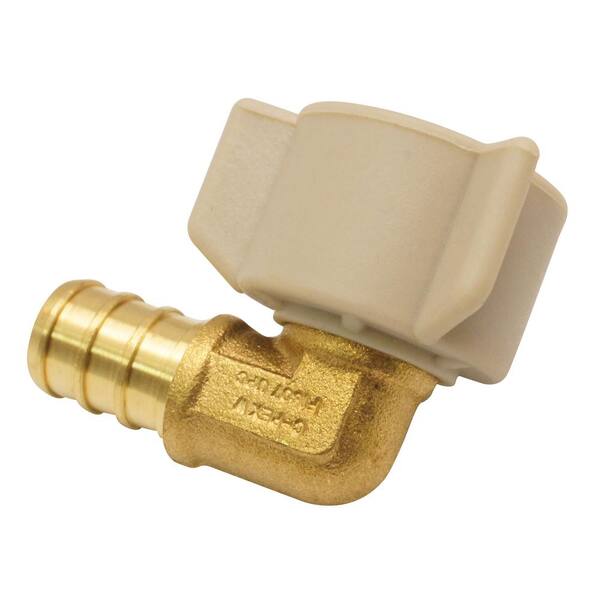

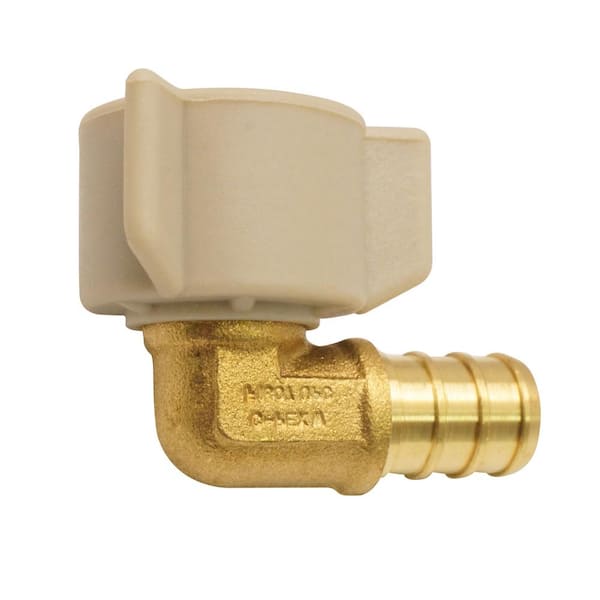

1/2 in. Brass PEX-B Barb x 1/2 in. Female Swivel 90-Degree Elbow

$5.22
  • Constructed of lead free dezincification resistant (DZR) brass
  • Compatible with PEX pipe
  • Backed by a 25-year limited warranty
  • View More Details
Store
0 in stock
icon
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase. Read Return Policy

Product Details

About This Product

The ApolloPEX 1/2 in. Brass PEX Barb x 1/2 in. Female Swivel 90 degree Elbow is simple to install. ApolloPEX barb fittings are a key component of the most economical potable water piping systems. Also capable of integration into hydronic heating systems, ApolloPEX elbows can be secured into place using copper crimps, stainless steel pinch clamps or stainless steel crimp sleeves (all sold separately). The ApolloPEX system is a comprehensive piping system comprised of brass fittings, poly alloy fittings, manifolds, valves, fasteners, tools and tubing designed for implementation in water delivery systems, simple or complex.

Highlights

  • Constructed of lead free dezincification resistant (DZR) brass for superior reliability and strength
  • Most economical piping system available
  • Compatible with PEX pipe
  • Meets UPC, IPC and cUPC standard
  • Can be secured in place using copper crimps, stainless steel pinch clamps or stainless steel crimp sleeves
  • NSF listed
  • Barb x FNPT connection for PEX plumbing systems
  • Rated to 200 degree F and 200 psi
  • Return Policy
  • California residents
     see Prop 65 WARNINGS

Product Information

Internet # 301541107

Model # APXFAE1212

Store SKU # 262190

Store SO SKU #1002404987

Specifications

Dimensions: H 1.3 in, W 1.3 in, D 1.3 in

Dimensions

Double Fitting Size

1/2" x 1/2"

Fitting 1 size

1/2"

Fitting 2 size

1/2"

Fitting Size Dimensions

1/2" x 1/2"

Product Depth (in.)

1.3 in

Product Height (in.)

1.3 in

Product Width (in.)

1.3 in

Single Fitting Size

1/2"

Details

Application

Potable Water

Bend Degree

90 Degree

Color Family

Brass

Color/Finish

Brass

Compatible Pipe Material

PEX

Connection 1

Barb

Connection 2

FPT

Connectivity

Barb

Features

Corrosion Resistant, Lead Free, Removable

Fitting or Connector Type

Elbow

Fitting/ Connector Collection

PEX

Material

Brass

Maximum working pressure (psi)

200

Maximum Working Temperature (F)

200

Pack Size

1

PEX Fitting Type

Crimp

PEX Type

B

Pipe or Fitting Product Type

Fittings & Connectors

Product Weight (lb.)

0.066 lb

Reducing Fitting

No

Returnable

90-Day

Warranty / Certifications

Manufacturer Warranty

25 Years: For exclusive use with:PEX - ASTM F876/CSA B137.5Copper Crimp Rings - ASTM F1807Stainless Steel Pinch Clamps & Sleeves - ASTM F2098

Questions & Answers

13Questions
caret
Q:Does the elbow swivel once the part is tightened?
by|Apr 2, 2023
2 Answers
Answer This Question

A:  It does not.

by|Apr 5, 2023

    A:  Yes, the elbow will swivel once the plastic nut is tightened. For further questions, please give us a call at 888-229-2874.

    by|Apr 3, 2023
      caret
      Q:Can you attach this directly to a shower mix valve?
      by|Feb 6, 2023
      1 Answer
      Answer This Question

      A:  If your shower mixing valve has a 1/2 " MPT connection, then yes, the Apollo 1/2 in. Brass PEX-B Barb x 1/2 in. Female Swivel 90-Degree Elbow may be attached.

      by|Feb 6, 2023
        caret
        Q:Can the 90 degree 1/2? swivel elbow be used to attach pecans water line to inlet on commode tank?
        by|Jan 9, 2023
        1 Answer
        Answer This Question

        A:  Yes, the 1/2 in. FPT swivel will fit on the tanks inlet.

        by|Feb 10, 2023
          caret
          Q:We put in a new water line which created far more water pressure now and the lines to the showers keep blowing off, can I replace the plastic elbows with the brass now since they do have a higher psi than the plastic?
          by|Aug 13, 2022
          1 Answer
          Answer This Question

          A:  Our brass and plastic fittings are manufactured to the same spec and standard in regard to working pressure ratings. The water pressure issue you are experiencing may be because of a faulty PRV, or no PRV, within your application. For further questions, please give us a call at 888-229-2874.

          by|Aug 16, 2022
            Showing 1-4 of 13

            Customer Reviews

            4.2 out of 5

            • 4.2 out of 96 reviews
            • 64% recommend this product
            Filter by:
            Showing 1-10 of 96 reviews
            Rapid Unscheduled Disassembly
            Being new to PEX work I loaded up on Apollo tools and materials. Everything has worked fine, except for this Apollo Brass PEX-B Barb x 1/2 in Female Swivel 90-Degree Elbow. I installed it per the directions, hand-tightening, and a 1/4 turn with a wrench. I did a hand-twist confirmation on all the connections. That was when this item literally fell apart in my hand (see image). I spliced in the 29-year-old fitting I'd removed, which worked.
            by
              Do not use a wrench to tighten. Hand tighten only.
              I followed the recommendation of the Apollo sales rep in the Q&A section by hand tightening and then tighten an additional 1/4 to 1/2 turn with a wrench. The white plastic portion broke and separated from the brass fitting with just a slight amount of pressure past hand tight. Just hand tighten firmly. I recommend using teflon tape and/or pipe putty as well.
              by
                • Recommended
                2 found this review helpful
                Needed a 90 degree elbow to mate to a shower valve, MPT to PEX. This was all that was available at HD. I was impressed with the quality of the seal at the twist-end of the fitting - very pliable and seals very well.
                by
                • Verified Purchase
                Worked perfectly for what I needed it too.
                by
                • Verified Purchase
                by
                • Verified Purchase
                by
                • Verified Purchase
                GREAT! No soldering, Easy install, pressure tested and works flawlessly.
                by
                • Verified Purchase
                Works as it should. I woul like to see this type with a straight barb as well
                by
                • Verified Purchase
                by
                • Verified Purchase
                by
                • Verified Purchase
                Showing 1-10 of 96 reviews
