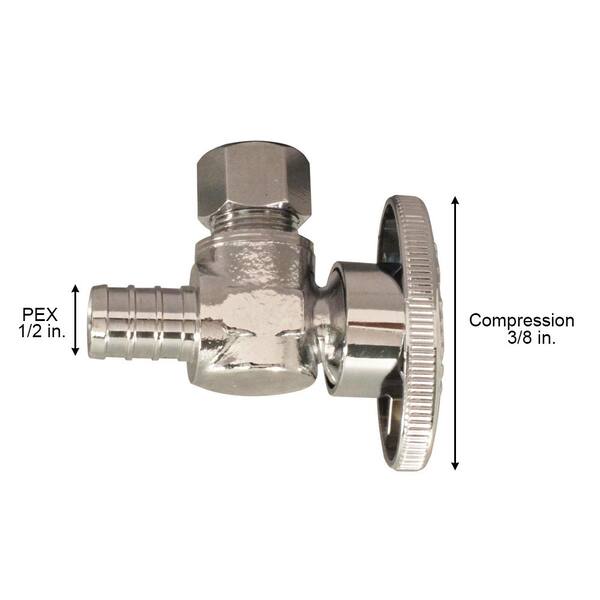

1/2 in. Chrome-Plated Brass PEX-B Barb x 3/8 in. Compression Quarter-Turn Angle Stop Valve Pro Pack (6-Pack)

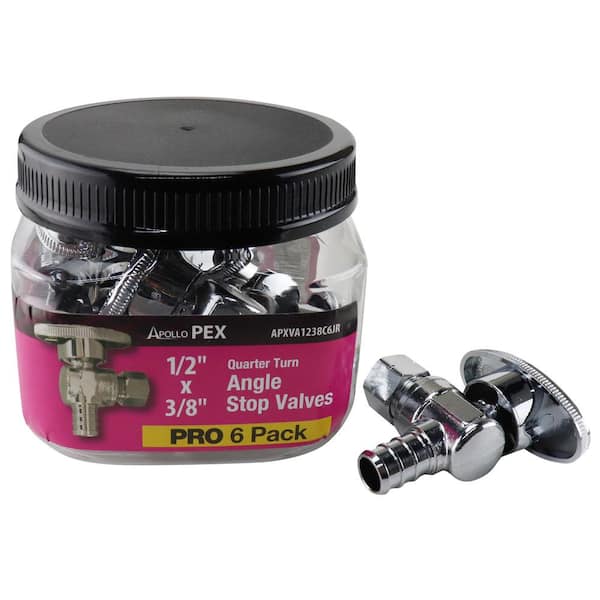

- Pro pack includes 6 valves in a convenient resealable jar
- Quarter-turn, single lever flow control
- Chrome plated brass ball
- View More Details
Product Details
About This Product
The ApolloPEX 1/2 in. Chrome-Plated Brass PEX Barb x 3/8 in. Compression Quarter-Turn Angle Stop Valve is simple to install and provides flow control through a quarter-turn ball valve. Most commonly used at point of use fixtures, it allows for repair and maintenance of fixtures without the need to shut down flow control to the entire system. The 3/8 in. compression outlet provides the capability to install 3/8 in. O.D. tubing or 3/8 in. supply lines. It is designed for use on point of use fixtures such as dishwashers, toilets and faucets. ApolloPEX barb fittings are a key component of the most economical potable water piping systems. Also capable of integration into hydronic heating systems, ApolloPEX valves can be secured into place using copper crimps, stainless steel pinch clamps or stainless steel crimp sleeves (all sold separately). The ApolloPEX system is a comprehensive piping system comprised of brass fittings, poly alloy fittings, manifolds, valves, fasteners, tools and tubing designed for implementation in water delivery systems, simple or complex.
Highlights
- Constructed of chrome-plated lead free dezincification resistant (DZR) brass for superior reliability and strength
- Most economical piping system available
- Compatible with PEX pipe
- Meets UPC, IPC and cUPC standard
- Can secured in place using copper crimps, stainless steel pinch clamps or stainless steel crimp sleeves
- NSF listed
- Barb x compression connection for PEX plumbing systems
- Maximum working pressure of 200 psi and maximum temperature of 200 degree F
- Return Policy
- California residentssee Prop 65 WARNINGS
Product Information
Specifications
Dimensions: H 2 in, W 7 in, D 2 in
Dimensions
Inlet Diameter (In.) | 1/2 | Inlet Size | 1/2 In. |
|---|---|---|---|
Outlet Diameter (In.) | 3/8 | Product Depth (in.) | 2 in |
Product Height (in.) | 2 in | Product Length (in.) | 2 in |
Product Width (in.) | 7 in | Valve Inlet Diameter (in.) | 1/2 |
Details
Application | Potable Water | Color/Finish | Chrome |
|---|---|---|---|
Color/Finish Family | Chrome | Compatible Pipe Material | PEX |
Compatible Product | Faucet, Ice Maker, Other, Refridgerator, Toilet | Connection | Barb x Comp |
Features | Corrosion Resistant, Lead Free, Quarter Turn, Removable | Indoor/Outdoor | Indoor |
Inlet Fitting End Type | PEX | Material | Brass |
Maximum Pressure (PSI) | 200 PSI | Maximum Working Temperature (F) | 200 |
Outlet Fitting End Type | Compression | Pack Size | 6 |
Product Weight (lb.) | 0.161 lb | Returnable | 90-Day |
Stop Valve Type | Angle | Valve Configuration | Angle |
Valve Connection | Clamp/Crimp | Valve Type | Stop |
Warranty / Certifications
Manufacturer Warranty | 5 Years: Must be installed per published installation instructions. |
|---|
Questions & Answers
Customer Reviews
4.8 out of 5
Compare Similar Items
Connection | |||
|---|---|---|---|
Barb x Comp | Barb x Comp | PTC x Comp | Barb x Comp |
Material | |||
Brass | Brass | Brass | Brass |
Inlet Diameter (In.) | |||
1/2 | 1/2 | 1/2 | 1/2 |
Outlet Diameter (In.) | |||
3/8 | 3/8 | 1/4 | 3/8 |
Compatible Pipe Material | |||
PEX | PEX | Multi-Purpose | PEX |
