Product Details
About This Product

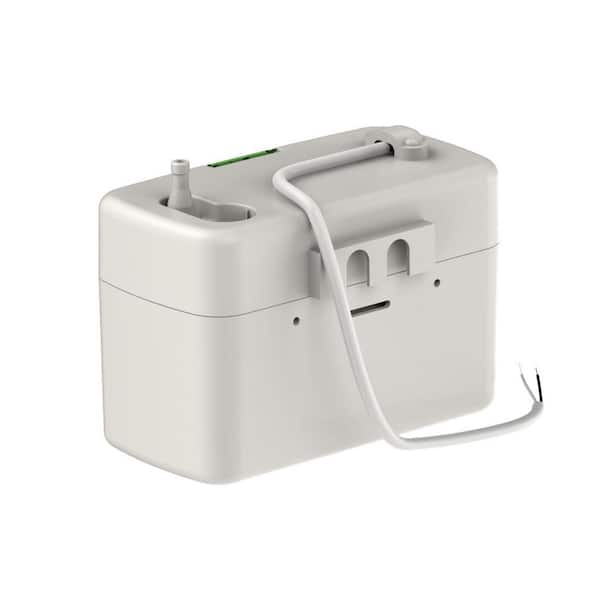

The BHI 1/250HP 100~240-Volt Condensate Removal Pump is an ideal product for Ductless Mini Split Air Conditioner with high-efficiency. This pump features a 33 ft. shutoff head and provides a maximum discharge and This vertical pump unit has Non-Detachable check valve, overcurrent-protection and just easy for installation.
Highlights
- BHI 1/250 HP 100-Volt to 240-Volt plastic condensate removal pump
- ABS tank, motor cover and volute
- 200 ml tank capacity
- Non-detachable check valve
- Overcurrent protection
- Ambient temperature: 0°C to 50°C (32°F to 122°F)
- Cord length: 2.3 ft.
- Maximum discharge head: up to 10 m (33 ft.)
- Super quiet
- Non-vibration
- Buckle design for easy-installation
- 2 inlets option for top or side
- ETL-approved
- Click here for more information on Electronic Recycling Programs
- Return Policy
Product Information
Specifications
Dimensions: H 4.63 in, W 6.06 in, D 3.38 in
Dimensions
Product Depth (in.) | 3.38 in |
|---|---|
Product Height (in.) | 4.63 in |
Product Width (in.) | 6.06 in |
Details
Amperage (A) | 0.07 A |
|---|---|
Cord Length (ft.) | 2.3 ft |
Features | Portable, Run-Dry Capable, Self-Priming |
Housing Material | Thermoplastic |
Impeller Material | Not Applicable |
Included | Mounting Bracket |
Inlet Connection | Plain end |
Maximum Discharge Flow (gallons/hour) | 6.34 |
Maximum Discharge Pressure (psi) | 14.5 |
Maximum Horsepower (hp) | 0 |
Outlet Connection | Plain end |
Product Weight (lb.) | 1.04 lb |
Returnable | 7-Day |
Tank Capacity (gallons) | 0.04 gal (US) |
Vertical Lift (ft.) | 32.8 |
Voltage | 100v, 240v |
Warranty / Certifications
Certifications and Listings | ETL Listed |
|---|---|
Manufacturer Warranty | Limited 1-Year Warranty |
