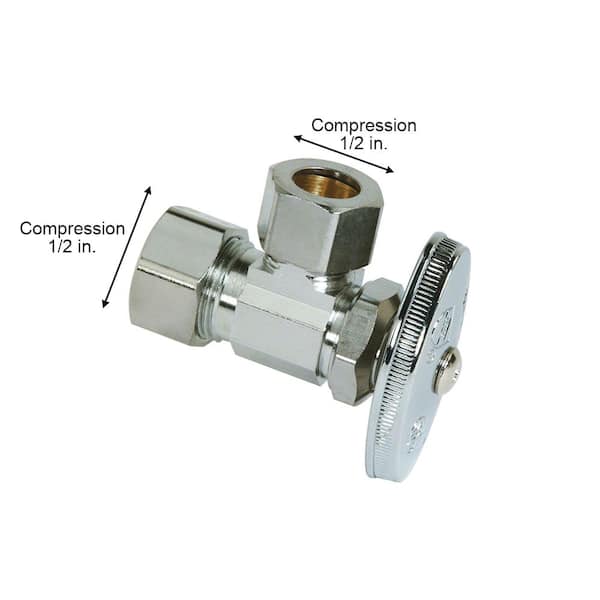

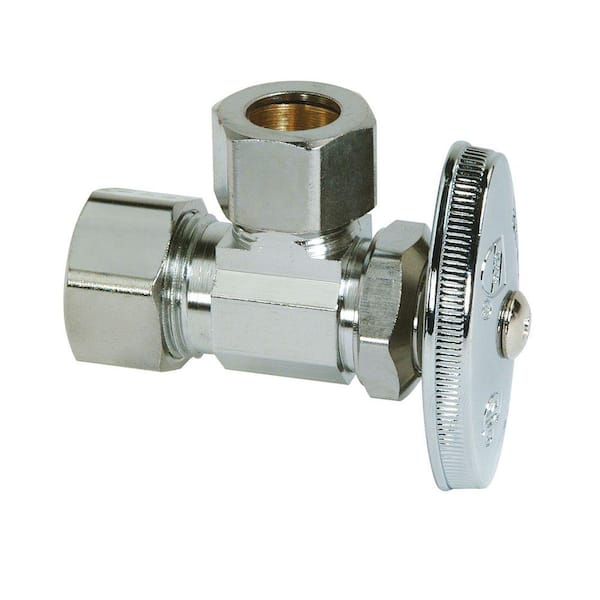

1/2 in. Compression Inlet x 1/2 in. Compression Outlet Multi-Turn Angle Valve
- Angle valve compatible with copper or PEX
- Machined 1-piece body for strength & long lasting performance
- Easy use, water flow control with only a few turns of the key
- See More Details
Frequently Bought Together
Price:
Product Overview
BrassCraft 1/2 in. Nominal Compression Inlet x 1/2 in. O.D. Compression Outlet Multi-Turn Angle Valve controls water flow to household plumbing fixtures - faucets, toilets, dishwashers, icemakers, washing machines, etc. The angle valve is most often used where the water pipe enters the room from the floor. With a few turns of the valve handle, you are able to stop the flow of water leading to the plumbing fixture, allowing for maintenance and repair without turning off water to the entire home.
- Compatible with copper or PEX (PEX installations require a stainless steel tube insert)
- Machined, 1-piece body construction for strength, durability and long-lasting performance
- Easy-to-remove handle protects against accidental operation during rough-ins
- Multi-turn operation means water flow control with only a few turns of the handle
- Oval-knurled handle provides a secure grip for on/off operation
- Chrome-plated brass
- Temperature rating: 40° to 140°F
- Pressure rating: 125 psi maximum
- No-lead certified
- IAPMO and CSA listed to ASME A112.18.1/CSA B125.1
Info & Guides
Product Overview
- Angle valve compatible with copper or PEX
- Machined 1-piece body for strength & long lasting performance
- Easy use, water flow control with only a few turns of the key
Compare Similar Supply Stop Valves
 |  | |  | |
| Brand | BrassCraft | SharkBite | BrassCraft | SharkBite |
| Name | 1/2 in. Sweat Inlet x 3/8 in. Compression Outlet 1/4-Turn Angle Ball Valve | 1/2 in. Push-to-Connect x 1/4 in. O.D. Compression Chrome-Plated Brass Quarter-Turn Angle Stop Valve | 1/2 in. Compression Inlet x 1/2 in. Compression Outlet Multi-Turn Angle Valve | Click Seal 1/2 in. x 7/8 in. x 12 in. Push-to-Connect Angle Stop Toilet Connector |
| Price | ||||
| Ratings | (93) | (136) | (58) | (125) |
| Connection | Sweat x Comp | PTC x Comp | Comp x Comp | PTC |
| Material | Brass | Brass | Brass | Brass |
| Indoor/Outdoor | Indoor,Outdoor | Indoor | Indoor,Outdoor | Indoor |
| Inlet Diameter (In.) | 1/2 | 1/2 | 1/2 | 3/4 |
| Application | Potable Water | Potable Water | Potable Water | Potable Water |
| Inlet Fitting End Type | Sweat | Push to Connect | Compression | Push to Connect |
| Valve Configuration | Angle | Angle | Angle | Angle |
| View Product | View Product | View Product | View Product |
Compare Similar Supply Stop Valves
| | | | |
| Brand | BrassCraft | SharkBite | BrassCraft | SharkBite |
| Name | 1/2 in. Sweat Inlet x 3/8 in. Compression Outlet 1/4-Turn Angle Ball Valve | 1/2 in. Push-to-Connect x 1/4 in. O.D. Compression Chrome-Plated Brass Quarter-Turn Angle Stop Valve | 1/2 in. Compression Inlet x 1/2 in. Compression Outlet Multi-Turn Angle Valve | Click Seal 1/2 in. x 7/8 in. x 12 in. Push-to-Connect Angle Stop Toilet Connector |
| Price | ||||
| Ratings | (93) | (136) | (58) | (125) |
| Connection | ||||
| Material | ||||
| Indoor/Outdoor | ||||
| Inlet Diameter (In.) | ||||
| Application | ||||
| Inlet Fitting End Type | ||||
| Valve Configuration | ||||
| View Product | View Product | View Product | View Product |
Key Features
Specifications
Dimensions
Inlet Diameter (In.)
1/2
Inlet Size
1/2 In.
Outlet Diameter (In.)
1/2
Product Depth (in.)
1.19 in
Product Height (in.)
2.75
Product Length (in.)
2.75 in
Product Width (in.)
2.25
Valve Inlet Diameter (in.)
1/2
Details
Application
Potable Water
Color/Finish
Chrome
Color/Finish Family
Brass
Compatible Pipe Material
Copper
Compatible Product
Faucet,Ice Maker,Other,Refridgerator,Washing Machine
Connection
Comp x Comp
Features
Lead Free
Indoor/Outdoor
Indoor,Outdoor
Inlet Fitting End Type
Compression
Material
Brass
Maximum Pressure (psi)
125
Maximum Working Temperature (F)
140
Outlet Fitting End Type
Compression
Pack Size
1
Product Weight (lb.)
.24137
Returnable
90-Day
Stop Valve Type
Angle
Valve Configuration
Angle
Valve Connection
Compression
Valve Type
Stop
Warranty / Certifications
Manufacturer Warranty
Limited Manufacturer Warranty
Questions & Answers
2Questions5Answers
What are the TPI (threads per inch) on the inlet and outlet connections?
Asked by jerry September 10, 20201
AnswerHello Jerry, There are approx 5 threads on the inlet side and it's less than 1/2" and approx 4 threads on the outlet side which is about a 1/4". If you have any further questions, please call 877-272-7755 and Customer Support Rep will assist you. Thank you, BrassCraft
Will this valve work with an inlet pipe that comes up through the floor as opposed to one extended from the wall?
Asked by Less43 September 24, 20164
AnswersYes, make sure it is the same size replacement
Customer Reviews
Apr 2, 2021
Rating provided by a verified purchaser...
Rating provided by a verified purchaser
by HomeDepotCustomer
Response from BrassCraft MfgApr 3, 2021
Thank you for your review and choosing our product. We hope our multi-turn angle valve is working well for you and look forward to you choosing BrassCraft products in the future!
Apr 1, 2021
I had used one of these previously on a remodeled...
I had used one of these previously on a remodeled bathroom for copper pipe for toilet water. It has worked for 15 years, so when 2nd bathroom toilet was replaced I went ahead and replaced the original shutoff valve with the same one used before. I know it works at least 15+ years. It is easy to install on copper pipe and it had everything needed, no additional parts required to attach a threaded new line or another copper line., Its simple, looks great and works perfect even with City water.
by BIGDOG
Jan 14, 2021
The Part was decent valve but made cheap...
The Part was decent valve but made cheap
by CRT
Response from BrassCraft MfgJan 18, 2021
Hello CRT -
Thank you for your review. If you have any questions on our products or need assistance in selection, please contact one of our Customer Support Representatives at 877-272-7755.
Thank you for your review. If you have any questions on our products or need assistance in selection, please contact one of our Customer Support Representatives at 877-272-7755.
