Model #OCR14X C1

Store SKU #249699

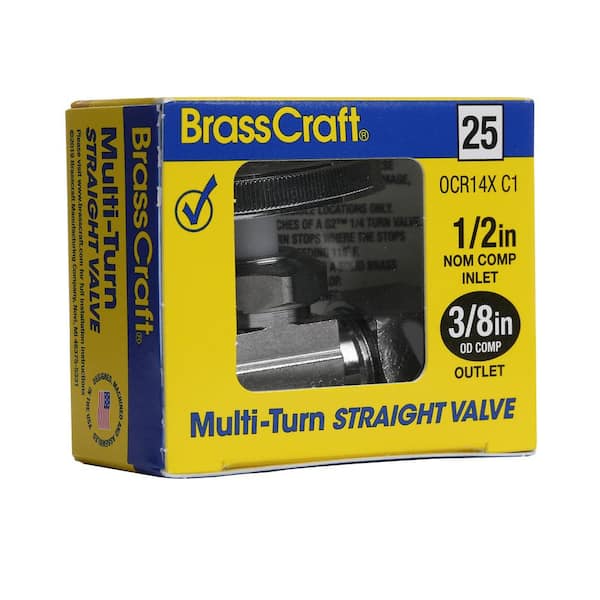

1/2 in. Compression Inlet x 3/8 in. Compression Outlet Brass Multi-Turn Straight Valve

  • Controls water flow to household plumbing fixtures
  • For use with faucets, toilets, dishwashers and icemakers
  • Easy repair without shutting off water to your home
  • See More Details

Frequently Bought Together

+
+
Price:

Product Overview

Use the BrassCraft 1/2 in. Nominal Compression Inlet x 3/8 in. O.D. Compression Outlet Multi-Turn Straight Valve in a place where the water pipe enters the room from the floor. The turn valve handle allows for you to shut off the water flow leading to the plumbing fixture and repair it without stopping water flow to the entire home. The valve controls water flow to household plumbing fixtures - faucets, toilets, dishwashers, icemakers, washing machines, etc.
  • Compatible with copper or PEX (PEX installations require a stainless steel tube insert)
  • Machined, 1-piece body construction for strength, durability and long-lasting performance
  • Easy-to-remove handle protects against accidental operation during rough-ins
  • Multi-turn operation means water flow control with only a few turns of the handle
  • Oval-knurled handle provides a secure grip for on/off operation
  • Chrome-plated brass
  • Temperature rating: 40° to 140°F
  • Pressure rating: 125 psi maximum
  • No-lead certified
  • IAPMO and CSA listed to ASME A112.18.1/CSA B125.1

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar Supply Stop Valves

1/2 in. Nominal Compression Inlet x 3/8 in. O.D. Compression x 3/8 in. O.D. Compression Dual Outlet Multi-Turn ValveTop Rated1/2 in. FIP Inlet x 3/8 in. Compression Outlet 1/4-Turn Angle Valve
current product
1/2 in. Compression Inlet x 3/8 in. Compression Outlet Brass Multi-Turn Straight Valve
1/2 in. Push Connect Inlet x 3/8 in. Compression Outlet 1/4-Turn Straight Valve
BrandBrassCraftBrassCraftBrassCraftBrassCraft
Name1/2 in. Nominal Compression Inlet x 3/8 in. O.D. Compression x 3/8 in. O.D. Compression Dual Outlet Multi-Turn Valve1/2 in. FIP Inlet x 3/8 in. Compression Outlet 1/4-Turn Angle Valve1/2 in. Compression Inlet x 3/8 in. Compression Outlet Brass Multi-Turn Straight Valve1/2 in. Push Connect Inlet x 3/8 in. Compression Outlet 1/4-Turn Straight Valve
Price
Ratings
(226)
(408)
(176)
(187)
ConnectionComp x Comp x CompFIP x CompComp x CompPTC x Comp
MaterialBrassBrassBrassBrass
ApplicationPotable WaterPotable WaterPotable WaterPotable Water
View ProductView ProductView ProductView Product

Specifications

Dimensions

Inlet Diameter (In.)
1/2
Inlet Size
1/2 In.
Outlet Diameter (In.)
3/8
Product Depth (in.)
1.19 in
Product Height (in.)
2.75
Product Length (in.)
2.75
Product Width (in.)
2.25
Valve Inlet Diameter (in.)
1/2

Details

Application
Potable Water
Color/Finish
Chrome
Color/Finish Family
Brass
Compatible Pipe Material
Copper
Compatible Product
Ice Maker,Other,Refridgerator,Washing Machine
Connection
Comp x Comp
Features
Lead Free
Indoor/Outdoor
Indoor,Outdoor
Inlet Fitting End Type
Compression
Material
Brass
Maximum Pressure (psi)
125
Maximum Working Temperature (F)
140
Outlet Fitting End Type
Compression
Pack Size
1
Product Weight (lb.)
.25236
Returnable
90-Day
Stop Valve Type
Straight
Valve Configuration
Straight
Valve Connection
Compression
Valve Type
Stop

Warranty / Certifications

Manufacturer Warranty
Limited Manufacturer Warranty

Questions & Answers

5Questions25Answers

Will this work for dishwasher with 1/2" copper bare pipe teed off hot supply line and what I thin...

Asked by Corvetterok June 12, 2019
5
Answers

probably

Do both ends screw into place or does the bottom end have to be soldered in place?

Asked by Lori June 12, 2019
5
Answers

Both ends screw into place.

What is the replacement rubber washer inside of it? ie part # ? Thank you.

Asked by Deacon May 29, 2019
5
Answers

Everything came that was needed to install the valve. Valve was connected to copper tubing. From valve to faucet that line should have what you need. I did use Teflon tape on threads as a precaution

Is the male part 1/2 and the female part 3/8?

Asked by CraftyBuilder July 4, 2018
5
Answers

Yes

I need 1 of these to connect 1/2 inch galvanized pipe to a compression water supply hose. is this the right one?

Asked by Chuckdub June 22, 2014
5
Answers

No This is for copper pipe

Customer Reviews

  • 4.6
    out of 176 reviews
  • 89% recommend this product
Filter by:
Showing 1-10 of 176 reviews
These multi turn valves have a rubber gasket that seals off the water when the valve is closed. ...
These multi turn valves have a rubber gasket that seals off the water when the valve is closed. This rubber is in constant contact with the water and deteriorates over time. I removed 10 of these valves and replaced them with the quarter turn valve. When I took the old multi turn valves apart the gaskets were all cracked and some had large pieces missing. See the attached image Use the quarter turn valves they are better quality, easier to use and don't utilize the rubber gasket.
by Jerbear
Response from BrassCraft MfgJan 24, 2020
HI Jerbear,
I am so glad that you like our quarter turn valves. It is correct that our multi-turn vales do have a rubber gasket in them that shuts off the flow of water and they are always in contact with water. After 10 years that stem and bib washer have reached their useful lifespan and can easily be replaced using our stem repair kit, part number BCSR01. This is one of the benefits of using a multi-turn stop is that it is repairable. Home Depot does sell this part number in store and online; Internet #204845385, Model #BCSR01, Store SKU # 1000037226. Thank you for reviewing our product and if you have any questions please contact our Customer Support Team at 877-272-7755 for assistance.
1 person found this helpful
Doing a bathroom remodel, changed out 4 valves. They went on easily and sealed perfectly.
Doing a bathroom remodel, changed out 4 valves. They went on easily and sealed perfectly.
by Trish
1 person found this helpful
Very nice! Easy to install...
Very nice! Easy to install
by Vince
Rating provided by a verified purchaser...
Rating provided by a verified purchaser
by HomeDepotCustomer
Rating provided by a verified purchaser...
Rating provided by a verified purchaser
by HomeDepotCustomer
Rating provided by a verified purchaser...
Rating provided by a verified purchaser
by HomeDepotCustomer
Quick and easy installation
Quick and easy installation
by Jgh
by HomeDepotCustomer
Rating provided by a verified purchaser...
Rating provided by a verified purchaser
by HomeDepotCustomer
Rating provided by a verified purchaser...
Rating provided by a verified purchaser
by MIKE
Showing 1-10 of 176 reviews
