Internet #202047057

Model #G23341X C1

Store SKU #229767

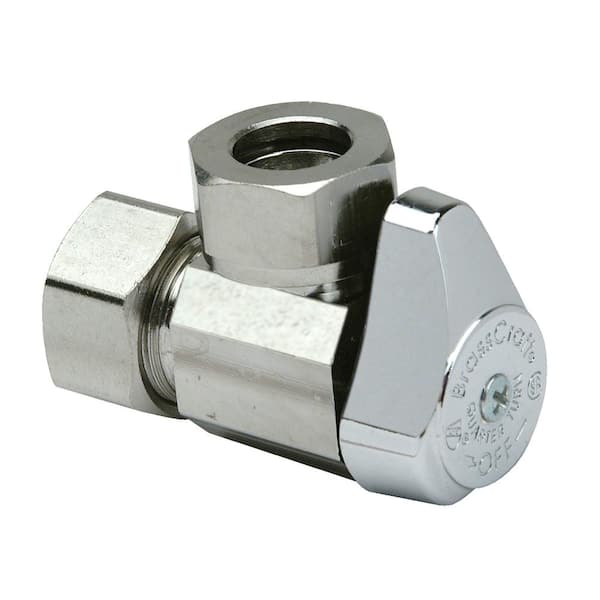

1/2 in. Compression Inlet x 7/16 in. and 1/2 in. Slip-Joint Outlet 1/4-Turn Angle Valve

  • Angle valve compatible with copper or PEX
  • Smooth on/off flow control with a quarter-turn 90° handle
  • 100% leak tested to ensure reliable, leak-free performance
  • See More Details

Frequently Bought Together

+
+
Price:
$1070

Product Overview

BrassCraft 1/2 in. Nominal Compression Inlet x 7/16 in. & in. Slip-Joint Outlet 1/4-Turn Angle Valve controls water flow to household plumbing fixtures - faucets, toilets, dishwashers, icemakers, washing machines, etc. The angle valve is most often used where the water pipe enters the room from the wall. With a 90° turn of the valve handle, you are able to stop the flow of water leading to the plumbing fixture, allowing for maintenance and repair without shutting off the water to the entire home.
  • Compatible with copper or PEX (PEX installations require a stainless steel tube insert)
  • Smooth, quarter-turn operation, on/off flow control with a 90° turn of the handle
  • 1-piece shut-off mechanism ensures smooth operation without freeze-ups even after long periods without use
  • Easy-to-remove handle protects against accidental operation during rough-ins
  • 1-piece body construction for strength, durability and long-lasting performance
  • Chrome-plated brass
  • Temperature rating: 40° to 140°F
  • Pressure rating: 125 psi maximum
  • No-lead certified
  • IAPMO and CSA listed to ASME A112.18.1/CSA B125.1

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar Supply Stop Valves

current product
1/2 in. Compression Inlet x 7/16 in. and 1/2 in. Slip-Joint Outlet 1/4-Turn Angle Valve
1/2 in. Nominal Push Connect x 1/2 in. FIP x 20 in. Brass SpeediOne Braided Connector and Valve1/2 in. Nominal Push Connect x 1/2 in. FIP x 20 in. Brass SpeediOne Braided Connector and Valve1/2 in. Push-to-Connect x 3/8 in. O.D. Compression x 3/8 in. O.D. Compression Dual Stop Quarter-Turn Angle Stop Valve
BrandBrassCraftBrassCraftBrassCraftSharkBite
Name1/2 in. Compression Inlet x 7/16 in. and 1/2 in. Slip-Joint Outlet 1/4-Turn Angle Valve1/2 in. Nominal Push Connect x 1/2 in. FIP x 20 in. Brass SpeediOne Braided Connector and Valve1/2 in. Nominal Push Connect x 1/2 in. FIP x 20 in. Brass SpeediOne Braided Connector and Valve1/2 in. Push-to-Connect x 3/8 in. O.D. Compression x 3/8 in. O.D. Compression Dual Stop Quarter-Turn Angle Stop Valve
Price
$1070
$1498
$1558
$1858
Ratings
(71)
(104)
(91)
(130)
ConnectionComp x Slip-JointPTC x CompPTCPTC x Comp
MaterialBrassBrassBrassChrome
Indoor/OutdoorIndoor,OutdoorIndoor,OutdoorIndoorIndoor
Inlet Diameter (In.)1/21/21/21/2
ApplicationPotable WaterPotable WaterPotable WaterPotable Water
Inlet Fitting End TypeCompressionFIPPush to ConnectPush to Connect
Valve ConfigurationAngleAngleStraightAngle
View ProductView ProductView ProductView Product

Specifications

Dimensions

Inlet Diameter (In.)
1/2
Inlet Size
1/2 In.
Outlet Diameter (In.)
1/2
Product Depth (in.)
1.658
Product Height (in.)
2.75
Product Length (in.)
2.75 in
Product Width (in.)
2.25
Valve Inlet Diameter (in.)
1/2

Details

Application
Potable Water
Color/Finish
Chrome
Color/Finish Family
Brass
Compatible Pipe Material
Copper
Compatible Product
Faucet,Ice Maker,Other,Toilet,Washing Machine
Connection
Comp x Slip-Joint
Features
Lead Free
Indoor/Outdoor
Indoor,Outdoor
Inlet Fitting End Type
Compression
Material
Brass
Maximum Pressure (psi)
125
Maximum Working Temperature (F)
140
Outlet Fitting End Type
Slip-Joint
Pack Size
1
Product Weight (lb.)
.26778
Returnable
180-Day
Stop Valve Type
Angle
Valve Configuration
Angle
Valve Connection
Compression
Valve Type
Supply Stop

Warranty / Certifications

Manufacturer Warranty
Limited Manufacturer Warranty

Questions & Answers

1Questions4Answers

WILL THE 1/2" SLIP JOINT FITTING BE COMPATIBLE WITH 1/2" PIPE THREAD, IF NOT WHAT VALVE SHOULD BE...

Asked by SPORTYDAVE98 February 7, 2017
4
Answers

Yes

Customer Reviews

  • 4.8
    out of 71 reviews
  • 95% recommend this product
5star-icon59
4star-icon9
3star-icon2
2star-icon0
1star-icon1
Filter by:
Showing 1-10 of 71 reviews
Pretty decent quarter turn. We haven't really had too much issue with these, but some plumbing sp...
Pretty decent quarter turn. We haven't really had too much issue with these, but some plumbing specialty stores have better versions of these valves, sometimes the same brand, just better made. The most common issue you'll have when changing these out is the nut or the compression fitting won't come off. Most plumbers will use a dremel and saw it off, some cut off the whole pipe if there is extra coming out of the wall, and some have a puller. Once it's off and the copper is sanded nicely, you can easily slip the nut on, slip the NEW compression fitting on(don't be tempted to reuse the old nut or the compression fitting), slip the new valve on, and tighten it with a COUNTERCLOCKWISE turn. Clockwise to loosen. Use two pipe wrenches
by CaTrekker
10 people found this helpful
I love the features however quality is poor.
I use this supply valve for sinks and toilets. The 1/4 turn is a great feature and reliable. However the female threaded collar developes spontanious leaks in the middle of the body. I have had three fail on me. Sorry no spell check.
by Upthechain
Response from BrassCraft MfgJan 24, 2017
Dear upthechain -
Thank you for the feedback! We are sorry to hear that this was your experience. If you have any further feedback, questions, or concerns, please don't hesitate to contact our Customer Support Team toll-free at 877-272-7755.
Rating provided by a verified purchaser...
Rating provided by a verified purchaser
by HomeDepotCustomer
I have replaced all three old toilet supply valves with these wonderful valves. The first replace...
I have replaced all three old toilet supply valves with these wonderful valves. The first replacement was eight years ago and there has been no problem with any of the new valves. Closing the old valves always resulted in a leak at the valve. I am expecting that will not happen with these valves as they age. And I love the quarter-turn design. I was very apprehensive about the compression connection, especially after seeing the instruction to tighten the nut only something like 1/2 turn after finger-tightening. I could imagine the valve just blowing right off the copper pipe. But then I found the 1/2 turn pretty hard to do! And in no case has there even been the slightest leak. I did reuse the old nut and brass ring in the first replacement. But I replaced these as well after that and I am pleased that I did. That requires a tool for pulling them but it all worked very nicely.
by MilesfrombigT
Rating provided by a verified purchaser...
Rating provided by a verified purchaser
by HomeDepotCustomer
Works great, easy to install....
Works great, easy to install.
by Jy
Does what is supposed to with out leaking like the...
Does what is supposed to with out leaking like the older gate valves.
by HomeDepotCustomer
Rating provided by a verified purchaser...
Rating provided by a verified purchaser
by HomeDepotCustomer
Rating provided by a verified purchaser...
Rating provided by a verified purchaser
by HomeDepotCustomer
Rating provided by a verified purchaser...
Rating provided by a verified purchaser
by HomeDepotCustomer
Showing 1-10 of 71 reviews
