1/2 in. FIP Inlet x 3/8 in. Comp Outlet 1/4-Turn Straight Ball Valve
$10.07
- Straight valve compatible with Iron pipe
- 100% leak tested to ensure reliable, leak-free performance
- Easy to remove handle
- View More Details
How to Get It
Product Overview

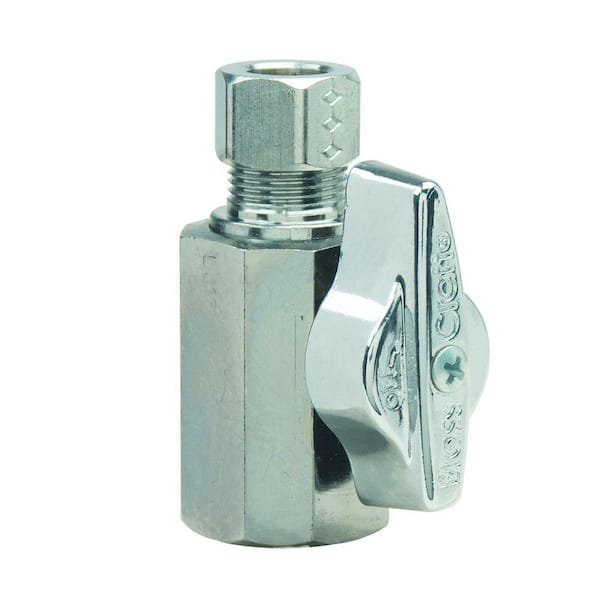

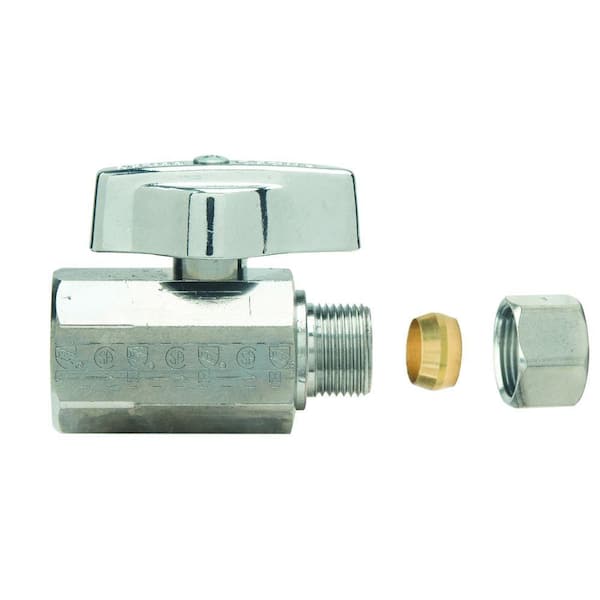

BrassCraft 1/2 in. FIP Inlet x 3/8 in. O.D. Compression Outlet 1/4-Turn Straight Ball Valve controls water flow to household plumbing fixtures - faucets, toilets, dishwashers, icemakers, washing machines, etc. The straight valve is most often used where the water pipe enters the room from the floor. With a 90° turn of the valve handle, you are able to stop the flow of water leading to the plumbing fixture, allowing for maintenance and repair without shutting off the water to the entire home.
- Compatible with iron pipe
- Smooth, quarter-turn operation, on/off flow control with a 90° turn of the handle
- Brass ball ensures smooth operation without freeze-ups even after long periods without use
- Machined body provides strength, durability and long-lasting performance
- Easy-to-remove handle protects against accidental operation during rough-ins
- Chrome-plated brass
- Temperature rating: 40° to 180° F
- Pressure rating: 125 psi maximum
- No-lead certified
- IAPMO and CSA listed to ASME A112.18.1/CSA B125.1
Compare Similar Tub & Shower Valves
 |  |  |  | |
| Brand | BrassCraft | BrassCraft | BrassCraft | BrassCraft |
| Name | 1/2 in. FIP Inlet x 3/8 in. Comp Outlet 1/4-Turn Straight Ball Valve | 3/8 in. FIP Inlet x 3/8 in. Comp Outlet 1/4-Turn Angle Ball Valve | 1/2 in. CPVC Inlet x 3/8 in. Comp Outlet 1/4-Turn Angle Valve | 1/2 in. CPVC Inlet x 3/8 in. Comp Outlet 1/4-Turn Straight Ball Valve |
| Price | $1007 | $1188 | $1536 | $1824 |
| Ratings | (3) | (3) | (4) | (1) |
| Connection | FIP x Comp | FIP x Comp | CPVC x Comp | CPVC x Comp |
| Material | Brass | Brass | Brass | Brass |
| Inlet Diameter (In.) | 1/2 | 3/8 | 1/2 | 1/2 |
| Outlet Diameter (In.) | 3/8 | 3/8 | 3/8 | 3/8 |
| Valve Configuration | Straight | Angle | Angle | Straight |
| Compatible Pipe Material | Galvanized malleable iron | Galvanized malleable iron | CPVC | CPVC |
| Inlet Fitting End Type | FIP | FIP | OD | OD |
| Outlet Fitting End Type | Compression | Compression | Compression | Compression |
| Maximum Working Temperature (F) | 180 | 180 | 160 | 180 |
| Application | Potable Water | Potable Water | Potable Water | Potable Water |
| View Product | View Product | View Product | View Product |
Specifications
Dimensions
| Inlet Diameter (In.) | 1/2 | Inlet Size | 1/2 In. |
|---|---|---|---|
| Outlet Diameter (In.) | 3/8 | Product Depth (in.) | 1.1880 |
| Product Height (in.) | 2.75 | Product Length (in.) | 2.750 in |
| Product Width (in.) | 2.25 | Valve Inlet Diameter (in.) | 1/2 |
Details
| Application | Potable Water | Color/Finish | Chrome-plated Brass |
|---|---|---|---|
| Color/Finish Family | Brass | Compatible Pipe Material | Galvanized malleable iron |
| Compatible Product | Faucet,Ice Maker,Other | Connection | FIP x Comp |
| Features | Lead Free | Indoor/Outdoor | Indoor,Outdoor |
| Inlet Fitting End Type | FIP | Material | Brass |
| Maximum Pressure (psi) | 125 | Maximum Working Temperature (F) | 180 |
| Outlet Fitting End Type | Compression | Pack Size | 1 |
| Product Weight (lb.) | 0.2665 lb | Returnable | 90-Day |
| Stop Valve Type | Straight | Valve Configuration | Straight |
| Valve Connection | Pipe Thread | Valve Type | Stop |
Warranty / Certifications
| Manufacturer Warranty | Limited Manufacturer Warranty |
|---|
Questions & Answers
Typical questions asked about products:
- Is the product durable?
- Is the product easy to use?
- What are the dimensions of the product?
Customer Reviews
Apr 9, 2021
Installed easily with no leaks and has a nice 90...
Installed easily with no leaks and has a nice 90 positive stop turn. Seems well made.
by
Dec 11, 2019
They are made in the U.S. and good quality....
They are made in the U.S. and good quality.
by
Apr 12, 2016
PURCHASED PRODUCT I HAD TO HAVE
THE COST IS OUTRAGEOUS FOR THESE SHUT OFF VALVES, BUT I NEEDED VALVES WITH REAL BRASS INTERNAL SHUTOFF BALLS (NOT PLASTIC !!!!!) FOR MY TANKLESS WATER SYSTEM WITH WATTS INSTANT HOT WATER PUMP SO I HAD TO SPECIAL ORDER AND PAY THE PRICE! I HAD NO OTHER CHOICE !!
by
