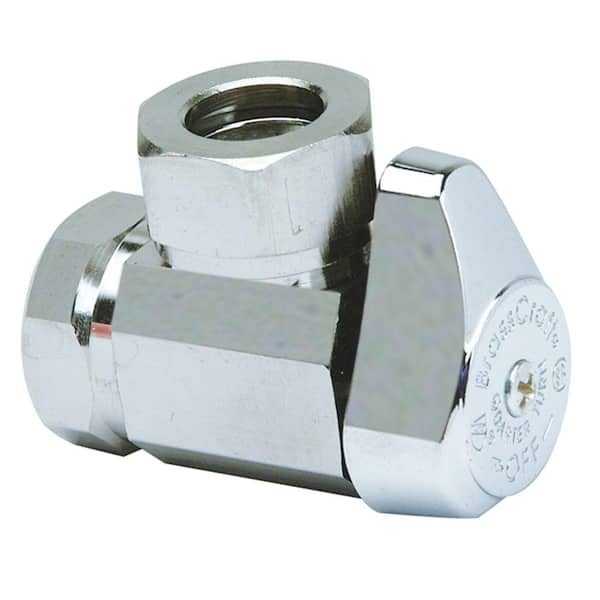

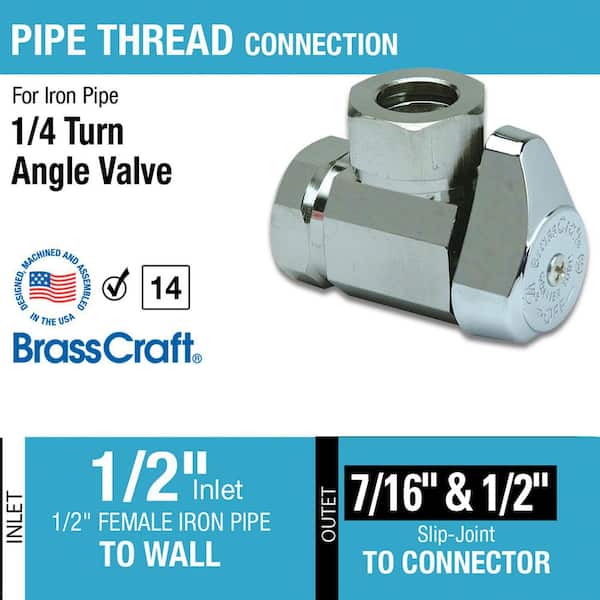

1/2 in. FIP Inlet x 7/16 in. and 1/2 in. Slip-Joint Outlet 1/4-Turn Angle Valve

(100)Questions & Answers (2)
$10.70
  • Angle valve compatible with iron pipe
  • Smooth on/off flow control with a quarter-turn 90° handle
  • 100% leak tested to ensure reliable, leak-free performance
  • View More Details
Store
0 in stock
caret

Product Details

BrassCraft 1/2 in. FIP Inlet x 7/16 in. & 1/2 in. Slip-Joint Outlet 1/4-Turn Angle Valve controls water flow to household plumbing fixtures - faucets, toilets, dishwashers, icemakers, washing machines, etc. The angle valve is most often used where the water pipe enters the room from the wall. With a 90° turn of the valve handle, you are able to stop the flow of water leading to the plumbing fixture, allowing for maintenance and repair without shutting off the water to the entire home.
  • Compatible with iron pipe
  • Smooth, quarter-turn operation, on/off flow control with a 90° turn of the handle
  • 1-piece shut-off mechanism ensures smooth operation without freeze-ups even after long periods without use
  • Easy-to-remove handle protects against accidental operation during rough-ins
  • 1-piece body construction for strength, durability and long-lasting performance
  • Chrome-plated brass
  • Temperature rating: 40° to 160°F
  • Pressure rating: 125 psi maximum
  • No-lead certified
  • IAPMO and CSA listed to ASME A112.18.1/CSA B125.1
  • Return Policy
  • California residents

Additional Resources

From the Manufacturer

caret

Specifications

caret

Questions & Answers

2Questions
caret
Q:What is the difference between a 1/2 slip-joint outlet and a 1/2 compression outlet?
by|Jan 13, 2020
2 Answers
Answer This Question

A:  I don’t know of anyone using this valve for shutoff on bathtub waterlines. I suppose you may, but I wouldn’t.

by|Mar 20, 2021

    A:  Hello Plumbedout-This is a great question. The slip joint connection does not have a hard connection like that found with a compression, it is made for earthquake prone zones so the slip joint is designed to seal with a combination of a slip nut and a slip joint washer, to allow the ridged supply line to slightly move if there is an earthquake. There are two options for earthquake zones, one is a ridged supply line with a slip joint stop or use a compression outlet stop with a braided flexible connector. If you need additional support, please contact one of our Customer Service Representatives at 877-272-7755.

    by|Jan 14, 2020
      caret
      Q:Do these valves have tapered FIP threads
      by|Aug 21, 2015
      4 Answers
      Answer This Question

      A:  Yes. They come with standard 1/2" pipe threads OR 1/2" compression fitting for bare copper pipe. If it has a nut and brass ferrule on the inlet, then it is meant to be fitted on bare copper pipe. The pipe threaded ones have female threads for screwing onto steel pipe or a threaded brass or copper fitting.

      by|Feb 4, 2020

      A:  No

      by|Mar 20, 2019

        A:  Thank you Craig for the question. The threads on the inlet of this valve (FIP) are tapered. Should you have additional questions regarding this product please do not hesitate to contact one of our product experts toll-free at 877-272-7755.

        by|Aug 25, 2015

          A:  Yes just use teflon tape apply 3-4 turns clockwise the galvanized pipe and screw on the valve

          by|Jul 23, 2019
          Showing 1-2 of 2
          caret

          Customer Reviews

          4.5 out of 5
          (100)
          • 4.5
            out of 100 reviews
          • 77%recommend this product
          Filter by:
          Showing 1-10 of 100 reviews
          Feb 22, 2023
          by
          • Verified Purchase
          Feb 1, 2023
          Returned bad itens
          Based on my prior review of otger BrassCraft shutoff valves I returned these 4 items
          by
          • Verified Purchase
          Jan 25, 2023
          by
          • Verified Purchase
          Dec 22, 2022
          Defective, fits poorly into tapered thread. Near impossible to seal...
          Defective, fits poorly into tapered thread. Near impossible to seal with plumbers tape. Returning next opportunity. Had to replace with different brand.
          by
          • Verified Purchase
          Nov 23, 2022
          by
          • Verified Purchase
          Oct 26, 2022
          This one slipped thru QA!
          Leaking from around valve stem upon install... As usual, a plumbing problem on a Sunday:)! Normal plumbing supply closed. So figured run with the HD brand, and understand it was built to a certain price point. Also as usual, when doing plumbing - PAY UP for the best quality valves you can locate!
          by
          Response from BrassCraft MfgOct 27, 2022
          Hello Smitty,

          We stand behind our product 100% and want to rectify any issue you have. Please call 877-272-7755 and we will be happy to assist you.

          Thank you,
          BrassCraft
          • Verified Purchase
          Oct 19, 2022
          Long lines.
          The product was fine and works as needed. The problem is in the check out process. There were long lines to check out. There were only two employees at cash registers and several self check out stations were not turned on. Management needs to do a better job. By the way, the return area is always understaffed and a long wait.
          by
          Response from BrassCraft MfgOct 20, 2022
          Hello,
          Thank you for taking the time to tell us of your experience. We are always looking for ways to improve our products and we hope that you keep BrassCraft in mind for future projects. If you need additional support, please contact one of our Customer Service Representatives at 877-272-7755.
          • Verified Purchase
          • Recommended
          Oct 13, 2022
          by
          • Verified Purchase
          Oct 13, 2022
          by
          • Verified Purchase
          Sep 12, 2022
          thank you brandon thank you home depot over priced for what...
          thank you brandon thank you home depot over priced for what i am paying for
          by
          • Verified Purchase
          Showing 1-10 of 100 reviews

          Frequently Bought Together

          +
          +
          Price:
          $1070

          • Compare Similar Tub & Shower Valves

          current product
          1/2 in. FIP Inlet x 7/16 in. and 1/2 in. Slip-Joint Outlet 1/4-Turn Angle Valve          		1/2 in. FIP Inlet x 7/16 in. and 1/2 in. Slip-Joint Outlet Multi-Turn Angle Valve1/2 in. FIP Inlet x 1/2 in. Compression Outlet Multi-Turn Angle Valve3/8 in. FIP Inlet x 3/8 in. Comp Outlet 1/4-Turn Angle Ball Valve
          BrandBrassCraftBrassCraftBrassCraftBrassCraft
          Name1/2 in. FIP Inlet x 7/16 in. and 1/2 in. Slip-Joint Outlet 1/4-Turn Angle Valve1/2 in. FIP Inlet x 7/16 in. and 1/2 in. Slip-Joint Outlet Multi-Turn Angle Valve1/2 in. FIP Inlet x 1/2 in. Compression Outlet Multi-Turn Angle Valve3/8 in. FIP Inlet x 3/8 in. Comp Outlet 1/4-Turn Angle Ball Valve
          Price
          $1070
          $1088
          $1098
          Buy 20 or more $5.49
          $1372
          Ratings
          (100)
          (46)
          (80)
          (2)
          ConnectionFIP x Slip-JointFIP x Slip-JointFIP x CompFIP x Comp
          MaterialBrassBrassBrassBrass
          Inlet Diameter (In.)1/21/21/23/8
          Outlet Diameter (In.)1/21/21/23/8
          Compatible Pipe MaterialGalvanized malleable ironGalvanized malleable ironGalvanized malleable ironGalvanized malleable iron
          Maximum Working Temperature (F)160160160180
          Maximum Pressure (psi)125125125125
          Valve Inlet Diameter (in.)1/21/21/23/8
          ApplicationPotable WaterPotable WaterPotable WaterPotable Water
          View ProductView ProductView ProductView Product
