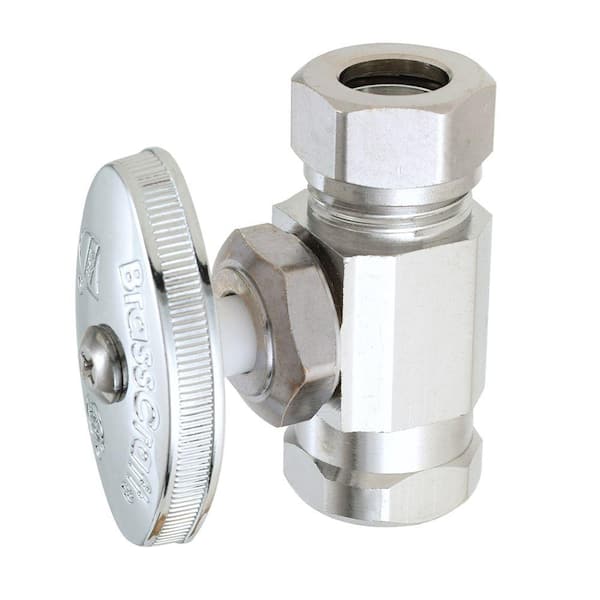

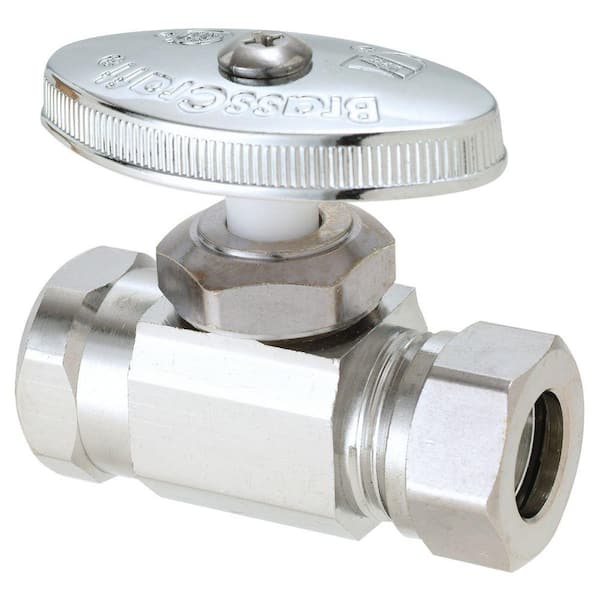

1/2 in. FIP Inlet x 7/16 in. and 1/2 in. Slip Joint Outlet Multi-Turn Straight Valve

$976

Frequently Bought Together

+
+
Price:
$976

Product Overview

BrassCraft 1/2 in. FIP Inlet x 7/17 in. & 1/2 in. Slip Joint Outlet Multi-Turn Straight Valve controls water flow to household plumbing fixtures - faucets, toilets, dishwashers, icemakers, washing machines, etc. The straight valve is most often used where the water pipe enters the room from the floor. With a few turns of the valve handle, you are able to stop the flow of water leading to the plumbing fixture, allowing for maintenance and repair without turning off water to the entire home.
  • Compatible with iron pipe
  • Machined, 1-piece body construction for strength, durability and long-lasting performance
  • Easy-to-remove handle protects against accidental operation during rough-ins
  • Multi-turn operation means water flow control with only a few turns of the handle
  • Oval-knurled handle provides a secure grip for on/off operation
  • Chrome-plated brass
  • Temperature rating: 40° to 140°F
  • Pressure rating: 125 psi maximum
  • No-lead certified
  • IAPMO and CSA listed to ASME A112.18.1/CSA B125.1

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar Supply Stop Valves

current product
1/2 in. FIP Inlet x 7/16 in. and 1/2 in. Slip Joint Outlet Multi-Turn Straight Valve
1/2 in. FIP Inlet x 3/8 in. Comp Outlet 1/4-Turn Straight Ball Valve1/2 in. FIP Inlet x 7/16 in. & 1/2 in. Slip-Joint Outlet 1/4-Turn Straight Valve1/2 in. Nominal Compression Inlet x 3/8 in. O.D. Compression x 3/8 in. O.D. Compression Dual Outlet 1/4-Turn Ball Valve
BrandBrassCraftBrassCraftBrassCraftBrassCraft
Name1/2 in. FIP Inlet x 7/16 in. and 1/2 in. Slip Joint Outlet Multi-Turn Straight Valve1/2 in. FIP Inlet x 3/8 in. Comp Outlet 1/4-Turn Straight Ball Valve1/2 in. FIP Inlet x 7/16 in. & 1/2 in. Slip-Joint Outlet 1/4-Turn Straight Valve1/2 in. Nominal Compression Inlet x 3/8 in. O.D. Compression x 3/8 in. O.D. Compression Dual Outlet 1/4-Turn Ball Valve
Price
$976
$1072
$1451
$2999
Ratings
(11)
(0)
(1)
(12)
ConnectionFIP x Slip-JointFIP x CompFIP x Slip-JointComp x Comp x Comp
MaterialBrassBrassBrassBrass
Valve Inlet Diameter (in.).50.50.50.5
Outlet Diameter (In.)1/23/81/23/8
ApplicationPotable WaterPotable WaterPotable WaterPotable Water
Valve ConfigurationStraightStraightStraightDual Outlet
View ProductView ProductView ProductView Product

Specifications

Dimensions

Inlet Diameter (In.)
1/2
Inlet Size
1/2 In.
Outlet Diameter (In.)
1/2
Product Depth (in.)
1.19
Product Height (in.)
2.75
Product Length (in.)
2.75 in
Product Width (in.)
2.25
Valve Inlet Diameter (in.)
.5

Details

Application
Potable Water
Color/Finish
Chrome
Color/Finish Family
Brass
Compatible Pipe Material
Galvanized malleable iron
Compatible Product
Faucet,Ice Maker,Other,Refridgerator,Washing Machine
Connection
FIP x Slip-Joint
Features
Lead Free
Indoor/Outdoor
Indoor,Outdoor
Inlet Fitting End Type
FIP
Material
Brass
Maximum Pressure (psi)
125
Maximum Working Temperature (F)
140
Outlet Fitting End Type
Slip-Joint
Product Weight (lb.)
0.3065
Returnable
180-Day
Stop Valve Type
Straight
Valve Configuration
Straight
Valve Connection
Pipe Thread
Valve Type
Stop
