Internet #205214554

Model #CR1900DVX R

Store SKU #1000678073

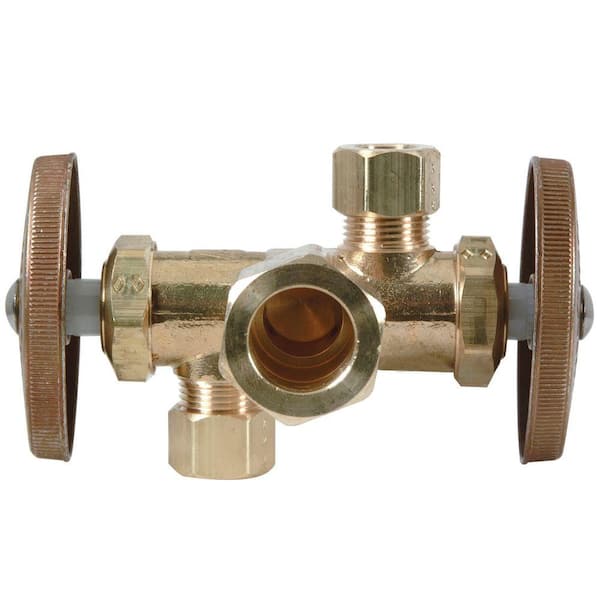

1/2 in. Nom Comp Inlet x 3/8 in. O.D. Comp x 1/4 in. O.D. Comp Dual Outlet Dual Shut-Off Multi-Turn Angle Valve

$2364
  • Dual outlet water valve compatible with iron pipe
  • Connect two independent water lines with one water stop
  • Independent flow control for each water supply line
  • View More Details
Store
0 in stock
Text to Me
How to Get It

Frequently Bought Together

+
+
Price:
$2364

Product Overview

BrassCraft 1/2 in. Nominal Compression Inlet x 3/8 in. O.D. Compression x 1/4 in. O.D. Compression Dual Outlet, Dual Shut-Off Multi-Turn Angle Valve controls water flow to household plumbing fixtures. The angle valve is most often used where the water pipe enters the room from the wall. The dual outlet allows two independent supply lines to be attached to a single valve. The dual shut-off allows you to turn off the water to one source while working on another. Ideal for adding dishwashers, ice makers, water filters and instant hot water dispensers to existing water supply. With a few turns of the valve handle, you are able to stop or start the flow of water leading to the plumbing fixture, allowing for maintenance and repair without shutting off the water to the entire home.
  • Compatible with copper and PEX (PEX installations require a stainless steel tube insert)
  • Allows independent flow control to multiple appliances or fixtures
  • Ideal for adding dishwashers, ice makers, water filters and instant hot water dispensers to existing water supply
  • Machined, 1-piece body construction for strength, durability and long-lasting performance
  • Easy-to-remove handle protects against accidental operation during rough-ins
  • Multi-turn operation means water flow control with only a few turns of the handle
  • Oval-knurled handle provides a secure grip for on/off operation
  • Rough brass
  • Temperature rating: 40 to 140 degree F
  • Pressure rating: 125 psi maximum
  • No-lead certified
  • IAPMO and CSA listed to ASME A112.18.1/CSA B125.1

Additional Resources

From the Manufacturer

Compare Similar Tub & Shower Valves

current product
1/2 in. Nom Comp Inlet x 3/8 in. O.D. Comp x 1/4 in. O.D. Comp Dual Outlet Dual Shut-Off Multi-Turn Angle Valve
1/2 in. Push to Connect x 3/8 in. O.D. Compression x 3/8 in. O.D. Compression Dual Stop Valve1/2 in. Nom Comp Inlet x 3/8 in. O.D. Comp x 3/8 in. O.D. Comp Dual Outlet Dual Shut-Off Multi-Turn Angle Valve1/2 in. Nom Comp Inlet x 3/8 in. O.D. Comp x 1/4 in. O.D. Comp Dual Outlet Dual Shut-Off Multi-Turn Straight Valve
BrandBrassCraftSharkBiteBrassCraftBrassCraft
Name1/2 in. Nom Comp Inlet x 3/8 in. O.D. Comp x 1/4 in. O.D. Comp Dual Outlet Dual Shut-Off Multi-Turn Angle Valve1/2 in. Push to Connect x 3/8 in. O.D. Compression x 3/8 in. O.D. Compression Dual Stop Valve1/2 in. Nom Comp Inlet x 3/8 in. O.D. Comp x 3/8 in. O.D. Comp Dual Outlet Dual Shut-Off Multi-Turn Angle Valve1/2 in. Nom Comp Inlet x 3/8 in. O.D. Comp x 1/4 in. O.D. Comp Dual Outlet Dual Shut-Off Multi-Turn Straight Valve
Price
$2364
$2795
$3117
$3920
Ratings
(4)
(63)
(2)
(8)
ConnectionComp x Comp x CompPTC x CompComp x Comp x CompComp x Comp x Comp
MaterialBrassBrassBrassBrass
Inlet Diameter (In.)1/21/21/21/2
Outlet Diameter (In.)3/83/83/83/8
Valve ConfigurationAngleDual OutletAngleStraight
Compatible Pipe MaterialCopperMulti-PurposeCopperCopper
Inlet Fitting End TypeCompressionPush to ConnectCompressionCompression
Outlet Fitting End TypeCompressionCompressionCompressionCompression
Maximum Pressure (psi)125125125125
Maximum Working Temperature (F)140160140140
View ProductView ProductView ProductView Product

Specifications

Dimensions

Inlet Diameter (In.)1/2Inlet Size1/2 In.
Outlet 1 Diameter (In.)3/8Outlet 2 Diameter (In.)1/4
Outlet Diameter (In.)3/8Product Depth (in.)2.0000
Product Height (in.)6Product Length (in.)6.000 in
Product Width (in.)6Valve Inlet Diameter (in.)1/2

Details

ApplicationPotable WaterColor/FinishRough Brass
Compatible Pipe MaterialCopperCompatible ProductFaucet,Ice Maker,Other
ConnectionComp x Comp x CompFeaturesLead Free
Indoor/OutdoorIndoor,OutdoorInlet Fitting End TypeCompression
MaterialBrassMaximum Pressure (psi)125
Maximum Working Temperature (F)140Outlet Fitting End TypeCompression
Pack Size1Product Weight (lb.)0.3861 lb
Returnable90-DayStop Valve TypeAngle
Valve ConfigurationAngleValve ConnectionCompression
Valve TypeStop

Warranty / Certifications

Manufacturer WarrantyLimited Manufacturer Warranty
