Model # CR1900DVSX R

Internet #205214552

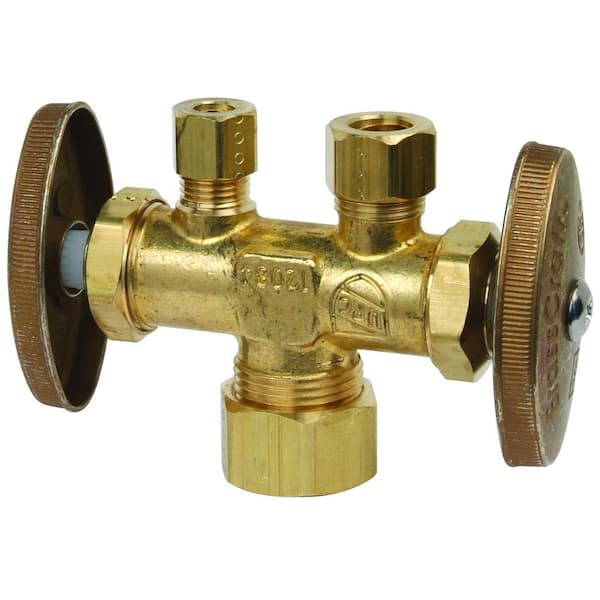

BrassCraft 1/2 in. Nom Comp Inlet x 3/8 in. O.D. Comp x 1/4 in. O.D. Comp Dual Outlet Dual Shut-Off Multi-Turn Straight Valve
0026613137971

BrassCraft

1/2 in. Nom Comp Inlet x 3/8 in. O.D. Comp x 1/4 in. O.D. Comp Dual Outlet Dual Shut-Off Multi-Turn Straight Valve

$3986 /each

Product Overview

BrassCraft 1/2 in. Nominal Compression Inlet x 3/8 in. O.D. Compression x 1/4 in. O.D. Compression Dual Outlet, Dual Shut-Off Multi-Turn Straight Valve controls water flow to household plumbing fixtures. The straight valve is most often used where the water pipe enters the room from the floor. The dual outlet allows two independent supply lines to be attached to a single valve. The dual shut-off allows you to turn off the water to one source while working on another. Ideal for adding dishwashers, ice makers, water filters and instant hot water dispensers to existing water supply. With a few turns of the valve handle, you are able to stop or start the flow of water leading to the plumbing fixture, allowing for maintenance and repair without shutting off the water to the entire home.
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Product Overview

BrassCraft 1/2 in. Nominal Compression Inlet x 3/8 in. O.D. Compression x 1/4 in. O.D. Compression Dual Outlet, Dual Shut-Off Multi-Turn Straight Valve controls water flow to household plumbing fixtures. The straight valve is most often used where the water pipe enters the room from the floor. The dual outlet allows two independent supply lines to be attached to a single valve. The dual shut-off allows you to turn off the water to one source while working on another. Ideal for adding dishwashers, ice makers, water filters and instant hot water dispensers to existing water supply. With a few turns of the valve handle, you are able to stop or start the flow of water leading to the plumbing fixture, allowing for maintenance and repair without shutting off the water to the entire home.
  • Compatible with copper and PEX (PEX installations require a stainless steel tube insert)
  • Allows independent flow control to multiple appliances or fixtures
  • Ideal for adding dishwashers, ice makers, water filters and instant hot water dispensers to existing water supply
  • Machined, 1-piece body construction for strength, durability and long-lasting performance
  • Easy-to-remove handle protects against accidental operation during rough-ins
  • Multi-turn operation means water flow control with only a few turns of the handle
  • Oval-knurled handle provides a secure grip for on/off operation
  • Rough brass
  • Temperature rating: 40° to 140° F
  • Pressure rating: 125 psi maximum
  • No-lead certified
  • IAPMO and CSA listed to ASME A112.18.1/CSA B125.1

Product Overview

Model #: CR1900DVSX R
Internet #: 205214552

BrassCraft 1/2 in. Nominal Compression Inlet x 3/8 in. O.D. Compression x 1/4 in. O.D. Compression Dual Outlet, Dual Shut-Off Multi-Turn Straight Valve controls water flow to household plumbing fixtures. The straight valve is most often used where the water pipe enters the room from the floor. The dual outlet allows two independent supply lines to be attached to a single valve. The dual shut-off allows you to turn off the water to one source while working on another. Ideal for adding dishwashers, ice makers, water filters and instant hot water dispensers to existing water supply. With a few turns of the valve handle, you are able to stop or start the flow of water leading to the plumbing fixture, allowing for maintenance and repair without shutting off the water to the entire home.

  • Compatible with copper and PEX (PEX installations require a stainless steel tube insert)
  • Allows independent flow control to multiple appliances or fixtures
  • Ideal for adding dishwashers, ice makers, water filters and instant hot water dispensers to existing water supply
  • Machined, 1-piece body construction for strength, durability and long-lasting performance
  • Easy-to-remove handle protects against accidental operation during rough-ins
  • Multi-turn operation means water flow control with only a few turns of the handle
  • Oval-knurled handle provides a secure grip for on/off operation
  • Rough brass
  • Temperature rating: 40° to 140° F
  • Pressure rating: 125 psi maximum
  • No-lead certified
  • IAPMO and CSA listed to ASME A112.18.1/CSA B125.1

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar

Price
$24.97 /each
$39.86 /each
$45.81 /each
$46.40 /each
Name 1/2 in. Nom Comp Inlet x 3/8 in. O.D. Comp x 1/4 in. O.D. Comp Dual Outlet Dual Shut-Off Multi-Turn Angle Valve 1/2 in. Nom Comp Inlet x 3/8 in. O.D. Comp x 1/4 in. O.D. Comp Dual Outlet Dual Shut-Off Multi-Turn Straight Valve 1/2 in. Nom Comp Inlet x 3/8 in. O.D. Comp x 3/8 in. O.D. Comp Dual Outlet Dual Shut-Off 1/4-Turn Angle Ball Valve 1/2 in. Nom Comp Inlet x 3/8 in. O.D. Comp x 3/8 in. O.D. Comp Dual Outlet Dual Shut-Off Multi-Turn Angle Valve
Brand BrassCraft BrassCraft BrassCraft BrassCraft
Ratings (1) (1) (2) (1)
Valve Outlet Diameter (in.) 0.375 0.375 0.375 0.375
Valve Inlet Diameter (in.) 0.5 0.5 0.5 0.5
Connection Comp x Comp x Comp Comp x Comp x Comp Comp x Comp x Comp Comp x Comp x Comp
View Product View Product View Product View Product

Specifications

Dimensions

Inlet Size
1/2 In.
Product Depth (in.)
2.0000
Product Height (in.)
6
Product Length (in.)
6.000 in
Product Width (in.)
6
Valve Inlet Diameter (in.)
0.5
Valve Outlet Diameter (in.)
0.375

Details

Application
Water Supply
Color/Finish
Rough Brass
Compatible Pipe Material
Copper
Compatible Product
Faucet,Ice Maker,Other
Connection
Comp x Comp x Comp
Features
Lead Free
Indoor/Outdoor
Indoor,Outdoor
Inlet Fitting End Type
Compression
Material
Brass
Maximum Pressure (psi)
125
Maximum Working Temperature (F)
140
Outlet Fitting End Type
Compression
Outlet Size
3/8 In.
Product Weight (lb.)
0.3839 lb
Returnable
90-Day
Stop Valve Type
Straight
Valve Configuration
Straight
Valve Connection
Compression
Valve Type
Stop

Warranty / Certifications

Manufacturer Warranty
Limited Manufacturer Warranty

Specifications

Dimensions

Inlet Size
1/2 In.
Product Depth (in.)
2.0000
Product Height (in.)
6
Product Length (in.)
6.000 in
Product Width (in.)
6
Valve Inlet Diameter (in.)
0.5
Valve Outlet Diameter (in.)
0.375

Details

Application
Water Supply
Color/Finish
Rough Brass
Compatible Pipe Material
Copper
Compatible Product
Faucet,Ice Maker,Other
Connection
Comp x Comp x Comp
Features
Lead Free
Indoor/Outdoor
Indoor,Outdoor
Inlet Fitting End Type
Compression
Material
Brass
Maximum Pressure (psi)
125
Maximum Working Temperature (F)
140
Outlet Fitting End Type
Compression
Outlet Size
3/8 In.
Product Weight (lb.)
0.3839 lb
Returnable
90-Day
Stop Valve Type
Straight
Valve Configuration
Straight
Valve Connection
Compression
Valve Type
Stop

Warranty / Certifications

Manufacturer Warranty
Limited Manufacturer Warranty
