#1 Home Improvement Retailer

Internet #205214568

Model #CR3901RX R1

Store SO SKU #1000682165

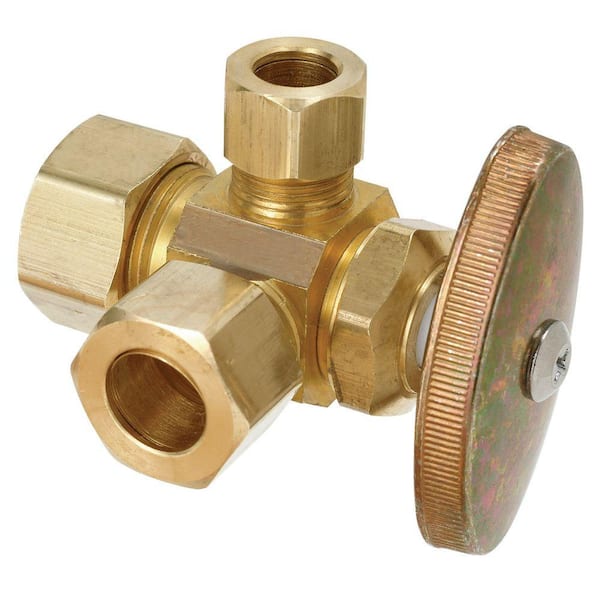

1/2 in. Nom Comp Inlet x 3/8 in. O.D. Comp x 3/8 in. O.D. Comp Dual Outlet Multi-Turn Valve

$2363
  • Dual outlet water valve compatible with Copper pipe
  • Connect two independent water lines with one water stop
  • Great for adding appliances to existing water supply
  • See More Details

Frequently Bought Together

+
+
Price:
$2363

Product Overview

BrassCraft 1/2 in. FIP Inlet x 1/2 in. O.D. Compression x 3/8 in. O.D. Compression Dual Outlet Multi-Turn Valve controls water flow to household plumbing fixtures. The dual outlet allows two independent supply lines to be attached to a single valve. Ideal for adding dishwashers, ice makers, water filters and instant hot water dispensers to existing water supply. With a few turns of the valve handle, you are able to stop or start the flow of water leading to the plumbing fixture, allowing for maintenance and repair without shutting off the water to the entire home.
  • Compatible with copper and PEX (PEX installations require a stainless steel tube insert)
  • Ideal for adding dishwashers, ice makers, water filters and instant hot water dispensers to existing water supply
  • Machined, 1-piece body construction for strength, durability and long-lasting performance
  • Easy-to-remove handle protects against accidental operation during rough-ins
  • Multi-turn operation means water flow control with only a few turns of the handle
  • Oval-knurled handle provides a secure grip for on/off operation
  • Rough brass
  • Temperature rating: 40 to 140°F
  • Pressure rating: 125 psi maximum
  • No-lead certified
  • IAPMO and CSA listed to ASME A112.18.1/CSA B125.1

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

1/2 in. Nom Comp Inlet x 3/8 in. O.D. Comp x 3/8 in. O.D. Comp Dual Outlet Multi-Turn Valve

Compare Similar Shut-off Valves

current product
1/2 in. Nom Comp Inlet x 3/8 in. O.D. Comp x 3/8 in. O.D. Comp Dual Outlet Multi-Turn Valve
1/2 in. Nom Comp Inlet x 1/2 in. O.D. Comp x 3/8 in. O.D. Comp Dual Outlet Multi-Turn Valve1/2 in. Nom Comp Inlet x 3/8 in. O.D. Comp x 3/8 in. O.D. Comp Dual Outlet Dual Shut-Off 1/4-Turn Straight Ball Valve1/2 in. Nom Comp Inlet x 3/8 in. O.D. Comp x 1/4 in. O.D. Comp Dual Outlet Dual Shut-Off 1/4-Turn Angle Ball Valve
BrandBrassCraftBrassCraftBrassCraftBrassCraft
Name1/2 in. Nom Comp Inlet x 3/8 in. O.D. Comp x 3/8 in. O.D. Comp Dual Outlet Multi-Turn Valve1/2 in. Nom Comp Inlet x 1/2 in. O.D. Comp x 3/8 in. O.D. Comp Dual Outlet Multi-Turn Valve1/2 in. Nom Comp Inlet x 3/8 in. O.D. Comp x 3/8 in. O.D. Comp Dual Outlet Dual Shut-Off 1/4-Turn Straight Ball Valve1/2 in. Nom Comp Inlet x 3/8 in. O.D. Comp x 1/4 in. O.D. Comp Dual Outlet Dual Shut-Off 1/4-Turn Angle Ball Valve
Price
$2363
$2847
$3910
$3929
Ratings
(1)
(1)
(31)
(9)
ConnectionComp x Comp x CompComp x Comp x CompComp x Comp x CompComp x Comp x Comp
MaterialBrassBrassBrassBrass
Valve ConfigurationDual OutletDual OutletStraightAngle
Inlet Diameter (In.)1/21/21/21/2
Compatible Pipe MaterialCopperCopperCopperCopper
Outlet Diameter (In.)3/83/83/83/8
ApplicationPotable WaterPotable WaterPotable WaterPotable Water
Maximum Pressure (psi)125125125125
View ProductView ProductView ProductView Product

Specifications

Dimensions

Inlet Diameter (In.)
1/2
Inlet Size
1/2 In.
Outlet 1 Diameter (In.)
3/8
Outlet 2 Diameter (In.)
3/8
Outlet Diameter (In.)
3/8
Product Depth (in.)
1.6880
Product Height (in.)
2.75
Product Length (in.)
2.750 in
Product Width (in.)
2.25
Valve Inlet Diameter (in.)
1/2

Details

Application
Potable Water
Color/Finish
Rough Brass
Compatible Pipe Material
Copper
Compatible Product
Faucet,Ice Maker,Other
Connection
Comp x Comp x Comp
Features
Lead Free
Indoor/Outdoor
Indoor,Outdoor
Inlet Fitting End Type
Compression
Material
Brass
Maximum Pressure (psi)
125
Maximum Working Temperature (F)
140
Outlet Fitting End Type
Compression
Pack Size
1
Product Weight (lb.)
0.3341 lb
Returnable
90-Day
Stop Valve Type
Dual Outlet
Valve Configuration
Dual Outlet
Valve Connection
Compression
Valve Type
Stop

Warranty / Certifications

Manufacturer Warranty
Limited Manufacturer Warranty
