Model #KTCS40BX C

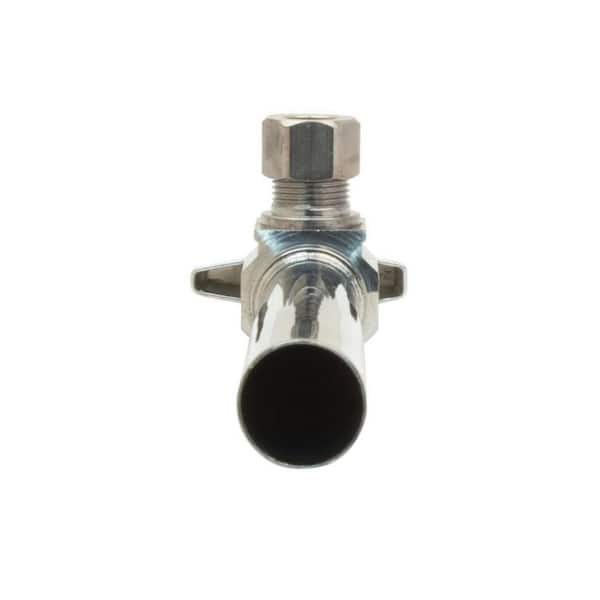

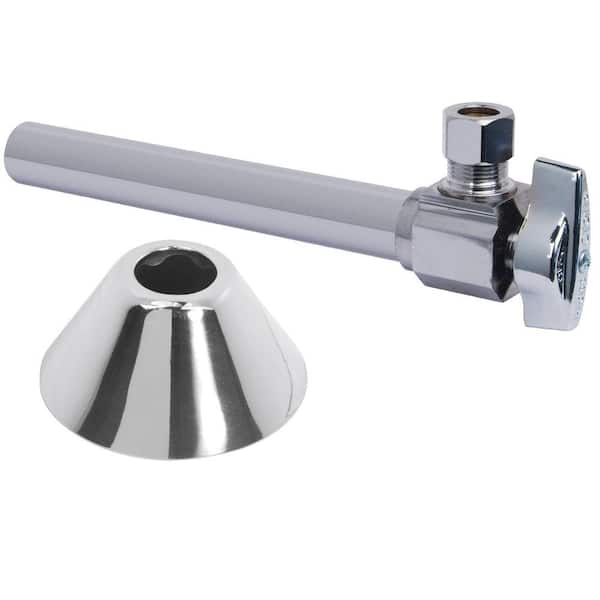

1/2 in. Nom Sweat Inlet x 3/8 in. O.D. Comp Outlet 1/4-Turn Angle Ball Valve with 5 in. Extension Tube & Bell Flange

Questions & Answers (4)

Frequently Bought Together

+
+
Price:

Product Overview

BrassCraft 1/2 in. Nominal Sweat Inlet x 3/8 in. O.D. Compression Outlet 1/4-Turn Angle Ball Valve with 5 in. Extension Tube controls water flow to household plumbing fixtures - faucets, toilets, dishwashers, icemakers, washing machines, etc. The angle valve is most often used where the water pipe enters the room from the wall. With a 90° turn of the valve handle, you are able to stop the flow of water leading to the plumbing fixture, allowing for maintenance and repair without shutting off the water to the entire home. Includes bell escutcheon for clean professional look.
  • Compatible with copper
  • Smooth, quarter-turn operation, on/off flow control with a 90° turn of the handle
  • Brass ball ensures smooth operation without freeze-ups even after long periods without use
  • Machined body provides strength, durability and long-lasting performance
  • Easy-to-remove handle protects against accidental operation during rough-ins
  • Chrome-plated brass
  • Temperature rating: 40° to 180° F
  • Pressure rating: 125 psi maximum
  • No-lead certified
  • IAPMO and CSA listed to ASME A112.18.1/CSA B125.1

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar Supply Stop Valves

current product
1/2 in. Nom Sweat Inlet x 3/8 in. O.D. Comp Outlet 1/4-Turn Angle Ball Valve with 5 in. Extension Tube & Bell Flange
1/2 in. Nom PEX Barb Inlet x 3/8 in. O.D. Comp x 3/8 in. O.D. Comp Dual Outlet Dual Shut-Off 1/4-Turn Angle Ball Valve1/2 in. Nom Comp Inlet x 3/8 in. O.D. Comp x 3/8 in. O.D. Comp Dual Outlet Dual Shut-Off 1/4-Turn Angle Ball Valve1/2 in. Sweat Inlet x 3/8 in. Comp Outlet Multi-Turn Angle Valve with 5 in. Ext & Bell Flange in Satin Nickel
BrandBrassCraftBrassCraftBrassCraftBrassCraft
Name1/2 in. Nom Sweat Inlet x 3/8 in. O.D. Comp Outlet 1/4-Turn Angle Ball Valve with 5 in. Extension Tube & Bell Flange1/2 in. Nom PEX Barb Inlet x 3/8 in. O.D. Comp x 3/8 in. O.D. Comp Dual Outlet Dual Shut-Off 1/4-Turn Angle Ball Valve1/2 in. Nom Comp Inlet x 3/8 in. O.D. Comp x 3/8 in. O.D. Comp Dual Outlet Dual Shut-Off 1/4-Turn Angle Ball Valve1/2 in. Sweat Inlet x 3/8 in. Comp Outlet Multi-Turn Angle Valve with 5 in. Ext & Bell Flange in Satin Nickel
Price
Ratings
(0)
(3)
(9)
(6)
ConnectionSweat x CompPEX Barb x Comp x CompComp x Comp x CompSweat x Comp
MaterialBrassBrassBrassBrass
ApplicationPotable WaterPotable WaterPotable WaterPotable Water
Inlet Diameter (In.)1/21/21/21/2
Valve ConfigurationAngleAngleAngleAngle
View ProductView ProductView ProductView Product

Specifications

Dimensions

Inlet Diameter (In.)
1/2
Inlet Size
1/2 In.
Outlet Diameter (In.)
3/8
Product Depth (in.)
8.8750
Product Height (in.)
2.375
Product Length (in.)
2.375 in
Product Width (in.)
1.188
Valve Inlet Diameter (in.)
1/2

Details

Application
Potable Water
Color/Finish
Chrome-plated Brass
Color/Finish Family
Brass
Compatible Pipe Material
Copper
Compatible Product
Faucet,Ice Maker,Other
Connection
Sweat x Comp
Features
Lead Free
Indoor/Outdoor
Indoor,Outdoor
Inlet Fitting End Type
Sweat
Material
Brass
Maximum Pressure (psi)
125
Maximum Working Temperature (F)
180
Outlet Fitting End Type
Compression
Pack Size
1
Product Weight (lb.)
0.3751 lb
Returnable
90-Day
Stop Valve Type
Angle
Valve Configuration
Angle
Valve Connection
Sweat
Valve Type
Stop

Warranty / Certifications

Manufacturer Warranty
Limited Manufacturer Warranty

Questions & Answers

4Questions4Answers

How do I install this part?

Asked by Daniel November 15, 2019
1
Answer

Hello Daniel- Always remember to turn off the main line to the house, drain the lines down before starting the installation. Make sure the stop in in the open position. Do not turn the stop the off position until the stop has fully cooled. Do not use a wet rag to cool the stop. The KTCS40BX C bell flange would slide over the extension tube, narrow end of the flange toward the stop. Clean outside of copper stub out and inside of extension tube with emery cloth or steel wool and remove all loose particles. Coat outside of copper stub out and inside of extension with flux. Place extension tube with bell flange over stub out and rotate to distribute flux evenly.Apply heat to all sides, checking temperature occasionally by touching end of solder to surface (not to flame). When solder liquefies, temperature is correct. Feed solder around edge of extension tube as heat is applied. While stub out is still hot, carefully wipe valve with damp rag. Avoid moving fitting/valve until solder hardens. Slide down the bell flange over solder joint. Please contact our Customer Support Team at 877-272-7755 if you need further assistance.

I have a 30 year old one of these which leaks and needs replacement. The 1/2" copper tub is only ...

Asked by JanB November 14, 2018
1
Answer

Hello JB, If your were to cut right behind the angle valve you would be able to use either a valve with a 1/2" compression fitting or a 1/2" SharkBite push on valve. Here are links to both items that I listed so that you can look at them both and see witch once would work out the best for you. Compression type... https://www.homedepot.com/p/BrassCraft-1-2-in-Nominal-Compression-Inlet-x-7-16-in-and-1-2-in-Slip-Joint-Outlet-1-4-Turn-Angle-Valve-G23341X-C1/202047057 Push On Type.. https://www.homedepot.com/p/SharkBite-1-2-in-Push-to-Connect-x-1-2-in-MIP-Brass-Quarter-Turn-Angle-Stop-Valve-24946/205744773

Can the Extension Tube be cut to a length less than 5 inches?

Asked by Remodeler September 15, 2018
1
Answer

Hello Remodeler-Thank you for your question, the KTCS40BX C can be cut down but not more than 5" since the extension tube is only 5" in length. You would have to have a few inches left on that extension tube to sweat this onto the copper tube coming from the wall. If you are not needing the extension tube, we do offer KTR19X C1. Call our Customer Support Team at 877-272-7755 if there is anything we can help you with.

Is this product made in the USA?

Asked by Michael August 1, 2018
1
Answer

No, this product does not feature being made in the USA.
