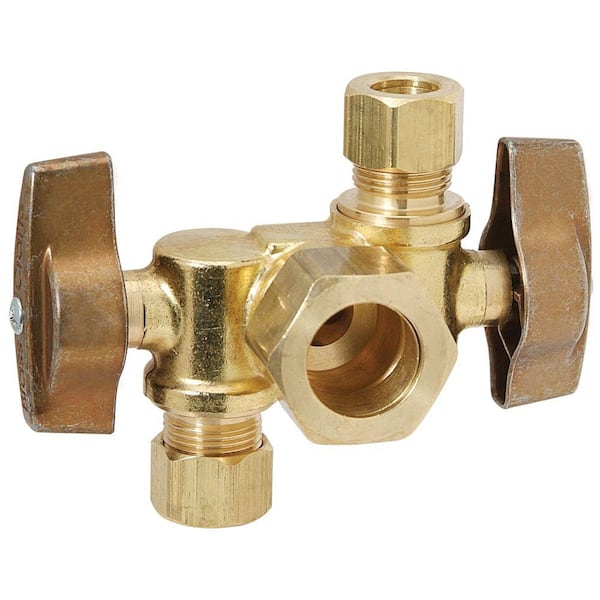

1/2 in. Nominal Comp Inlet x 3/8 in. OD Comp x 3/8 in. OD Comp Dual Outlet Dual Shut-Off 1/4-Turn Angle Ball Valve
- Angle ball valve compatible with copper and PEX
- Smooth on/off flow control with a quarter-turn 90° handle
- Brass ball ensures smooth operation without freeze-ups
- View More Details
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase.
Ask about this product
Get an answer now with AI
Magic Apron Assistant is an AI virtual assistant. By proceeding, you consent to the recording and use of your information by The Home Depot (and authorized third parties). More information
Product Details
About This Product
BrassCraft 1/2 in. Nominal Compression Inlet x 3/8 in. OD Compression x 3/8 in. OD Compression Dual Outlet, Dual Shut-Off 1/4-Turn Angle Ball Valve controls water flow to household plumbing fixtures. The angle valve is most often used where the water pipe enters the room from the wall. The dual outlet allows 2 independent supply lines to be attached to a single valve. The dual shut-off allows you to turn off the water to one source while working on another. Ideal for adding dishwashers, ice makers, water filters and instant hot water dispensers to existing water supply. with a 90 turn of the valve handle, you are able to stop or start the flow of water leading to the plumbing fixture, allowing for maintenance and repair without shutting off the water to the entire home.
Highlights
- Compatible with copper and PEX (PEX installations require a stainless steel tube insert)
- Allows independent flow control to multiple appliances or fixtures
- Ideal for adding dishwashers, ice makers, water filters and instant hot water dispensers to existing water supply
- Smooth, quarter-turn operation, on/off flow control with a 90 turn of the handle
- Machined body provides strength, durability and long-lasting performance
- Brass ball ensures smooth operation without freeze-ups even after long periods without use
- Rough brass
- Easy-to-remove handle protects against accidental operation during rough-ins
- Pressure rating: 125 psi maximum
- Temperature rating: 40°F to 180°F
- IAPMO and CSA listed to ASME A112.18.1/CSA B125.1
- No-lead certified
- Return Policy
Product Information
Specifications
Dimensions
Inlet Diameter (In.) | 1/2 |
|---|---|
Outlet 1 Diameter (In.) | 1/2 |
Outlet 2 Diameter (In.) | 3/8 |
Outlet Diameter (In.) | 1/2 |
Product Length (in.) | 3.35 in |
Details
Application | Potable Water |
|---|---|
Color/Finish | Deep Yellow |
Compatible Pipe Material | Copper |
Compatible Product | Faucet, Ice Maker, Other, Refridgerator |
Connection | Comp x Comp x Comp |
Features | Lead Free |
Indoor/Outdoor | Indoor |
Material | Brass |
Maximum Pressure (PSI) | 125 PSI |
Maximum Working Temperature (F) | 180 |
Pack Size | 1 |
Returnable | 90-Day |
Valve Configuration | Angle |
Warranty / Certifications
Manufacturer Warranty | Limited Manufacturer Warranty |
|---|
Questions & Answers
Can this be used for cold water?
Yes, this water stop is rated for water temperatures from 40-180 degrees Fahrenheit.
Can I use this on CPVC pipes?
Hello, Thank you for your question. We would require more information to determine if the product in question is designed for that use. Please contact our Customer Experience Team at 877-272-7755 and reference this review.
What's the correct way to connect to Pex-A/Propex/Expansion Pex?
Hello, Thank you for your question. We would require more information to determine if our Valve (or other product) is designed for that use. Please contact our Customer Support Team at 877-277-7755 and reference this review.
This is for a compression fitting to copper. To transition to Pex, I would suggest a copper/pex stubout.
Will this valve work with a pvc supply line
Hello, Thank you for your question. We would require more information to determine if our Connector (or other product) is designed for that use. Please contact our Customer Support Team at 877-277-7755 and reference this review.
What is "1/2 in. Nominal Comp Inlet x 3/8 in". What are the threads/OD on the compression nut? Can I connect the Inlet threats to a "1/2 in. Female Pipe Thread Adapter 90-Degree Drop-Ear Elbow"
Hello, Thank you for your question. We would require more information to determine if our Connector (or other product) is designed for that use. Please contact our Customer Support Team at 877-277-7755 and reference this review.
How long is the manufacturers warranty?
Hello, Thank you for your question. We would require more information to determine if our Connector (or other product) is designed for that use. Please contact our Customer Support Team at 877-277-7755 and reference this review.
1 description shows 3/8" O.D. outlets, another area shows the R1 version has 3/8 and 1/2" outlets. Is the huge price difference because the "R" suffix item is Red Brass and the R1 is yellow brass which has less copper & is not as corrosion resistant?
Hello, Thank you for your question. We would require more information to determine if our Connector (or other product) is designed for that use. Please contact our Customer Support Team at 877-277-7755 and reference this review.
What is the difference between this model KTCR1901DVX R1 and the other model KTCR1901DVX R which is more expensive? This model has a maximum working temperature of 140 degrees while the other one has a maximum working temperature of 180 degrees.
The suffix at the end of the model number is the packaging type.
Hello, Thank you for your question. We would require more information to assist you. Please contact our Customer Support Team at 877-277-7755 and reference this review.
The difference is about 20$ and 40 degrees.
