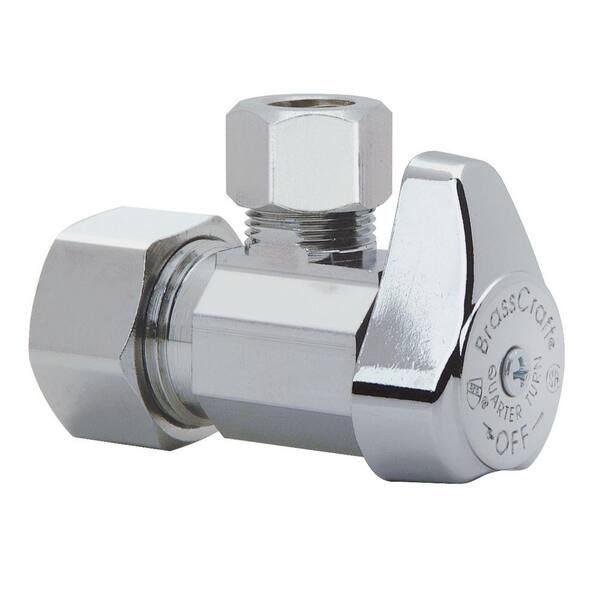

1/2 in. Nominal Compression Inlet x 3/8 in. O.D. Compression Outlet Brass 1/4-Turn Angle Valve (5-Pack)

(34)Questions & Answers (2)
Contains 5 units ($7.79 /unit)
$38.93
Apply Now
Pay $13.93 after $25 OFF your total qualifying purchase upon opening a new card. info
Apply for a Home Depot Consumer Card
  • Angle valve compatible with copper or PEX (requires tube insert)
  • Easy to install with easy-to-remove handle
  • Designed for strength, durability, and long-lasting performance
  • View More Details
Store
0 in stock
caret

Product Details

BrassCraft 1/2 in. nominal compression inlet x 3/8 in. O.D. compression outlet 1/4-turn angle valve controls water flow to household plumbing fixtures - faucets, toilets, dishwashers, icemakers, washing machines, etc. The angle valve is most often used where the water pipe enters the room from the wall. With a 90° turn of the valve handle, you are able to stop the flow of water leading to the plumbing fixture, allowing for maintenance and repair without shutting off the water to the entire home. BrassCraft's G2 series design features a 1-piece shut-off mechanism that provide years of smooth, 1/4 turn operation without freeze-ups even after long periods of non-use. Chrome plated for corrosion resistance and refined appearance. BrassCraft G2 series valves are 100% leak tested to ensure reliable, leak-free operation.
  • Contractor pack includes 5 individually tray valves
  • Compatible with copper or PEX pipe (PEX installations require a stainless steel tube insert, not included)
  • Smooth, on/off flow control with a 90° turn of the handle
  • 1-piece shut-off mechanism ensures smooth operation without freeze-ups even after long periods without use
  • Machined, 1-piece brass body ensures strength, durability and long-lasting performance
  • Easy-to-remove handle protects against accidental operation during rough-ins
  • 100% leak tested
  • Chrome-plated brass
  • Temperature rating: 40° to 160° F
  • Pressure rating: 125 psi maximum
  • No-lead certified
  • IAPMO and CSA listed to ASME A112.18.1/CSA B125.1
  • Return Policy

Additional Resources

From the Manufacturer

caret

Specifications

caret

Questions & Answers

2Questions
caret
Q:What is the ball material?
by|Oct 15, 2022
1 Answer
Answer This Question

A:  Hello, Thank you for your question. We would require more information to determine what you need.. Please contact our Customer Support Team at 877-277-7755 and reference this review.

by|Oct 17, 2022
    caret
    Q:Is the product solid brass?
    by|Oct 26, 2015
    3 Answers
    Answer This Question

    A:  The item is made up of chrome plated brass.

    by|May 3, 2023
      1 found this answer helpful

      A:  No it is stainless with brass couples. Fits tight no leaks

      by|Apr 2, 2019

        A:  The brass parts are the housing, nuts, sleeves and handle. The ball and shaft are probably nylon, definitely not metal or pvc, manufacturer would be better to answer this question but it looks and feels like nylon.

        by|Oct 9, 2018
