#1 Home Improvement Retailer

Internet # 202047058

Model # OCR19X C1

Store SKU # 235674

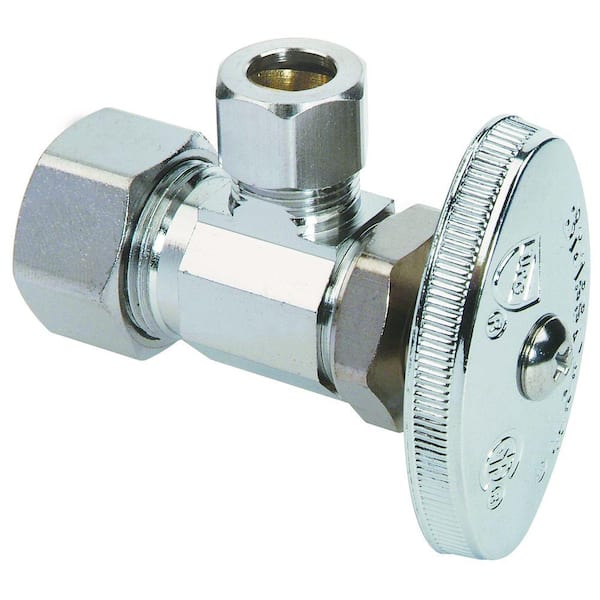

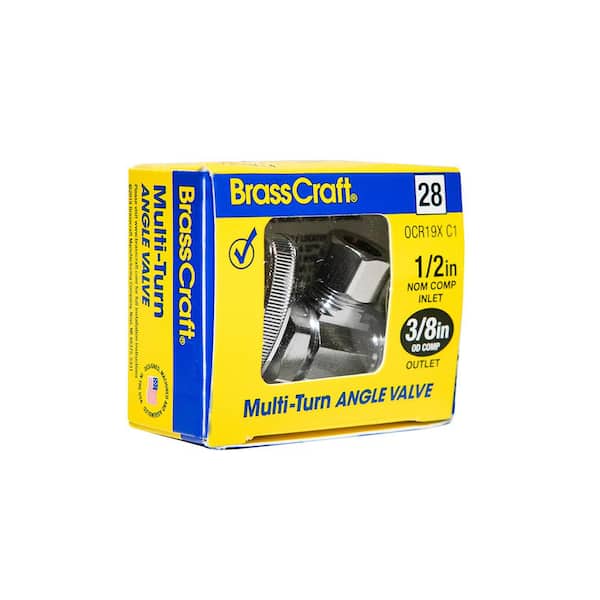

1/2 in. Nominal Compression Inlet x 3/8 in. O.D. Compression Outlet Multi-Turn Chrome Plated Angle Valve

$9.94
Buy 20 or more $4.97 /unit
  • Controls water flow to household plumbing fixtures
  • For use with faucets, toilets, dishwashers and icemakers
  • Easy repair without shutting off the water to your home
  • View More Details
Store
0 in stock
icon
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase. Read Return Policy
caret

Product Details

BrassCraft 1/2 in. Nominal Compression Inlet x 3/8 in. O.D. Compression Outlet Multi-Turn Angle Valve controls water flow to household plumbing fixtures - faucets, toilets, dishwashers, icemakers, washing machines, etc. The straight valve is most often used where the water pipe enters the room from the floor. With a few turns of the valve handle, you are able to stop the flow of water leading to the plumbing fixture, allowing for maintenance and repair without turning off water to the entire home.
  • Compatible with copper or PEX (PEX installations require a stainless steel tube insert)
  • Machined, 1-piece body construction for strength, durability and long-lasting performance
  • Easy-to-remove handle protects against accidental operation during rough-ins
  • Multi-turn operation means water flow control with only a few turns of the handle
  • Oval-knurled handle provides a secure grip for on/off operation
  • Chrome-plated brass
  • Temperature rating: 40° to 160° F
  • Pressure rating: 125 psi maximum
  • No-lead certified
  • IAPMO and CSA listed to ASME A112.18.1/CSA B125.1
  • Return Policy
  • California residents

Additional Resources

From the Manufacturer

caret

Specifications

Dimensions: H 2.75 in, W 2.25 in, D 1.19 in

Dimensions

Inlet Diameter (In.)1/2Inlet Size1/2 In.
Outlet Diameter (In.)3/8Product Depth (in.)1.19 in
Product Height (in.)2.75 inProduct Length (in.)2.75 in
Product Width (in.)2.25 inValve Inlet Diameter (in.)1/2

Details

ApplicationPotable WaterColor/FinishChrome
Color/Finish FamilyBrassCompatible Pipe MaterialCopper
Compatible ProductFaucet, Ice Maker, Other, Washing MachineConnectionComp x Comp
FeaturesLead FreeIndoor/OutdoorIndoor, Outdoor
Inlet Fitting End TypeCompressionMaterialBrass
Maximum Pressure (PSI)125Maximum Working Temperature (F)160
Outlet Fitting End TypeCompressionPack Size1
Product Weight (lb.).20611 lbReturnable90-Day
Stop Valve TypeAngleValve ConfigurationAngle
Valve ConnectionCompressionValve TypeStop

Warranty / Certifications

Manufacturer WarrantyLimited Manufacturer Warranty
caret

Questions & Answers

44Questions
caret
Q:In product description it says “ Easy repair without shutting off the water to your home”. Is it anywhere explanation how to do it? Thanks.
by|Nov 29, 2023
1 Answer
Answer This Question

A:  Hello, Thank you for your question. We would require more information to determine what you may need (or other product) is designed for that use. Please contact our Customer Support Team at 877-277-7755 and reference this review.

by|Nov 29, 2023
    caret
    Q:If I turn CCW too far will it spring a leak? It does not seem to be open and I keep turning it CCW but am nervous that at some point turning it too far will create a leak.
    by|Nov 23, 2023
    0 Answer
    Answer This Question
    caret
    Q:Is there a rubber gasket inside to seal when you shut the valve?
    by|Nov 1, 2023
    1 Answer
    Answer This Question

    A:  Thank you for your question. We would require more information to determine if our Supply Stiop is designed for that use. Please contact our Customer Support Team at 877-277-7755 and reference this review.

    by|Nov 1, 2023
      caret
      Q:Water continues to off & on one toilet bowl is full. Is it the water valve?
      by|Oct 27, 2023
      2 Answers
      Answer This Question

      A:  Hello, Thank you for your question. We would require more information to determine if our Connector (or other product) is designed for that use. Please contact our Customer Support Team at 877-277-7755 and reference this review.

      by|Oct 28, 2023

        A:  Hi Elijah. Thank you for shopping at The Home Depot. No, it is not the supply valve which only provides the source of the water. It is most likely your flapper that is leaking. Check to make sure the chain on the flapper has not gotten lodged under the flapper. https://www.homedepot.com/p/Fluidmaster-3-in-Universal-Adjustable-Toilet-Tank-Flapper-5403/202191768 Please let us know if we can be of further assistance. Rick_HD_OC

        by|Oct 27, 2023
        Showing 1-4 of 44
        caret

        Customer Reviews

        4.6 out of 5
        (1,044)
        • 4.6
          out of 1,044 reviews
        • 90% recommend this product
        Filter by:
        Showing 1-10 of 1,044 reviews
        by
        • Verified Purchase
        New value leaking from screw hole for handle
        Installed this value recently and though everything was good. Checked on it a while later to make sure it did not have any small leaks. Water was dripping from the bottom of the handle which seemed odd as a stem leak from the a loose packing nut should drip from the packing nut. Took the screw holding the handle off to discover a steady stream of water coming out of the screw hole for the handle. Picture attached. Not sure how that can even happen unless the plastic stem is cracked. Taking it off and returning it.
        by
        Response from BrassCraft MfgAug 10, 2021
        HI Eric
        Thank you for taking the time to tell us about your recent experience with our Multi-Turn Angle Valve. It is through your feedback that we are able to improve upon our products. We will be sure to share your experience with our quality department. If you have any questions or have any other feedback, please contact our Customer Support Team at 877-272-7755.
          1 found this review helpful
          Junk
          This valve is cheap junk with low quality parts, construction and plastic stem. I cannot believe that HomeDepot does not sell any alternatives to it. The best case scenario for it is a cheap pipe to faucet connector and a flow restrictor. However, when it comes to the real purpose of it - locally shutting off water for plumbing repair/upgrade the valve utterly fails. I had two of these installed side by and side for several years and both failed to shut off the water and it wasn’t just a tiny trickle. Additionally, after trying to shut off the water one developed a leak at the stem. I took both apart and the images show that the seat washer came apart in both valves. The actual plastic stem had the thread pieces broken off in both valves.
          by
          Response from BrassCraft MfgNov 16, 2020
          Hello,

          We are sorry to hear of your experience with our angle valve. We would like to help you resolve your problem. Please call one of our Customer Service Representatives toll-free at 877-272-7755. Thank you for letting us know you had an issue. We look forward to assisting you.

          Thank you,
          BrassCraft
            12 found this review helpful
            Great product works good
            Great product works good
            by
            • Pro
            • Verified Purchase
            • Recommended
            Easy to install. Works good.
            Easy to install. Works good.
            by
            • Pro
            • Verified Purchase
            • Recommended
            I needed to replace the original ones and these were perfect & easy to install
            I needed to replace the original ones and these were perfect & easy to install
            by
            • Verified Purchase
            • Recommended
            1 found this review helpful
            Easy to use, very convenient from the Home Depot I can just pick up over there
            Easy to use, very convenient from the Home Depot I can just pick up over there
            by
            • Verified Purchase
            • Recommended
            Perfect replacement, easy to install and fixed the drip!
            Perfect replacement, easy to install and fixed the drip!
            by
            • Verified Purchase
            • Recommended
            My made in China BrassCraft valve failed at only 6 years old in a way that caused a huge amount o...
            My made in China BrassCraft valve failed at only 6 years old in a way that caused a huge amount of problems. The rubber "washer" that controls the water flow self destructed and broke into pieces inside the valve. That meant you could no longer shut off the valve AND pieces of the washer went into the kitchen faucet and dishwasher and messed both of those up. So basically a simple $8 valve created a full day of DIY work and what would have been hundreds of dollars in a plumber's time. It required taking apart the single control kitchen faucet and replacing the cartridge valve. It also required removing the dishwasher and and clearing the rubber bits out of the inlet solenoid valve. This was a builder installed valve. And, after what happened, I would never buy a BrassCraft valvee. BrassCraft is Chinese junk.
            by
            Response from BrassCraft MfgMay 31, 2019
            We regret to hear of your experience. It is important to note that the BrassCraft valve installed in your kitchen is Designed, Machined and Assembled in the United States of America. We take great pride in our US manufacturing facilities. The BrassCraft brand has been the professional's choice for more than 70 years because of our quality. That being said, we would like to hear more about your experience. Please give our Customer Support Team a call toll-free at 877-272-7755 and reference this review.
              14 found this review helpful
              Easy to install. No issues. It has been installed for about a week now with no leaks.
              Easy to install. No issues. It has been installed for about a week now with no leaks.
              by
              • Verified Purchase
              • Recommended
              1 found this review helpful
              Showing 1-10 of 1,044 reviews

              Compare Similar Items

              current product

              Connection

              Comp x Comp

              Comp x Comp

              FIP x Comp

              Comp x Comp x Comp

              Material

              Brass

              Brass

              Brass

              Brass

              Inlet Diameter (In.)

              1/2

              1/2

              1/2

              1/2

              Outlet Diameter (In.)

              3/8

              1/2

              1/2

              3/8

              Compatible Pipe Material

              Copper

              Copper

              Galvanized malleable iron

              Copper
