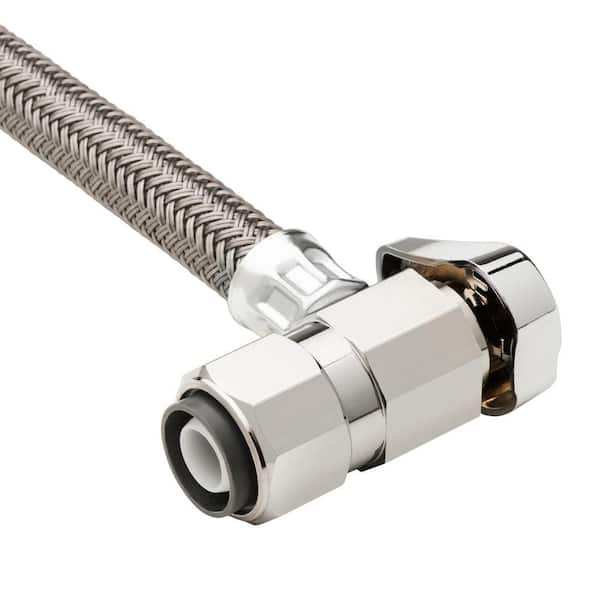

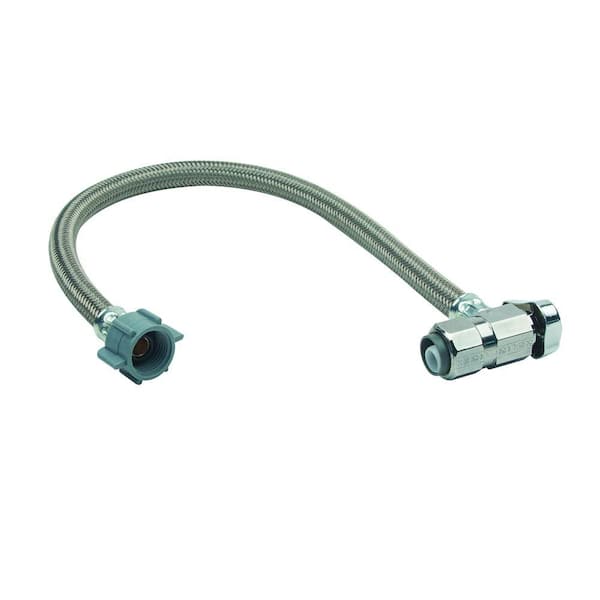

1/2 in. Nominal Push Connect x 1/2 in. FIP x 20 in. SpeediOne Braided Faucet Connector and 1/4-Turn Angle Valve
- Push to Connect system, quick and easy installation in seconds
- Braided polymer design doesn't kink or crimp
- Built to last with harsh water conditions
- View More Details
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase.
Ask about this product
Get an answer now with AI
Magic Apron Assistant is an AI virtual assistant. By proceeding, you consent to the recording and use of your information by The Home Depot (and authorized third parties). More information
Product Details
About This Product
BrassCraft's push connect one-piece water supply combines their trusted brass water valve with their flexible braided polymer connector for one quick easy-to-install solution. BrassCraft's one-piece connection features push connect technology on the valve inlet and a hand-tighten wing nut on the outlet to provide a significant savings in installation time and cost. Push connect valve inlet requires no special tools to install and comes equipped with a pre-inserted tube stiffener to make the product ideal for copper, PEX and CPVC piping systems. The braided polymer fibers of the connector are designed to bend freely without kinking or crimping in tight quarters and resist corrosion caused by chemicals found in common household, tile and glass cleaners. In addition, its reinforced inner hose resists corrosion under harsh water conditions.
Highlights
- 1-piece unit combines valve and supply line
- Saves time with one less connection
- No special installation tools required
- Installation ready with pre-inserted tube stiffener
- Fast, reliable and secure
- Compatible with copper, PEX and CPVC
- Remove with combination removal tool or 5/8 in. open end wrench
- Connector bends freely without kinking or crimping in tight quarters
- No-lead certified
- IAPMO and CSA listed to ASME A112.18.1/CSA B125.1
- Return Policy
- California residentssee Prop 65 WARNINGS
Product Information
Specifications
Dimensions
Inlet Diameter (In.) | 1/2 |
|---|---|
Outlet Diameter (In.) | 3/8 |
Product Length (in.) | 20.55 in |
Details
Application | Potable Water |
|---|---|
Color/Finish | Silver |
Compatible Pipe Material | Multi-Purpose |
Compatible Product | Faucet, Ice Maker, Other |
Connection | PTC x FIP |
Features | Lead Free |
Indoor/Outdoor | Indoor, Outdoor |
Material | Brass |
Maximum Pressure (PSI) | 125 PSI |
Maximum Working Temperature (F) | 160 |
Pack Size | 1 |
Returnable | 90-Day |
Valve Configuration | Angle |
Warranty / Certifications
Manufacturer Warranty | Limited Manufacturer Warranty |
|---|
Questions & Answers
Can this be used on a tankless water heater?
There are a lot of variables in that question. Would it be used on the inlet or the outlet? What temperature is the water heater being used at? The better option would be a corrugated stainless steel water heater connector. You can call customer service at 877-272-7755 at we can help walk you thru the installation and specifications of the product. Thanks
what pieces do I really need to fit a 31705 31688 RV Toilet Water Valve Kit Fit for thetford and new water supply line. Will a one piece supply line work if I connect an elbo to the pvc water line and shutoff?
I looked up the 31705 31688 and due to the depth of the threaded 1/2" IP fitting I do not know if a faucet connector will thread on to that fill valve, it has a collar that extends past the threads which I believe will interfere with the thread engagement. The push connection will work on 5/8" OD copper, PEX or CPVC. It will not fit on a PVC pipe. If you need further explanation please contact customer service at 877-272-7755. Thanks
Will this valve on 1/2 inch pex-b pipe, on RV plumbing system
Yes this will work on PEX-B plumbing. Just be sure the PEX has a 5/8" OD dimension.
My Pex pipe is 1/2", same diameter as the white plastic inside the inlet. How do I get the pex pipe to push in or do I have the wrong size inlet?
Hello, Thank you for your question. We would require more information to determine if our Connector (or other product) is designed for that use. Please contact our Customer Support Team at 877-277-7755 and reference this review.
Why do you show a toilet installation video for a faucet supply line? Threads to toilet inlet can be different than threads to a faucet inlet. Confusing when comparing pics to product wish to purchase. U do something like this on so many products.
Hello, Thank you for your question. We would require more information to determine what is needed (or other product) is designed for that use. Please contact our Customer Support Team at 877-277-7755 and reference this review.
will this work with pvc
Hello, Thank you for your question. We would require more information to determine if our Connector (or other product) is designed for that use. Please contact our Customer Support Team at 877-277-7755 and reference this review.
using 1/2' galvanized pipe, by sanding it down smoothe can it seal it along with some permatex "form a gaske"t sealer using some
Hello, Thank you for your question. We would require more information to determine if our Connector (or other product) is designed for that use. Please contact our Customer Support Team at 877-277-7755 and reference this review.
Can this be used for a toilet?
Hi Patr, Thank you for your question. This BrassCraft SpeediOne Braided Connector and Valve is designed to connect to faucets with 1/2 in. MIP connections. The PushConnect valve side connects to the water supply. If you have further questions, please contact Customer Service at 1-800-345-3358. -Masco Canada
It does not connect to a glacier bay toilet not sure about other brands.
Viewing 1-8 of 19
Customer Reviews
4.6 out of 5
Loading Recommendations
Compare Key Features
Product Snapshot | |||
|---|---|---|---|
Ideal for quick and easy installations, this push-connect valve and supply line combo saves time and effort. Perfect for DIYers and pros seeking reliable, no-lead certified plumbing solutions. | Ideal for quick and easy installations, this faucet connector with integrated valve saves time and effort. Perfect for DIYers and pros. | Ideal for controlling water flow to fixtures, ensuring easy maintenance and repair without full water shut-off. | Ideal for DIYers and pros seeking easy installation and durable, high-performance brass valves for PEX, copper, CPVC, and PE-RT pipes. |
Valve Type | |||
Supply Stop | Stop | Ball valve | Stop |
Material | |||
Brass | Brass | Brass | Brass |
Size Compatibility | |||
Fits standard 1/2 in. pipe sizes | Fits standard 1/2 in. pipe sizes | 1/2 in. Inlet x 3/8 in. Outlet | 1/2 in. |
Maximum Pressure Rating | |||
125 PSI | 125 PSI | 125 psi | 125 psi |
Corrosion Resistance | |||
Related Products

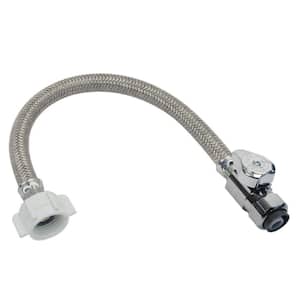

1/2 in. Nom Push Connect x 7/8 in. Ballcock x 12 in. SpeediOne Braided Toilet Connector and 1/4-Turn Straight Valve
BrassCraft has created an easy-to-install, one-piece connection. By combining our trusted bass supply stops with our dependable braided, vinyl and stainless steel connector - the results is a quick and easy installation. One-piece connectors are available in a wide variety of options for faucet, toilet and dishwasher applications.
1/2 in. SharkBite Max Push-to-Connect x 7/8 in. Ballcock x 16 in. Brass Angle Stop Toilet Connector
SharkBite Max push-to-connect stop valves are the fastest and easiest way to connect to PEX, copper, CPVC or PE-RT stub-outs, which control and shut off water flow to fixtures or appliances. This newly designed fitting features a stainless-steel collet retainer which delivers additional strength and durability. SharkBite Max fittings and valves don't require a PEX tube liner and a re-engineered body allows you to insert the pipe using less force and greater ease. The single lever quarter turn handle allows for quick control over water flow, especially in tight spaces. No soldering, clamps, unions, glue or special tools required. After inserting the pipe, stainless steel teeth bite down and grip the pipe tightly while a specially formulated O-ring compresses around the pipe to create a watertight seal. The valve can be rotated after installation for quick adjustments and removing the valve is just as fast with a disconnect tool, allowing them to be changed or reused. SharkBite push-to-connect fittings are the fastest when compared to other conventual plumbing methods. All other comparisons relate to first generation SharkBite push-to-connect products.
1/2 in. Push Connect Inlet x 3/8 in. Compression Outlet 1/4-Turn Angle Valve
The 90 degree handle design on the BrassCraft 1/2 in. Nominal Push Connect Inlet x 3/8 in. O.D. Compression Outlet 1/4-Turn Angle Valve allows you to stop the water flow leading to a plumbing fixture without disrupting the entire house flow. The Push Connect valve feature makes installation easy requiring no special tools, soldering or glue for a watertight seal. This angle valve is best used where the water pipe enters the room from the floor and on faucets, toilets, dishwashers, icemakers or washing machines.

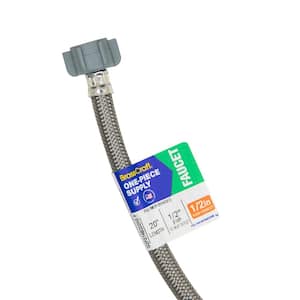

1/2 in. Nominal Push Connect x 1/2 in. FIP x 20 in. SpeediOne Braided Faucet Connector and 1/4-Turn Straight Valve
