Model #G2PS19X C1

Store SKU #1000024073

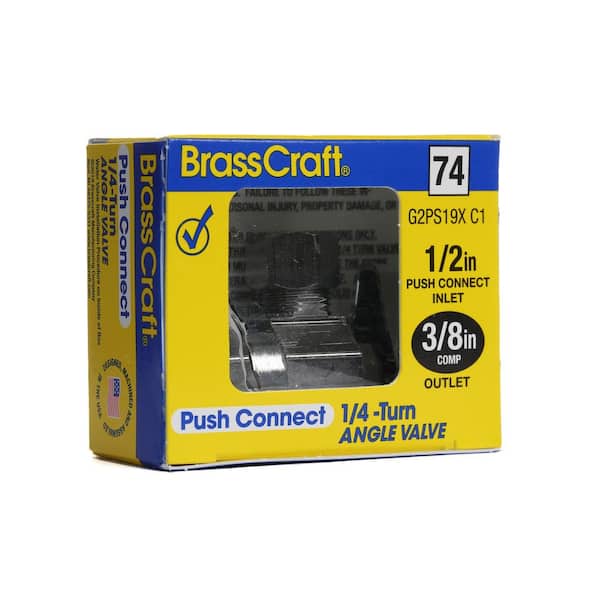

1/2 in. Push Connect Inlet x 3/8 in. Compression Outlet 1/4-Turn Angle Valve

  • Controls water flow to household plumbing fixtures
  • For use with faucets, toilets, dishwashers and icemakers
  • Easy repair without shutting off water to your home
  • See More Details

Frequently Bought Together

+
+
Price:

Product Overview

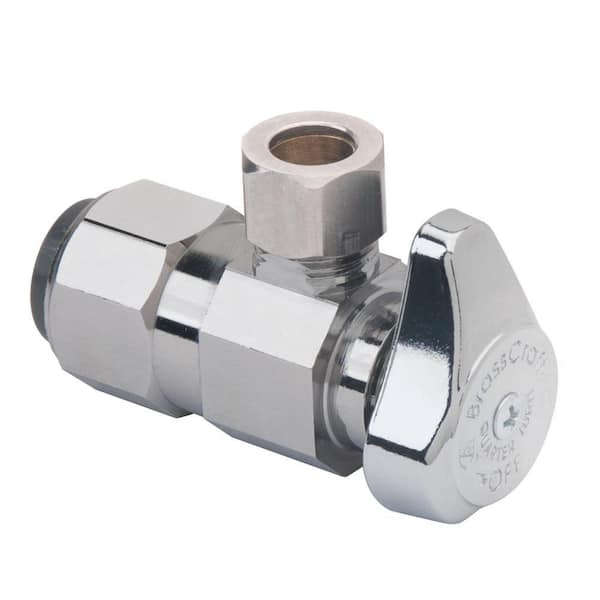

The 90 degree handle design on the BrassCraft 1/2 in. Nominal Push Connect Inlet x 3/8 in. O.D. Compression Outlet 1/4-Turn Angle Valve allows you to stop the water flow leading to a plumbing fixture without disrupting the entire house flow. The Push Connect valve feature makes installation easy requiring no special tools, soldering or glue for a watertight seal. This angle valve is best used where the water pipe enters the room from the floor and on faucets, toilets, dishwashers, icemakers or washing machines.
  • Compatible with PEX, copper and CPVC
  • Smooth, quarter-turn operation, on/off flow control with a 90° turn of the handle
  • Installation ready: requires no special tools, soldering or glue for a watertight seal
  • 1-piece shut-off mechanism ensures smooth operation without freeze-ups even after long periods without use
  • Pre-inserted tube stiffener is "installation ready" for a faster connection
  • Easy-to-remove handle protects against accidental operation during rough-ins
  • Chrome-plated brass
  • Temperature rating: 40° to 140°F
  • Pressure rating: 125 psi maximum
  • No-lead certified
  • IAPMO and CSA listed to ASME A112.18.1/CSA B125.1

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar Supply Stop Valves

current product
1/2 in. Push Connect Inlet x 3/8 in. Compression Outlet 1/4-Turn Angle Valve
1/2 in. Push-to-Connect x 3/8 in. O.D. Compression Chrome-Plated Brass Quarter-Turn Straight Stop Valve1/2 in. Nominal Compression Inlet x 3/8 in. O.D. Compression x 3/8 in. O.D. Compression Dual Outlet Multi-Turn Valve1/2 in. Push-to-Connect x 3/8 in. O.D. Compression x 3/8 in. O.D. Compression Dual Stop Quarter-Turn Angle Stop Valve
BrandBrassCraftSharkBiteBrassCraftSharkBite
Name1/2 in. Push Connect Inlet x 3/8 in. Compression Outlet 1/4-Turn Angle Valve1/2 in. Push-to-Connect x 3/8 in. O.D. Compression Chrome-Plated Brass Quarter-Turn Straight Stop Valve1/2 in. Nominal Compression Inlet x 3/8 in. O.D. Compression x 3/8 in. O.D. Compression Dual Outlet Multi-Turn Valve1/2 in. Push-to-Connect x 3/8 in. O.D. Compression x 3/8 in. O.D. Compression Dual Stop Quarter-Turn Angle Stop Valve
Price
Ratings
(335)
(598)
(226)
(149)
ConnectionPTC x CompPTC x CompComp x Comp x CompPTC x Comp
MaterialBrassBrassBrassChrome
ApplicationPotable WaterPotable WaterPotable WaterPotable Water
Inlet Diameter (In.)1/21/21/21/2
View ProductView ProductView ProductView Product

Specifications

Dimensions

Inlet Diameter (In.)
1/2
Inlet Size
1/2 In.
Outlet Diameter (In.)
3/8
Product Depth (in.)
1.19 in
Product Height (in.)
2.25
Product Length (in.)
2.25
Product Width (in.)
1.19
Valve Inlet Diameter (in.)
1/2

Details

Application
Potable Water
Color/Finish
Chrome
Color/Finish Family
Brass
Compatible Pipe Material
Copper
Compatible Product
Faucet,Toilet,Washing Machine
Connection
PTC x Comp
Features
Lead Free
Indoor/Outdoor
Indoor,Outdoor
Inlet Fitting End Type
Push to Connect
Material
Brass
Maximum Pressure (psi)
125
Maximum Working Temperature (F)
140
Outlet Fitting End Type
Push to Connect
Pack Size
1
Product Weight (lb.)
0.253
Returnable
90-Day
Stop Valve Type
Angle
Valve Configuration
Angle
Valve Connection
Push Connect
Valve Type
Stop

Warranty / Certifications

Manufacturer Warranty
Limited Manufacturer Warranty

Questions & Answers

12Questions60Answers

Can I use this valve for a laundry sink in my unheated garage?

Asked by James May 25, 2021
1
Answer

Hi James, We appreciate your question and interest in our product. This is for indoor use on household plumbing fixtures - faucets, toilets, dishwashers, icemakers, washing machines, etc. The angle valve is most often used where the water pipe enters the room from the wall. Temperature rating: 40° to 160°F and pressure rating: 125 psi maximum. If you need additional support, please contact one of our Customer Service Representatives at 877-272-7755.

Is this valve have a internal ball valve as the sealing mechanism?

Asked by Justin May 24, 2021
1
Answer

Hi Justin, Thank you for your question. This has a stem that is part of the shut-off mechanism by turning the handle a quarter turn. If you have any questions on our products or need assistance in selection, please contact one of our Customer Support Representatives at 877-272-7755.

how far does this need to slide on to the pipe to seat properly ?

Asked by Rod December 19, 2020
5
Answers

About 1/2”- 3/4”

Are your valves and their component parts manufactured in the USA? If not, where are they manuf...

Asked by bobby October 31, 2019
9
Answers

Yes. USA

How is this replaced when it fails?

Asked by Oldrretiredplumber September 9, 2019
5
Answers

used a common sense

How do i get the old valve off the copper tubing to install your push connect?

Asked by Tom September 7, 2019
5
Answers

cut the copper pipe closed to the existing old leaky valve is attached to by using a manual copper cutter.

Why would this be leaking from where the PEX pipe connects and how would I fix this?

Asked by losingwater January 30, 2019
10
Answers

There's an O-Ring on the inside of the fitting that may be damaged, or the fitting is not seated all the way onto the pipe. For a 1/2" dia. pipe it calls approx. 7/8" of seating inside of the fitting. There's a tool that you can use to remove the fitting, it fits over the pipe and you pull on it to push in the sleeve, although I've been able to do it without the tool. If the o-ring is damaged inside the fitting it's best to replace the whole piece.

Can this be used over threaded pipe

Asked by New May 22, 2018
5
Answers

No. It needs a smooth clean surface

Why am I able to rotate it on the pipe after install? Is this normal or is this a problem with the installation?

Asked by Dave April 3, 2018
10
Answers

Yes

Can this shut off valve work with the grey pipe in a mobile home. Like the shark bite ones do.

Asked by GB February 7, 2018
9
Answers

copper, pex and cpvc

1/2 in. Push Connect Inlet x 3/8 in. Compression Outlet 1/4-Turn Angle Valve - page 2

Customer Reviews

  • 4.7
    out of 335 reviews
  • 98% recommend this product
Filter by:
Showing 1-10 of 335 reviews
Stan is the man
Went to our trusty Home Depot to fix a frozen shut off valve for the dish washer. Was trying to figure out what was needed. Stan to the rescue. He said all I needed is this valve and explained everthing to cut the old one off and put this one on. In less than 20 minutes done. No issues and no leaks. Every Home Depot needs to clone Stan. There were people waiting for his advice. He is polite , a gentleman and know his stuff.
by Pete
brass craft Nominal push connect inlet valve
It was quick to install and works perfectly. The home depot representative Aron was very helpful, patient and very knowledgeable. I love Home Depot
by Sunshine
When I asked an associate at home depot to give me a shark bite valve they gave me this brand in ...
When I asked an associate at home depot to give me a shark bite valve they gave me this brand in error. As soon as we installed it it leaked. We even called a plumber over to help us try to remove the valve and he used the valve release tool and it still would not come off. Fortunately the plumber was able to take off the plastic wall covering and pushed the valve back further on the pipe so that stopped the leak. I will never buy this brand again.
by CA2003
Response from BrassCraft MfgMay 18, 2020
Hello CA2003

We are sorry to hear of your experience with our valve. We would like to help you resolve your problem. Please call one of our Customer Service Representatives toll-free at 877-272-7755. Thank you for letting us know you had an issue. We look forward to assisting you.

Thank you,
Dale W.
BrassCraft
1 person found this helpful
It’s easy to use even for a guy lLike me...
It’s easy to use even for a guy lLike me who doesn’t know nothing about Plumping
by Valentino
These valves press on to 1/2" copper pipe nicely. A little force is required to seat them fully, ...
These valves press on to 1/2" copper pipe nicely. A little force is required to seat them fully, but they don't leak when seated!
by Rob
in my travel trailer I installed 2 of these product because I needed something to help Hook up a...
in my travel trailer I installed 2 of these product because I needed something to help Hook up a new kitchen faucet that was for a house because I wanted a nice faucet and this product worked great installed on 3/5/19
by Top
So easy to install. Just takes a minute. Ended up changing all the faucet and tiolet water valves...
So easy to install. Just takes a minute. Ended up changing all the faucet and tiolet water valves in my house once i found out how easy it was.
by Coolbreeze
Was easier to install and works fine.
Was easier to install and works fine.
by DV527
super simple to install. no leaks detected yet. it was so easy, that if this works in the long ...
super simple to install. no leaks detected yet. it was so easy, that if this works in the long term, I'll probably swap all of my other old original valves just to prevent a leak. We swaped the sink and just the turning off and on of the old original valve, it started leaking so we didn't have a choice on this one. This push on valve was a snap. Just cut it clean, use sand paper to clean it up and shove it right on. It does spin once mounted, but the HD sales guy said it would and that is normal, don't worry!
by Dallas
Gotta say, as an old school DIY plumber, these push on fittings are so much better than compressi...
Gotta say, as an old school DIY plumber, these push on fittings are so much better than compression or having to solder. Way quicker easier, and though it freaks me out the fitting can rotate that makes running the connection to the tank so much easier as well. This was installed in a very narrow space, getting a wrench in here would have been a hassle. I actually cut off the old valve which was out a bit from the wall anyway, pressed the new valve on. Oh rats, I should have put a collar on this (not that anyone can see back in here). Oh, I can just pop this valve off, put the collar on and reseat! Beauty! And quarter turn valves are the way to go. Wish these existed 40 years ago!
by NWDYIguy
Showing 1-10 of 335 reviews
