Model #G2PS14X C1

Store SKU #1000024072

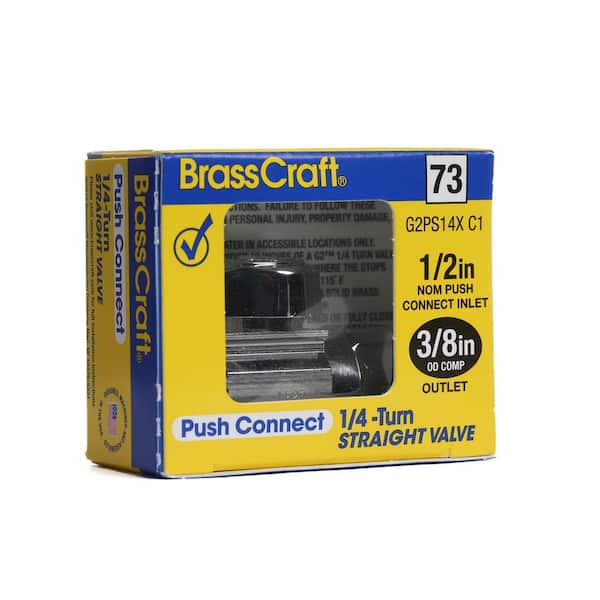

1/2 in. Push Connect Inlet x 3/8 in. Compression Outlet 1/4-Turn Straight Valve

$10.65
  • Quarter turn operation enables swift ON/OFF operation
  • Removable handle prevents unintentional operation
  • Heavy-duty brass structure is resistant to corrosion
Store
0 in stock
Text to Me
caret

Product Details

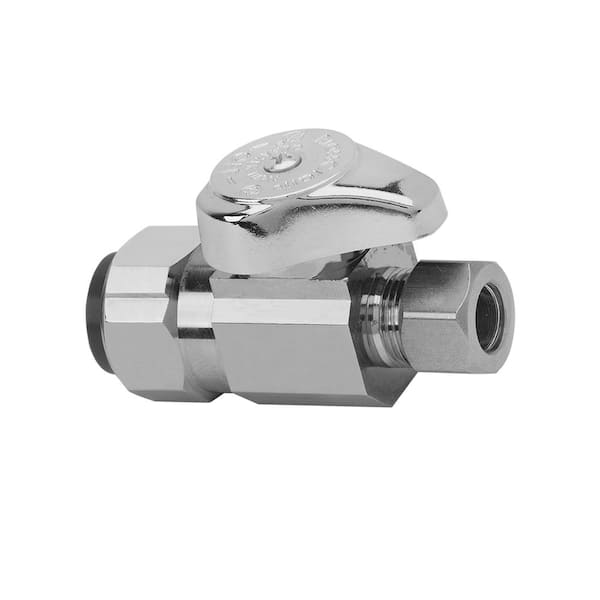

BrassCraft 1/2 in. Nominal Push Connect Inlet x 3/8 in. O.D. Compression Outlet 1/4-Turn Straight Valve controls water flow to household plumbing fixtures. The straight valve is most often used where the water pipe enters the room from the floor. With a 90° turn of the valve handle, you are able to stop the flow of water leading to the plumbing fixture, allowing for maintenance and repair without shutting off the water to the entire home. Push Connect valves are installation ready requiring no special tools, soldering or glue for a watertight seal.
  • Compatible with PEX, copper and CPVC
  • Smooth, quarter-turn operation, on/off flow control with a 90° turn of the handle
  • Installation ready: requires no special tools, soldering or glue for a watertight seal
  • 1-piece shut-off mechanism ensures smooth operation without freeze-ups even after long periods without use
  • Pre-inserted tube stiffener is "installation ready" for a faster connection
  • Easy-to-remove handle protects against accidental operation during rough-ins
  • Chrome-plated brass
  • Temperature rating: 40° to 160°F
  • Pressure rating: 125 psi maximum
  • No-lead certified
  • IAPMO and CSA listed to ASME A112.18.1/CSA B125.1
  • Return Policy

Additional Resources

From the Manufacturer

caret

Specifications

caret

Questions & Answers

5Questions
caret
Q:When the old valve is cut off how long does the stub out need to be to get a tight leak free seal. Sharkbite requires 1.25"
by|Oct 27, 2022
1 Answer
Answer This Question

A:  Good day, Cut Copper, PEX or CPVC tube square, round and free of burrs. If sharp edges are not removed, connection may leak. Make sure stub-out length will accommodate depth of stop and flange. Approx. 1.25". -Masco Canada. BrassCraft

by|Oct 28, 2022
    caret
    Q:Is this the BrassCraft #26?
    by|Feb 22, 2022
    1 Answer
    Answer This Question

    A:  Hello, We appreciate your question and would like to gather more information from you to best assist you. Please contact one of our Customer Support Team Members at 877-272-7755 and reference this review.

    by|Feb 22, 2022
      caret
      Q:Connect leak how do I remove and insult
      by|Mar 21, 2018
      5 Answers
      Answer This Question

      A:  Kathy you can purchase a tool that enables you to press against the locking mechanism and pull the valve off of the pipe. Be sure to shut off the main water supply first. To install or replace the valve make sure you are using the proper size valve for the pipe size of your existing water supply pipe. You can do it!

      by|Apr 2, 2019

        A:  You need the tool to disconnect.

        by|Feb 12, 2019

          A:  There is a 3/4 type tool needed to remove. If you dont have one use a pair of pliers behind the fixture and use pressure to push the sleave up onto the value to remove

          by|Jan 15, 2019

          A:  Hello Kathy-This is very good question. To remove the stop, place by position the stop firmly in your palm. Using the combination removal tool, snap tool onto the tube with lettering facing away from the stop. With two fingers depress removal collar back towards stop and pull from tubing. Ensure that the 3/8" OD side on the tool is facing away from the palm. If you can not find the removal tool, you can also use an open ended wrench, and use them same method to remove as you would with the removal tool. If you have any other questions or need further assistance, please do not hesitate to contact us at 877-272-7755.

          by|Mar 23, 2018

            A:  You can order a little tool that will remove the valve without cutting or damaging the water line

            by|May 1, 2018
              caret
              Q:Can i use this connector for steel pipe (galvanized pipe) ??
              by|Mar 19, 2018
              5 Answers
              Answer This Question

              A:  Hello Ed-This is a very good question, our G2PS14X C1, 1/2 in. Nominal Push Connect Inlet x 3/8 in O.D. compression outlet 1/4 Turn Straight Valve is compatible with PEX, copper and CPVC. We would not recommend using this push connect with steel pipe/galvanized pipe. Call our Customer Support Team at 877-272-7755 if there is anything we can help you with.

              by|Mar 20, 2018

                A:  no. needed to be pvc or plex

                by|Jul 8, 2020

                  A:  No they are only effective with PEX, CPVC and copper pipe.

                  by|May 8, 2018

                  A:  It's designed to go over half inch or three quarter copper tubing, pex tubing,cpvc piping and even polybutylene piping. Be sure to use the sleeve insert included with the valve when and where it's necessary.

                  by|Apr 2, 2019

                    A:  No different diameter for copper or per only

                    by|Sep 20, 2018
