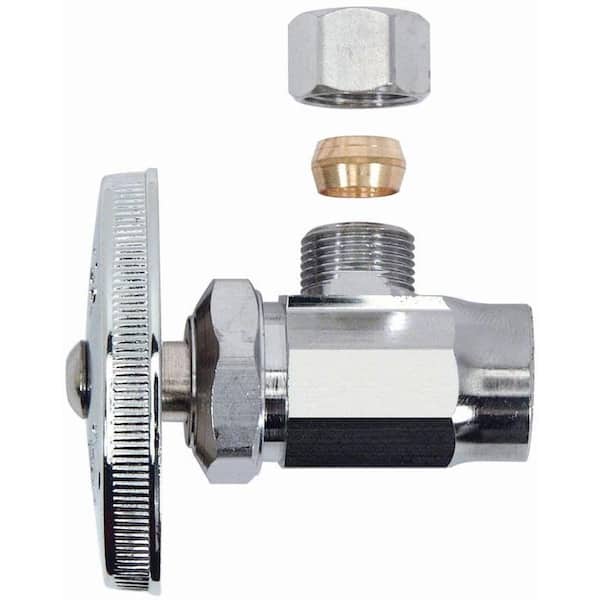

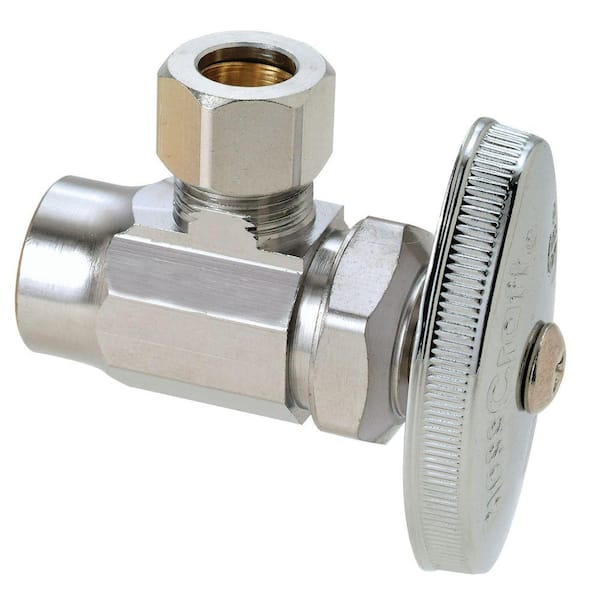

1/2 in. Sweat Inlet x 3/8 in. Compression Outlet Chrome-Plated Multi-Turn Angle Valve

  • Multi-turn function enables easy control of water flow
  • Chrome finish protects it from rust and tarnish
  • Knurled design provides a firm grip during operation
  • See More Details

Frequently Bought Together

+
+
Price:
$751

Product Overview

BrassCraft 1/2 in. Nominal Sweat Inlet x 3/8 in. O.D. Compression Outlet Multi-Turn Angle Valve controls water flow to household plumbing fixtures - faucets, toilets, dishwashers, icemakers, washing machines, etc. The angle valve is most often used where the water pipe enters the room from the floor. With a few turns of the valve handle, you are able to stop the flow of water leading to the plumbing fixture, allowing for maintenance and repair without turning off water to the entire home.
  • Compatible with copper
  • Machined, 1-piece body construction for strength, durability and long-lasting performance
  • Multi-turn operation means water flow control with only a few turns of the key
  • Chrome-plated brass
  • Temperature rating: 40° to 140°F
  • Pressure rating: 125 psi maximum
  • No-lead certified
  • IAPMO and CSA listed to ASME A112.18.1/CSA B125.1

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar Supply Stop Valves

current product
1/2 in. Sweat Inlet x 3/8 in. Compression Outlet Chrome-Plated Multi-Turn Angle Valve
1/2 in. Compression Inlet x 1/4 in. Compression Outlet Multi-Turn Angle ValveClick Seal 1/2 in. x 7/8 in. x 12 in. Push-to-Connect Angle Stop Toilet Connector1/2 in. Nom Push Connect x 7/8 in. Ballcock x 12 in. SpeediOne Braided Toilet Connector and 1/4-Turn Valve
BrandBrassCraftBrassCraftSharkBiteBrassCraft
Name1/2 in. Sweat Inlet x 3/8 in. Compression Outlet Chrome-Plated Multi-Turn Angle Valve1/2 in. Compression Inlet x 1/4 in. Compression Outlet Multi-Turn Angle ValveClick Seal 1/2 in. x 7/8 in. x 12 in. Push-to-Connect Angle Stop Toilet Connector1/2 in. Nom Push Connect x 7/8 in. Ballcock x 12 in. SpeediOne Braided Toilet Connector and 1/4-Turn Valve
Price
$751
$1171
$1453
$1498
Ratings
(53)
(66)
(99)
(78)
ConnectionSweat x CompComp x CompPTCPTC
MaterialBrassBrassBrassBrass
Valve Inlet Diameter (in.).5.5.50.300
Outlet Diameter (In.)3/81/43/47/8
Valve ConfigurationAngleAngleAngleAngle
ApplicationPotable WaterPotable WaterPotable WaterPotable Water
Indoor/OutdoorIndoor,OutdoorIndoor,OutdoorIndoorIndoor
Inlet Diameter (In.)1/21/23/41/2
Inlet Fitting End TypeSweatCompressionPush to ConnectPush to Connect
View ProductView ProductView ProductView Product

Specifications

Dimensions

Inlet Diameter (In.)
1/2
Inlet Size
1/2 In.
Outlet Diameter (In.)
3/8
Product Depth (in.)
2.75 in
Product Height (in.)
2.0200
Product Length (in.)
2.75 in
Product Width (in.)
2.25
Valve Inlet Diameter (in.)
.5

Details

Application
Potable Water
Color/Finish
Chrome
Color/Finish Family
Brass
Compatible Pipe Material
Copper
Compatible Product
Faucet,Ice Maker,Other,Toilet
Connection
Sweat x Comp
Features
Lead Free
Indoor/Outdoor
Indoor,Outdoor
Inlet Fitting End Type
Sweat
Material
Brass
Maximum Pressure (psi)
125
Maximum Working Temperature (F)
140
Outlet Fitting End Type
Compression
Pack Size
1
Product Weight (lb.)
.22078
Returnable
180-Day
Stop Valve Type
Angle
Valve Configuration
Angle
Valve Connection
Sweat
Valve Type
Supply Stop

Warranty / Certifications

Manufacturer Warranty
Limited Manufacturer Warranty

Questions & Answers

2Questions12Answers

I have the same valve which is in need of replacing. Is it easy to replace it?

Asked by Daniel September 9, 2018
7
Answers

No it is not easy to replace. Removing the valve from the attached fitting requires two wrenches and a lot of work. Then you have to doubly make sure it doesn't leak. To avoid the leaking problem. (Since the old valve is already installed) I usually just take out the handle and stem and put the new handle and stem from the new valve in its place. Make sure the black gasket is still attached to the stem. If not you will have to remove the gasket out of the old valve body. If not already in place I will put in a new flex hose. These are quick to install and I have never had one leak on me. I can usually do this in about 15 minutes.

Can the guts be removed completely for sweating?

Asked by WaterMan March 16, 2015
5
Answers

Yep. It's pretty easy too.

Customer Reviews

  • 54 Customer Reviews
  • 4.5 out of 5 stars overall
89% of customers recommended.
Overall Ratings
5star-icon(35)
4star-icon(14)
3star-icon(3)
2star-icon(0)
1star-icon(2)
Sort By:
Greetings, I normally do not use this valve except for replacement parts. Recently I was at a lo...
Greetings, I normally do not use this valve except for replacement parts. Recently I was at a lodge and two of these type were older valves and the handles broke off in my hand. The plastic stems break over time. Not very effective. At the lodge I replace about 24 of this type of valve with the 1/4 turn valves. I am now replacing these type of valves with the 1/4 turn valves. Otherwise, I take out he handle and stem from these valves and put them into already installed valves. It is very efficient, when I am in a hurry, but not a cost savings. I would like it, if the company would just sell the stem and handle separately. It would save me a few dollars. Otherwise I throw the valve's body away. Wasteful. I used two of these valves at my home and took out the old stem and handle and replaced them into the old valve. Much quicker. (picture attached) In the future I will replace this type of valve in my home with the 1/4 turn valve. I normally replace the this valve with the 1/4 turn valve. Hope this helps.
Was this helpful?
0
0
Response from BrassCraft MfgMay 12, 2020
Hello Taz - Thank you for your review. We do have a repair kit for the oval shaped handle - multi turn valves. The part number is BCSR01 and contains the stem, bib washer, bonnet packing and thrust washer. This is available at your local Home Depot store. If you have any questions on our products or need assistance in selection, please contact one of our Customer Support Representatives at 877-272-7755.
Do I really need to review something that has been used for decades and hasn't changed hardly at ...
Do I really need to review something that has been used for decades and hasn't changed hardly at all? The only way these would work better is if they didn't get ridiculously hard to open and close after many years and then immediately spring a leak at that point. Also, they did change a bit, because I tried to swap the guts with the old one so I didn't have to sweat the old valve off and sweat the new one on, but alas, the thread pitch of the valve is slightly different now. :/
Was this helpful?
0
0
Very good thing that you can actually remove the insert before soldering it to the pipe end so th...
Very good thing that you can actually remove the insert before soldering it to the pipe end so there is no chance of heat damage. The bad thing with this one is the plating: it will make it harder to clean up the inside of of the connection so, take your time and do a thorough job, I went one step further, cleaned it up the best I could, then, on the bench I braised it with solder to make sure the internal surface would be fully covered with a thin layer of solder - grab with the plier and do a vigorous shake to clean the excess; do this on the garage/workbench. Then head to the job location and install it. Wait to cool down to room temp to put insert back. Do not use plumbers tape on the compression connection. Do not overtight the insert as it wil make it too hard to turn on or off.
Was this helpful?
0
0
Just needed the shutoff valves themselves so I bought these and took the guts out. Worked fine.
Just needed the shutoff valves themselves so I bought these and took the guts out. Worked fine.
Was this helpful?
0
0
Rating provided by a verified purchaser...
Rating provided by a verified purchaser
Was this helpful?
0
0
Worked well easy to install...
Worked well easy to install
Was this helpful?
0
0
ThIs BrassCraft valve has provided me good service for 19...
ThIs BrassCraft valve has provided me good service for 19 years before it needed replaced. Thought I would just stay with the same valve style and get another 19 years
Was this helpful?
0
0
Rating provided by a verified purchaser...
Rating provided by a verified purchaser
Was this helpful?
0
0
This is an item I purchase regularly from Home Depot,...
This is an item I purchase regularly from Home Depot, and use on many of my jobs.
Was this helpful?
0
0
Was this helpful?
0
0
