Model # HES-6-12WNMX

Store SKU # 1000681613

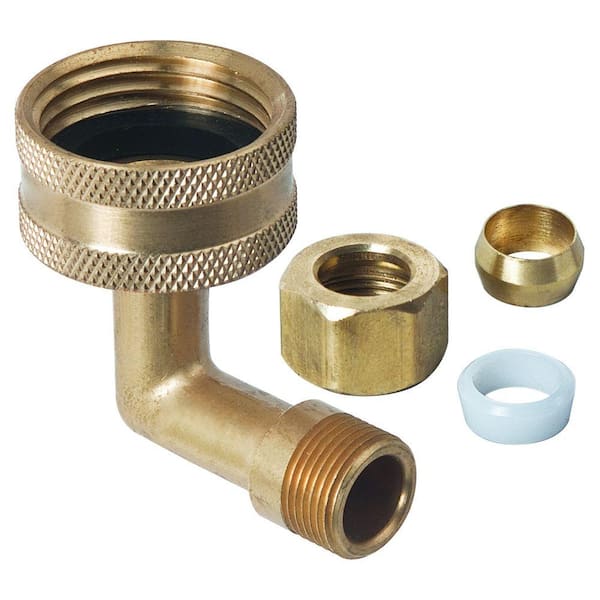

3/4 in. Female Hose Thread Swivel Nut x 3/8 in. O.D. Compression Dishwasher Elbow with Nut, Sleeve and Hose Washer

$9.06
  • Ideal for connecting dishwashers to flexible water connector
  • Lead-free construction is ideal for residential plumbing
  • Withstands work pressure up to 125 PSI
  • View More Details
Store
0 in stock
icon
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase. Read Return Policy
Product Details

About This Product

This BrassCraft 3/4 in. Female Hose Thread, Swivel Nut x 3/8 in. O.D. Compression Dishwasher Elbow connects your dishwasher to your water. It includes a brass compression nut and brass and plastic compression sleeves for copper and PEX installations and it requires a rubber washer before installation (included). This set works with Amana, Whirlpool, Maytag, Kitchen Aid and Jenn-Air dishwashers manufactured after September 2009.

Highlights

  • Used to connect Whirlpool, Maytag, Amana, Kitchen Aid and Jenn-Air dishwashers manufactured after September 2009 to a flexible water connector
  • 3/4 in. garden hose connection to appliance, washer included
  • 3/8 in. compression connection to water supply
  • Includes brass compression nut as well as brass and plastic compression sleeves for copper and PEX installations
  • One-piece body construction for strength, durability and long-lasting performance
  • Swivel hose thread nut allows you to position the fitting to align with water supply
  • High-temperature resistant washer
  • Temperature rating: 40 degrees to 140 degrees F, intermittent to 180 degrees F
  • Pressure rating: 125 PSI maximum
  • No-lead certified
  • Return Policy
  • California residents
     see Prop 65 WARNINGS

Product Information

Internet # 205214970

Model # HES-6-12WNMX

Store SKU # 1000681613

Additional Resources

Shop All BrassCraft
From the Manufacturer

Specifications

Dimensions: H 1.625 in, W 3.000 in, D 1.625 in

Dimensions

Double Fitting Size3/4" x 3/8"Fitting 1 size3/4"
Fitting 2 size3/8"Fitting Size Dimensions3/4" x 3/8"
Product Depth (in.)1.625 inProduct Height (in.)1.625 in
Product Width (in.)3.000 inSingle Fitting Size3/4"

Details

ApplicationPotable WaterBend Degree90 Degree
Color FamilyBrassColor/FinishBrass
Compatible Pipe MaterialBrassConnection 1FHT
Connection 2ODConnectivityThreaded
FeaturesLead FreeFitting or Connector TypeElbow
Fitting/ Connector CollectionSpecialtyMaterialBrass
Maximum working pressure (psi)125Maximum Working Temperature (F)140
Pack Size1Pipe or Fitting Product TypeFittings & Connectors
Product Weight (lb.)0.1273 lbReducing FittingYes
Returnable90-Day

Warranty / Certifications

Manufacturer WarrantyLimited Manufacturer Warranty

Questions & Answers

2Questions
caret
Q:Does 3/4" nut come completely off?
by|Jul 27, 2023
1 Answer
Answer This Question

A:  Hello, Thank you for your question. We would require more information to determine if our Connector (or other product) is designed for that use. Please contact our Customer Support Team at 877-277-7755 and reference this review.

by|Jul 28, 2023
    caret
    Q:3/4" connection to dishwasher hose? 3/8" connection to supply hot water pipe?
    by|Sep 25, 2019
    1 Answer
    Answer This Question

    A:  Hello rina - Thank you for your question. This is a 3/4" female garden hose connection x 3/8" O.D. compression to connect to appliance.Designed for use with dishwasher installations. Swivel hose thread nut allows you to position the fitting to align with your water supply. If you need additional support, please contact one of our Customer Service Representatives at 877-272-7755

    by|Dec 14, 2022
      1 found this answer helpful
      Showing 1-2 of 2

      Customer Reviews

      3.3 out of 5
      • 3.3 out of 4 reviews
      • 0% recommend this product
      Filter by:
      Showing 1-4 of 4 reviews
      by
      • Verified Purchase
      Worked Great. Used on my new dishwasher ...
      Worked Great. Used on my new dishwasher
      by
      • Verified Purchase
      Works, but needs a second washer.
      Attached this to my dishwasher and it leaked all over the place. Turns out the threading on this doesn't actually spin down far enough to make contact with the washer, so the "swivel" is loose and water shoots out under pressure. I was able to resolve this problem by adding a second, thinner washer on top of the one that came with the product. This product is designed poorly, it should either come with a thicker washer or should have more braiding. You can buy this item and make it work, but it isn't going to work as is out of the bag. My wall got pretty wet before I was able to figure out a workable solution.
      by
      Response from BrassCraft MfgJan 20, 2020
      Hello Connor-We are very sorry to hear about your experience with our HES-6-12WNMX.  We are always looking for ways to improve our products. It is through feedback like yours that we are able to improve upon our products. We will address the issue with our quality department. Please contact our Customer Support Team at 877-272-7755 and reference this review.
        1 found this review helpful
        Leaks massively
        Shot water all over the inside of my travel trailer. Do not buy this.
        by
        Response from BrassCraft MfgDec 30, 2019
        Hello Connor - We are verry sorry to hear this was your experience. We’d like the opportunity to speak more with you about it to better resolve the issue. Please contact our Customer Support Team toll-free at 877-272-7755 and reference this review.
          Showing 1-4 of 4 reviews
