#1 Home Improvement Retailer

Internet #202973981

Model #G2R15X C1

Store SKU #390641

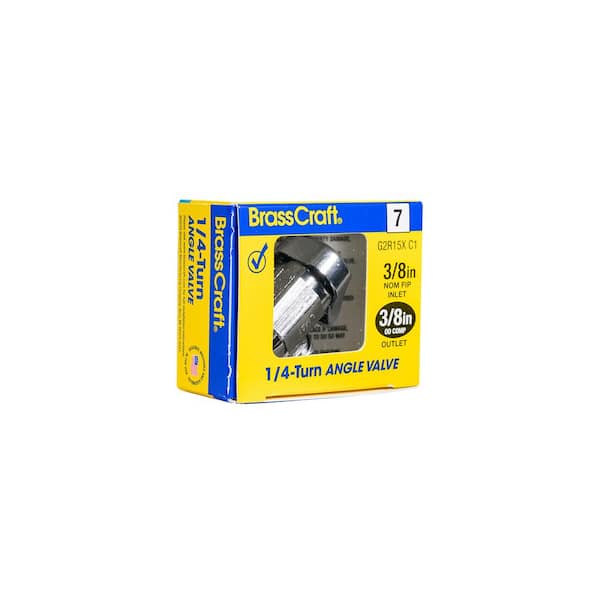

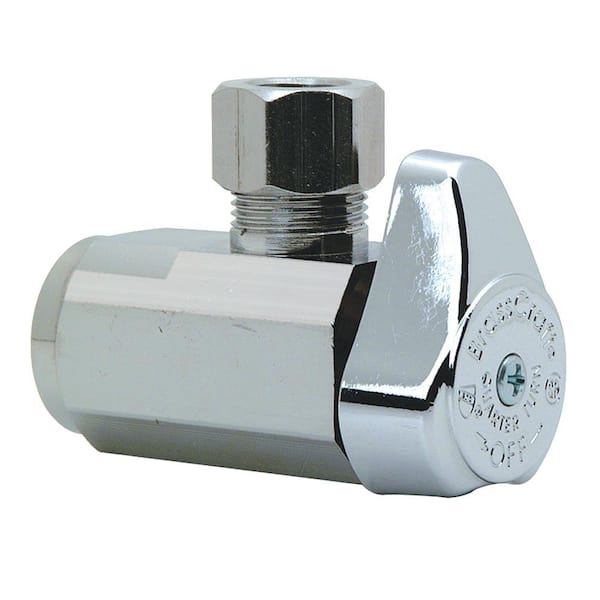

3/8 in. FIP Inlet x 3/8 in. Compression Outlet 1/4-Turn Angle Valve

  • Heavy-duty brass body is resistant to corrosion
  • Chrome finish protects it from rust and tarnish
  • Removable handle prevents unintentional operation
  • See More Details

Frequently Bought Together

+
+
Price:

Product Overview

Control water flow quickly and easily with the BrassCraft 3/8 in. FIP Inlet x O.D. Compression Outlet 1/4-Turn Angle Valve. It controls the water flow to household plumbing fixtures - faucets, toilets, washing machines and more. It's most often used where the water pipe enters the room from the wall. You can stop the flow of water leading to the plumbing fixture with a simple 90-degree turn of the valve handle, allowing for maintenance and repair without shutting off the water to the entire home.
  • Compatible with iron pipe
  • Smooth on/off flow control with a quarter turn (90 degrees ) turn of the handle
  • One-piece shut-off mechanism ensures smooth operation without freeze-ups even after long periods without use
  • Easy-to-remove handle protects against accidental operation during rough-ins
  • One-piece body construction for strength, durability and long-lasting performance
  • Chrome-plated brass
  • Temperature rating: 40 degrees to 140 degrees F
  • Pressure rating: 125 PSI maximum
  • No-lead certified
  • IAPMO and CSA listed to ASME A112.18.1/CSA B125.1

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar Supply Stop Valves

current product
3/8 in. FIP Inlet x 3/8 in. Compression Outlet 1/4-Turn Angle Valve
Top Rated1/2 in. FIP Inlet x 3/8 in. Compression Outlet 1/4-Turn Angle ValveClick Seal 1/2 in. x 7/8 in. x 12 in. Push-to-Connect Angle Stop Toilet Connector1/2 in. Nom Push Connect x 7/8 in. Ballcock x 12 in. SpeediOne Braided Toilet Connector and 1/4-Turn Valve
BrandBrassCraftBrassCraftSharkBiteBrassCraft
Name3/8 in. FIP Inlet x 3/8 in. Compression Outlet 1/4-Turn Angle Valve1/2 in. FIP Inlet x 3/8 in. Compression Outlet 1/4-Turn Angle ValveClick Seal 1/2 in. x 7/8 in. x 12 in. Push-to-Connect Angle Stop Toilet Connector1/2 in. Nom Push Connect x 7/8 in. Ballcock x 12 in. SpeediOne Braided Toilet Connector and 1/4-Turn Valve
Price
Ratings
(152)
(408)
(130)
(105)
ConnectionFIP x CompFIP x CompPTCPTC
MaterialBrassBrassBrassBrass
ApplicationPotable WaterPotable WaterPotable WaterPotable Water
Inlet Diameter (In.)3/81/23/41/2
View ProductView ProductView ProductView Product

Specifications

Dimensions

Inlet Diameter (In.)
3/8
Inlet Size
3/8 In.
Outlet Diameter (In.)
3/8
Product Depth (in.)
1.19 in
Product Height (in.)
1.1875
Product Length (in.)
2.75
Product Width (in.)
2.25
Valve Inlet Diameter (in.)
3/8

Details

Application
Potable Water
Color/Finish
Chrome
Color/Finish Family
Brass
Compatible Pipe Material
Galvanized malleable iron
Compatible Product
Faucet,Ice Maker,Toilet,Washing Machine
Connection
FIP x Comp
Features
Lead Free
Indoor/Outdoor
Indoor,Outdoor
Inlet Fitting End Type
FIP
Material
Brass
Maximum Pressure (psi)
125
Maximum Working Temperature (F)
140
Outlet Fitting End Type
Compression
Pack Size
1
Product Weight (lb.)
0.200
Returnable
90-Day
Stop Valve Type
Angle
Valve Configuration
Angle
Valve Connection
Compression
Valve Type
Stop

Warranty / Certifications

Manufacturer Warranty
Limited Manufacturer Warranty

Questions & Answers

4Questions16Answers

Are rebuild kits available for this valve ? Valve fails to hold back water after a few years.

Asked by Pat August 22, 2020
3
Answers

I am unaware of any rebuild kits for this valve.

Can this valve be "hooked" to an existing valve for hot or cold water under bathroom and kitchen sinks or for diswasher?

Asked by Jose July 27, 2020
4
Answers

If your old valve allows you to screw in a 3/8" galvanized nipple, then it will work. Screw the nipple into the existing valve and then attach this valve to the nipple. If the current valve has a compression fitting thread on it, then you are out of luck.

Will the 3/8 in. FIP inlet thread onto a male threaded 1/2 in. copper pipe?

Asked by Thomas June 19, 2020
4
Answers

no

What does FIP mean

Asked by John January 17, 2018
5
Answers

An FIP is a "female iron pipe," or one in which the threads are on the inside. ... As a female, it accepts the male pipe, which is threaded on the outside. ... Aside from iron pipes, female threads are used in copper, steel, brass, PVC, nylon and bronze pipes.

Customer Reviews

  • 4.7
    out of 152 reviews
  • 96% recommend this product
Filter by:
Showing 1-10 of 152 reviews
This was just what I needed
This was just what I needed
by Nonplumber1
Made in USA
These are a must have if you are going through the process of replacing any faucet or vanity. These are a great replacement for those old crummy multi-turn valves that leak after a few years, or sometimes even few uses. If you can remember "righty tighty", you can easily install these yourself.
by Anthony
great concept, wish i could have found it in a...
great concept, wish i could have found it in a brass product
by HomeDepotCustomer
Rating provided by a verified purchaser...
Rating provided by a verified purchaser
by HomeDepotCustomer
This valve is much easier to turn off and on because it is a 1/4 turn valve rather than the gate ...
This valve is much easier to turn off and on because it is a 1/4 turn valve rather than the gate valve handle, especially since most times access to the valve is often difficult. Make sure the water supply hose and 3/8" inlet are the proper size for your other fittings.
by Cruizn65
Rating provided by a verified purchaser...
Rating provided by a verified purchaser
by HomeDepotCustomer
Rating provided by a verified purchaser...
Rating provided by a verified purchaser
by HomeDepotCustomer
Rating provided by a verified purchaser...
Rating provided by a verified purchaser
by HomeDepotCustomer
Rating provided by a verified purchaser...
Rating provided by a verified purchaser
by HomeDepotCustomer
Worked well, & as intended...
Worked well, & as intended
by HomeDepotCustomer
Showing 1-10 of 152 reviews
