#1 Home Improvement Retailer

Internet #202973985

Model #OR10X C1

Store SKU #390941

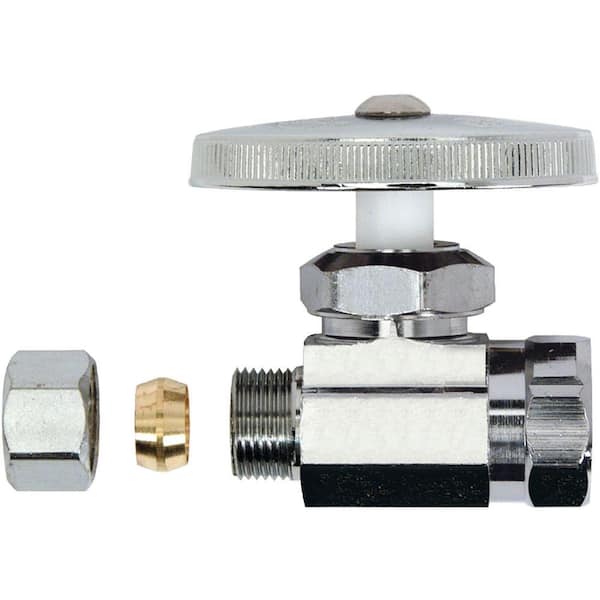

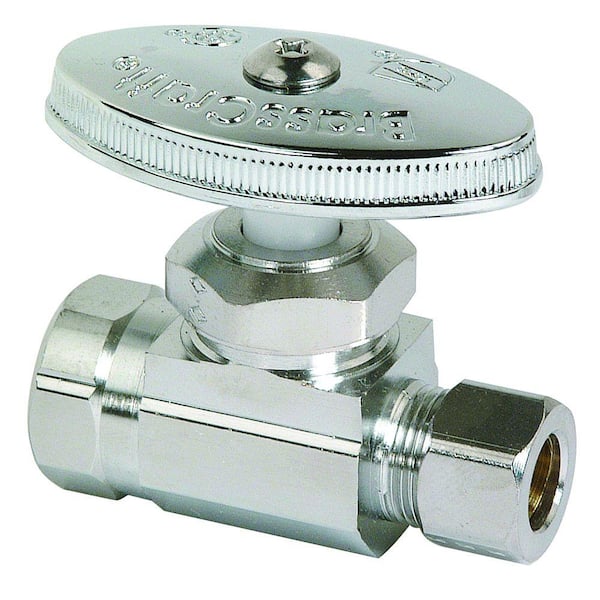

3/8 in. FIP Inlet x 3/8 in. Compression Outlet Multi-Turn Straight Valve

$678
  • Straight valve compatible with iron pipe
  • Machined 1-piece body for strength & long lasting performance
  • Easy use, water flow control with only a few turns of the key
  • View More Details
Store
0 in stock
Text to Me
How to Get It

Frequently Bought Together

+
+
Price:
$678

Product Overview

BrassCraft 3/8 in. FIP Inlet x 3/8 in. O.D. Compression Outlet Multi-Turn Straight Valve controls water flow to household plumbing fixtures - faucets, toilets, dishwashers, icemakers, washing machines, etc. The straight valve is most often used where the water pipe enters the room from the floor. With a few turns of the valve handle, you are able to stop or start the flow of water leading to the plumbing fixture, allowing for maintenance and repair without shutting off the water to the entire home.
  • Compatible with iron pipe
  • Machined, 1-piece body construction for strength, durability and long-lasting performance
  • Easy-to-remove handle protects against accidental operation during rough-ins
  • Multi-turn operation means water flow control with only a few turns of the handle
  • Oval-knurled handle provides a secure grip for on/off operation
  • Chrome-plated brass
  • Temperature rating: 40° to 160°F
  • Pressure rating: 125 psi maximum
  • No-lead certified
  • IAPMO and CSA listed to ASME A112.18.1/CSA B125.1

Additional Resources

From the Manufacturer

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar Shut-off Valves

current product
3/8 in. FIP Inlet x 3/8 in. Compression Outlet Multi-Turn Straight Valve
1/2 in. FIP Inlet x 3/8 in. Compression Outlet Multi-Turn Straight Valve3/8 in. FIP Inlet x 3/8 in. Compression Outlet 1/4-Turn Angle Valve1/2 in. FIP Inlet x 3/8 in. Compression Outlet 1/4-Turn Straight Valve
BrandBrassCraftBrassCraftBrassCraftBrassCraft
Name3/8 in. FIP Inlet x 3/8 in. Compression Outlet Multi-Turn Straight Valve1/2 in. FIP Inlet x 3/8 in. Compression Outlet Multi-Turn Straight Valve3/8 in. FIP Inlet x 3/8 in. Compression Outlet 1/4-Turn Angle Valve1/2 in. FIP Inlet x 3/8 in. Compression Outlet 1/4-Turn Straight Valve
Price
$678
$848
$897
$897
Ratings
(214)
(120)
(190)
(245)
ConnectionFIP x CompFIP x CompFIP x CompFIP x Comp
MaterialBrassBrassBrassBrass
Inlet Diameter (In.)3/81/23/81/2
Outlet Diameter (In.)3/83/83/83/8
Valve ConfigurationStraightStraightAngleStraight
Compatible Pipe MaterialGalvanized malleable ironGalvanized malleable ironGalvanized malleable ironGalvanized malleable iron
Inlet Fitting End TypeFIPFIPFIPFIP
Outlet Fitting End TypeCompressionCompressionCompressionCompression
Maximum Working Temperature (F)160160160160
Indoor/OutdoorIndoor,OutdoorIndoor,OutdoorIndoor,OutdoorIndoor,Outdoor
View ProductView ProductView ProductView Product

Specifications

Dimensions

Inlet Diameter (In.)
3/8
Inlet Size
3/8 In.
Outlet Diameter (In.)
3/8
Product Depth (in.)
1.19 in
Product Height (in.)
1.188
Product Length (in.)
2.75
Product Width (in.)
2.25
Valve Inlet Diameter (in.)
3/8

Details

Application
Potable Water
Color/Finish
Chrome
Color/Finish Family
Brass
Compatible Pipe Material
Galvanized malleable iron
Compatible Product
Faucet,Ice Maker,Other,Refridgerator,Washing Machine
Connection
FIP x Comp
Features
Lead Free
Indoor/Outdoor
Indoor,Outdoor
Inlet Fitting End Type
FIP
Material
Brass
Maximum Pressure (psi)
125
Maximum Working Temperature (F)
160
Outlet Fitting End Type
Compression
Pack Size
1
Product Weight (lb.)
0.234
Returnable
90-Day
Stop Valve Type
Straight
Valve Configuration
Straight
Valve Connection
Compression
Valve Type
Stop

Warranty / Certifications

Manufacturer Warranty
Limited Manufacturer Warranty
