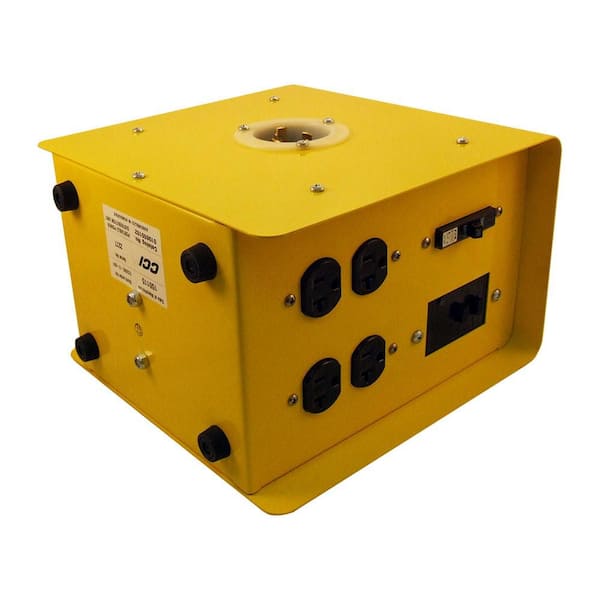

CCI Mini X-Treme Box Compact Power Distribution Center
0029892054557

CCI

Mini X-Treme Box Compact Power Distribution Center

$17463 /each

Overview

The Mini X-Treme Box provides more compact and less costly work-site power than popular full size models. These units work ideally where the only available power is from portable generators, dryer or range outlets. For a more compact, easier to handle, unit is desired to safely expand and distribute power on jobsites or homes.
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Product Overview

The Mini X-Treme Box provides more compact and less costly work-site power than popular full size models. These units work ideally where the only available power is from portable generators, dryer or range outlets. For a more compact, easier to handle, unit is desired to safely expand and distribute power on jobsites or homes.
  • 30 Amp, 125/250-Volt generator and dry outlets, and 50 Amp 125/250-Volt range outlets can now be converted to a GFCI/breaker protected power distribution unit providing standard usable 125-Volt power
  • Box offers a NEMA type-1 enclosure with 4 NEMA 5-20R 20-Amp, circuit breaker and GFCI protected outlets on the front and the same 4 on the back
  • OSHA and NEC compliant, C(ETL) US listed and certified to CAN/CSA
  • Reduces electrical hookup and labor time
  • 8 overload-protected outlets use GFCI and circuit breakers
  • Outlets GFCI protected with open neutral and over-voltage protection
  • Compact size for ease of use
  • Unit can be used in a vertical or horizontal position
  • Used along with CCI restoration adapters, these units are ideal for disaster restoration work where power is limited
  • Click here for more information on Electronic Recycling Programs

Product Overview

Model #: 01980
Internet #: 300083159

The Mini X-Treme Box provides more compact and less costly work-site power than popular full size models. These units work ideally where the only available power is from portable generators, dryer or range outlets. For a more compact, easier to handle, unit is desired to safely expand and distribute power on jobsites or homes.

  • 30 Amp, 125/250-Volt generator and dry outlets, and 50 Amp 125/250-Volt range outlets can now be converted to a GFCI/breaker protected power distribution unit providing standard usable 125-Volt power
  • Box offers a NEMA type-1 enclosure with 4 NEMA 5-20R 20-Amp, circuit breaker and GFCI protected outlets on the front and the same 4 on the back
  • OSHA and NEC compliant, C(ETL) US listed and certified to CAN/CSA
  • Reduces electrical hookup and labor time
  • 8 overload-protected outlets use GFCI and circuit breakers
  • Outlets GFCI protected with open neutral and over-voltage protection
  • Compact size for ease of use
  • Unit can be used in a vertical or horizontal position
  • Used along with CCI restoration adapters, these units are ideal for disaster restoration work where power is limited
  • Click here for more information on Electronic Recycling Programs

Specifications

Dimensions

Product Depth (in.)
6.5625 in
Product Height (in.)
11 in
Product Width (in.)
10 in

Details

Accessory Type
Other Accessories
Returnable
90-Day

Warranty / Certifications

Manufacturer Warranty
1 Year from date of shipment

Specifications

Dimensions

Product Depth (in.)
6.5625 in
Product Height (in.)
11 in
Product Width (in.)
10 in

Details

Accessory Type
Other Accessories
Returnable
90-Day

Warranty / Certifications

Manufacturer Warranty
1 Year from date of shipment

Questions & Answers

How many amps will I be able to use at the same time using this box?

Asked by: Jody
20 amps will be the max.
Answered by: CommunityAnswer
Date published: 2017-09-28

Does it come with a cord to plug into a three wire 30 amp dryer outlet

Asked by: Sparky
No, it does not come with a cord.
Answered by: aecole1
Date published: 2017-10-31

How much sound/noise does it make?

Asked by: John
It makes no sound. It's not a generator; has no moving parts.
Answered by: steved
Date published: 2017-06-14

Is this product weather reazistent and suitable for out door use?

Asked by: bh
NEMA 1 means it is not approved for wet location. Look for NEMA 3R
Answered by: Keith
Date published: 2017-05-17
  • y_2017, m_12, d_12, h_1CST
  • bvseo_bulk, prod_bvqa, vn_bulk_2.0.3
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_4
  • loc_, sid_300083159, prod, sort_[SortEntry(order=NUM_ANSWERS, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=BEST_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=POSITIVE_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=NUM_ANSWERS, direction=DESCENDING)]
  • clientName_homedepot
  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 96ms
  • QUESTIONS, PRODUCT

Customer Reviews

Mini X-Treme Box Compact Power Distribution Center is rated 1.0 out of 5 by 1.
Rated 1 out of 5 by from I expected it to come with a power cord. very... I expected it to come with a power cord. very disapointed
Date published: 2017-10-10
