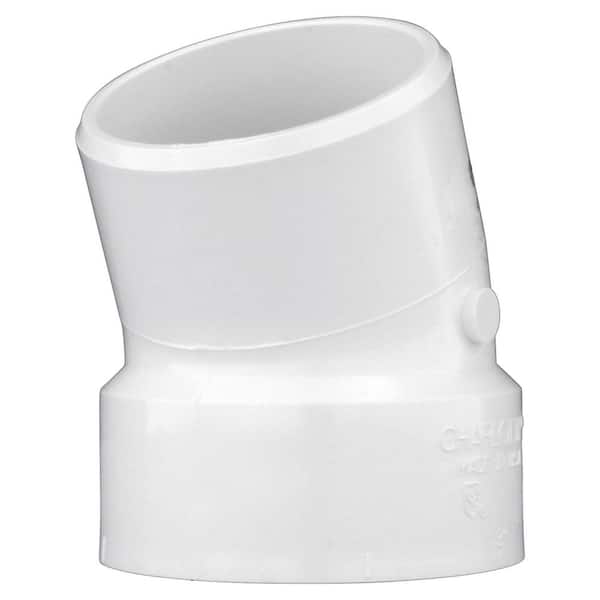

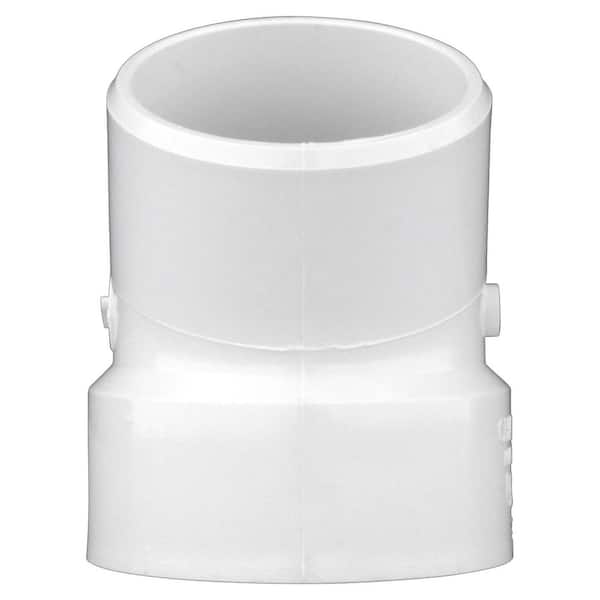

1-1/2 in. PVC DWV 22-1/2 in. Hub x Hub Elbow Fitting

$7.60
  • DWV fittings are white and used in non-pressure applications
  • DWV fittings are installed using solvent cementing
  • DWV fittings are for use where systems won't exceed 140°
  • View More Details
Store
0 in stock
icon
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase. Read Return Policy

Product Details

About This Product

PVC fittings are for drain, waste and vent purposes. They are used in gravity-fed waste elimination systems and are for Non-Pressure systems where temperatures will not exceed 140 degree F. PVC is lightweight and easy to install. They require no special tools for cutting, and can be installed with solvent cementing, threading, flanging, and roll-grooved joining.

Highlights

  • White fittings used in sanitary drain, waste, and vent (DWV), sewer and storm drainage applications
  • Not intended for pressure use
  • Maximum working temperature of 140 degrees Fahrenheit
  • Are used in gravity-fed waste elimination systems and are for Non-Pressure systems
  • Conforms to meet Standards: ASTM D 1784, ASTM D 2665, ASTM D 3311 and NSF 22
  • Require no special tools for cutting and to be installed with solvent cement
  • Return Policy
  • California residents
     see Prop 65 WARNINGS

Product Information

Internet # 203950755

Model # PVC 00326 0600

Store SKU # 921926

Specifications

Dimensions: H 2.250 in, W 2.468 in, D 2.781 in

Dimensions

Double Fitting Size

1-1/2" x 1-1/2"

Fitting 1 size

1-1/2"

Fitting 2 size

1-1/2"

Fitting Size Dimensions

1-1/2" x 1-1/2"

Product Depth (in.)

2.781 in

Product Height (in.)

2.250 in

Product Width (in.)

2.468 in

Single Fitting Size

1-1/2"

Details

Application

Non-Potable Water

Bend Degree

22-1/2 Degree

Color Family

White

Color/Finish

White

Compatible Pipe Material

PVC

Connection 1

Hub

Connection 2

Hub

Connectivity

Solvent Cemented

DWV

DWV

Features

Underground Rated

Fitting or Connector Type

Elbow

Fitting/ Connector Collection

PVC

Material

PVC

Maximum working pressure (psi)

0

Maximum Working Temperature (F)

140

Pack Size

1

Pipe or Fitting Product Type

Fittings & Connectors

Product Weight (lb.)

.11 lb

Reducing Fitting

No

Returnable

90-Day

Schedule Type

Schedule 40

Warranty / Certifications

Manufacturer Warranty

Charlotte Pipe and Foundry Company (Charlotte Pipe) Products are warranted to be free from manufacturing defects and to conform to currently applicable ASTM standards for a period of five (5) years from date of delivery.

Questions & Answers

3Questions
caret
Q:This is a street elbow, right?
by|Mar 19, 2023
1 Answer
Answer This Question

A:  this is indeed a street elbow

by|Mar 20, 2023
    caret
    Q:What are the ID and OD diameters of the the two connectors for this elbow?
    by|Jan 18, 2023
    1 Answer
    Answer This Question

    A:  OD is +/- 3.5 inches. the ID is +/- 3.068 inches.

    by|Oct 28, 2023
      caret
      Q:Is this sch 30
      by|May 10, 2019
      2 Answers
      Answer This Question

      A:  This is sch 40

      by|Jun 9, 2020

      A:  No, this is a Sch 40 PVC DWV elbow. Below is some info pertaining to the differences in the two schedules: Schedule 40 and Schedule 30 are dimensional classifications of pipe and fitting systems. Schedule 30 and Schedule 40 piping systems will have different wall thickness dimensions. Generally, Schedule 40 will have a thicker wall thickness than Schedule 30 products.

      by|May 13, 2019
        Showing 1-3 of 3

        Customer Reviews

        4.6 out of 5

        • 4.6 out of 130 reviews
        • 100% recommend this product
        Filter by:
        Showing 1-10 of 130 reviews
        Great for working in a confined space, expensive
        Sometimes I find the need to create an offset, but don't have much space to do so. A street fitting, like this, can be a solution to such a problem. However, this fitting is twice as much as a standard hub x hub fitting. If I was really paying attention I would have gone with a standard fitting & used a piece of pipe, cut as short as possible, to connect the two.
        by
          • Recommended
          Fit perfectly for the application needed.
          Fit perfectly for the application needed.
          by
          • DIY
          • Verified Purchase
          • Recommended
          by
          • Verified Purchase
          A pvc street 45 for $7.50 is OUTRAGEOUS! Type A price gouging
          by
          • Verified Purchase
          by
          • Verified Purchase
          by
          • Verified Purchase
          by
          • Verified Purchase
          by
          • Verified Purchase
          by
          • Verified Purchase
          by
          • Verified Purchase
          Showing 1-10 of 130 reviews
