#1 Home Improvement Retailer

Internet # 307852153

Model # PVC 02301 0625HD

Store SKU # 1003953650

Store SO SKU #1003933736

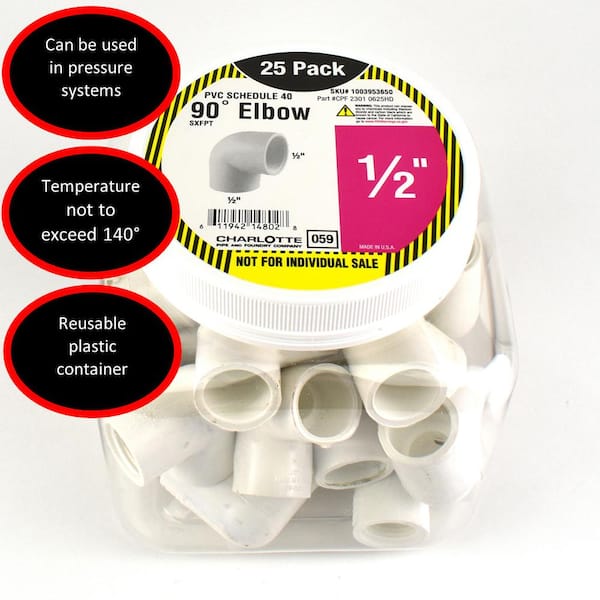

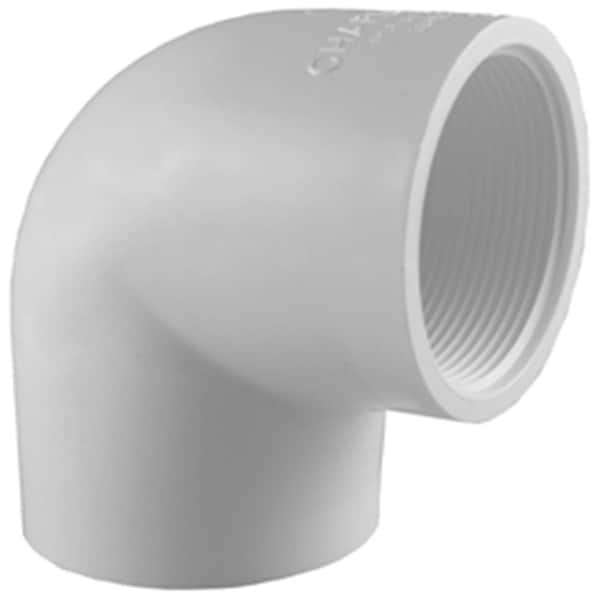

1/2 in. PVC Elbow Socket x FPT Pro Pack (25-Pack)

Contains 25 units (51¢ /unit)
$12.76 /package
  • PVC Sch 40 fittings are white and used in pressure applications
  • Sch 40 fittings are installed using primer and solvent cementing
  • PVC Sch 40 fittings are for use where systems won't exceed 140°
  • View More Details
Store
0 in stock
icon
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase. Read Return Policy
Product Details

About This Product

PVC Sch. 40 fitting that is for pressure systems where temperatures will not exceed 140 degree F. They are highly resilient, with high-tensile and high-impact strength. PVC Sch. 40 has better sound deadening qualities than PVC Sch. 40 DWV Foam Core and ABS Foam Core. Installation requires the use of primer and solvent cement.

Highlights

  • White pipe and fittings with red print
  • Intended for pressure use
  • For use where systems will not exceed 140° F
  • PVC schedule 40 pipe and pressure fittings are used in irrigation, underground sprinkler systems, swimming pools, outdoor applications and cold water supply lines
  • Conforms to meet Standards: ASTM D 1784, ASTM D 2466, NSF 14 and 61
  • Require no special tools for cutting and to be installed with solvent cement
  • +/-0.623" ID and 0.84" OD
  • +/-0.623" ID and 0.84" OD
  • Return Policy
  • California residents
     see Prop 65 WARNINGS

Product Information

Internet # 307852153

Model # PVC 02301 0625HD

Store SKU # 1003953650

Store SO SKU #1003933736

Specifications

Dimensions: H 5.5 in, W 5.5 in, D 5.5 in

Dimensions

Double Fitting Size

1/2" x 1/2"

Fitting 1 size

1/2"

Fitting 2 size

1/2"

Fitting Size Dimensions

1/2" x 1/2"

Product Depth (in.)

5.5 in

Product Height (in.)

5.5 in

Product Width (in.)

5.5 in

Single Fitting Size

1/2"

Details

Application

Non-Potable Water

Bend Degree

90 Degree

Color Family

White

Color/Finish

White

Compatible Pipe Material

PVC

Connection 1

Socket

Connection 2

FPT

Connectivity

Solvent Cemented

DWV

Pressure

Features

Underground Rated

Fitting or Connector Type

Elbow

Fitting/ Connector Collection

PVC

Material

PVC

Maximum working pressure (psi)

600

Maximum Working Temperature (F)

140

Pack Size

25

Pipe or Fitting Product Type

Fittings & Connectors

Product Weight (lb.)

1.950 lb

Reducing Fitting

No

Returnable

90-Day

Schedule Type

Schedule 40

Warranty / Certifications

Manufacturer Warranty

Charlotte Pipe and Foundry Company (Charlotte Pipe) Products are warranted to be free from manufacturing defects and to conform to currently applicable ASTM standards for a period of five (5) years from date of delivery.

Questions & Answers

5Questions
caret
Q:is this elbow threaded on both ends?
by|Aug 15, 2021
1 Answer
Answer This Question

A:  the configuration for this fitting is socket x female pipe thread. so only the female side is threaded.

by|Oct 29, 2023
    1 found this answer helpful
    caret
    Q:Are both ends treaded or is one a slip on glued connection?
    by|Aug 20, 2020
    1 Answer
    Answer This Question

    A:  the configuration for this fitting is Socket by Female Pipe Thread, so the answer to your question would that one side is a "slip" on connection.

    by|May 16, 2023
      1 found this answer helpful
      caret
      Q:Im planning to use these with 10 foot PVC pipes to make a craft project but I noticed the inside of these L connectors is threaded while the outside of the pipes are not threaded — do I need some other part to connect these to standard pvc pipe?
      by|May 26, 2020
      1 Answer
      Answer This Question

      A:  this part is used for specific joining and plumbing applications. we suggest that you use the search bar and the below HD identifier for the best part that would help you: 203812123 share Share save to favorites Save to Favorites print Print Best Seller Charlotte Pipe 3/4 in. PVC Sch. 40 90-Degree S x S Elbow

      by|Oct 3, 2020
        caret
        Q:Why isn't this a photo of a 1" x 1/2" elbow? It looks like 1" x 1" or maybe 1/2" x 1/2". What size is it really?
        by|Feb 9, 2016
        1 Answer
        Answer This Question

        A:  This product is a 1 in. x 1/2 in. PVC Sch. 40 90-Degree S x FPT Elbow.

        by|May 9, 2023
          1 found this answer helpful
          Showing 1-4 of 5
