#1 Home Improvement Retailer

Internet # 307852189

Model # PVC 02400 0615HD

Store SKU # 1003953654

Store SO SKU #1003933743

1/2 in. PVC Tee S x S x S Pro Pack (15-Pack)

Contains 15 units (55¢ /unit)
$8.31 /package
  • PVC Sch 40 fittings are white and used in pressure applications
  • Sch 40 fittings are installed using primer and solvent cementing
  • PVC Sch 40 fittings are for use where systems won't exceed 140°
  • View More Details
Store
0 in stock
icon
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase. Read Return Policy
Product Details

About This Product

PVC Sch. 40 fitting that is for pressure systems where temperatures will not exceed 140 degree F. They are highly resilient, with high-tensile and high-impact strength. PVC Sch. 40 has better sound deadening qualities than PVC Sch. 40 DWV Foam Core and ABS Foam Core. Installation requires the use of primer and solvent cement.

Highlights

  • White pipe and fittings with red print
  • Intended for pressure use
  • For use where systems will not exceed 140° F
  • PVC schedule 40 pipe and pressure fittings are used in irrigation, underground sprinkler systems, swimming pools, outdoor applications and cold water supply lines
  • Conforms to meet Standards: ASTM D 1784, ASTM D 2466, NSF 14 and 61
  • Require no special tools for cutting and to be installed with solvent cement
  • +/-0.623" ID and 0.84" OD
  • +/-0.623" ID and 0.84" OD
  • Return Policy
  • California residents
     see Prop 65 WARNINGS

Product Information

Internet # 307852189

Model # PVC 02400 0615HD

Store SKU # 1003953654

Store SO SKU #1003933743

Specifications

Dimensions

Double Fitting Size

1/2" x 1/2"

Fitting 1 size

1/2"

Fitting 2 size

1/2"

Fitting 3 size

1/2"

Fitting Size Dimensions

1/2" x 1/2" x 1/2"

Product Height (in.)

5.5 in

Product Width (in.)

5.5 in

Single Fitting Size

1/2"

Triple Fitting Size

1/2" x 1/2" x 1/2"

Details

Application

Non-Potable Water

Color Family

White

Color/Finish

White

Compatible Pipe Material

PVC

Connection 1

Socket

Connection 2

Socket

Connection 3

Socket

Connectivity

Solvent Cemented

DWV

Pressure

Features

Underground Rated

Fitting or Connector Type

Tee

Fitting/ Connector Collection

PVC

Material

PVC

Maximum working pressure (psi)

600

Maximum Working Temperature (F)

140

Pack Size

15

Pipe or Fitting Product Type

Fittings & Connectors

Product Weight (lb.)

1.365 lb

Reducing Fitting

No

Returnable

90-Day

Schedule Type

Schedule 40

Warranty / Certifications

Manufacturer Warranty

Charlotte Pipe and Foundry Company (Charlotte Pipe) Products are warranted to be free from manufacturing defects and to conform to currently applicable ASTM standards for a period of five (5) years from date of delivery.

Questions & Answers

7Questions
caret
Q:How would you put a 6 in. Sch. 40 pipe with a 6 5/8 outside diameter in this fitting which says it has a 6 in. dia opening?
by|Apr 21, 2021
1 Answer
Answer This Question

A:  6" is the nominal diameter. The nominal pipe diameter is based loosely on the inside diameter but is not exact. For our recommendations, please contact our Technical Services Department at 800-438-6091.

by|Apr 22, 2021
    caret

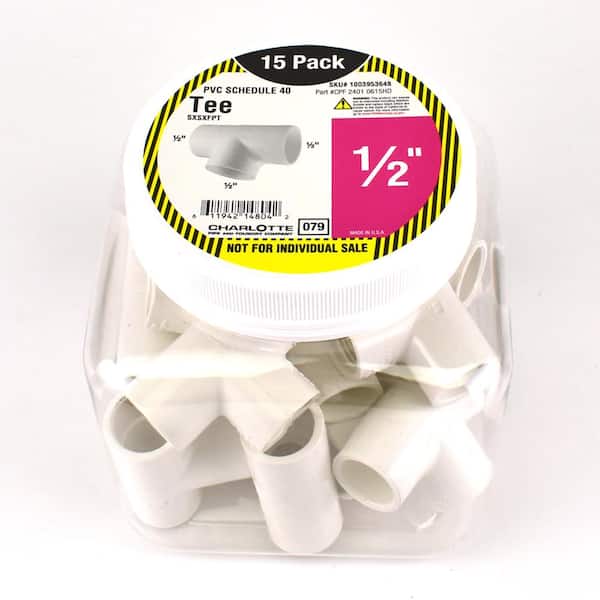

    Q:The product description says SxSxS, but the photo shows a box of SxSxFPT. Can someone confirm which I will get when I order this?
    by|Oct 30, 2020
    3 Answers
    Answer This Question

    A:  10 ft. 1/2 inch schedule 40 PVC pipe.

    by|Dec 13, 2023

    A:  SxSxS

    by|May 25, 2022

    A:  Thank you for bringing this issue to our attention. The description is accurate but of course the images are wrong and we will be correcting them ASAP. Please be patient if you monitor this situation as it could take up to 48 hrs for the change to cycle through the Home Depot system.

    by|Nov 13, 2023
      1 found this answer helpful
      caret
      Q:This this threaded on the bottom? if not can direct me to the item number of the 1/2 in. PVC Sch. 40 TEE that is threaded only on the bottom. thank you.
      by|Aug 13, 2020
      2 Answers
      Answer This Question

      A:  there are no threads on this fitting anywhere. For our recommendations, please contact our Technical Services Department at 800-438-6091.

      by|Apr 4, 2021
        1 found this answer helpful

        A:  I bought the below thinking it was unthreaded but it was and I need to return. Here's the info. for the threaded (on bottom opening of the tee). Charlotte Pipe 1/2 in. PVC Sch. 40 S x S x S Tee Model # PVC024000600HD Store SKU # 187909

        by|Nov 13, 2023
          2 found this answer helpful
          caret
          Q:Can this be used underground for non-pressurized drainage purposes and connected with fernco 1056 44RC coupling?
          by|Aug 9, 2020
          1 Answer
          Answer This Question

          A:  This fitting was designed to be used in a pressure application. For our recommendations, please contact our Technical Services Department at 800-438-6091.

          by|Aug 10, 2020
            Showing 1-4 of 7

            Customer Reviews

            4.7 out of 5

            • 4.7 out of 194 reviews
            • 93% recommend this product
            Filter by:
            Showing 1-10 of 194 reviews
            PVC TEE
            PVC connectors were perfect for the job!
            by
            • Verified Purchase
            • Recommended
            Did precisely what it needed to do; join three runs of 1/2" pvc pipe.
            Did precisely what it needed to do; join three runs of 1/2" pvc pipe.
            by
            • Verified Purchase
            • Recommended
            1 found this review helpful
            All fittings connected easily and snugly. The image is of...
            All fittings connected easily and snugly. The image is of the base for the game of Quittich.I added hoops and my granddaughter hosted a Harry Potter themed birthday party.
            by
            • Verified Purchase
            by
            • Verified Purchase
            by
            • Verified Purchase
            They all fit together and stay together, I made a frame to raise my boat cover up above the windshield, bow and stern, It has worked out well.
            by
            • Verified Purchase
            by
            • Verified Purchase
            by
            • Verified Purchase
            by
            • Verified Purchase
            by
            • Verified Purchase
            Showing 1-10 of 194 reviews

            Compare Similar Items

            current item

            Fitting 1 size

            1/2"

            1/2"

            1/2"

            3"

            Fitting or Connector Type

            Tee

            Tee

            Elbow

            Tee

            Schedule Type

            Schedule 40

            Schedule 40

            Schedule 40

            Schedule 40

            Connectivity

            Solvent Cemented

            Solvent Cemented

            Solvent Cemented

            Solvent Cemented

            Pack Size

            15

            15

            25

            1
