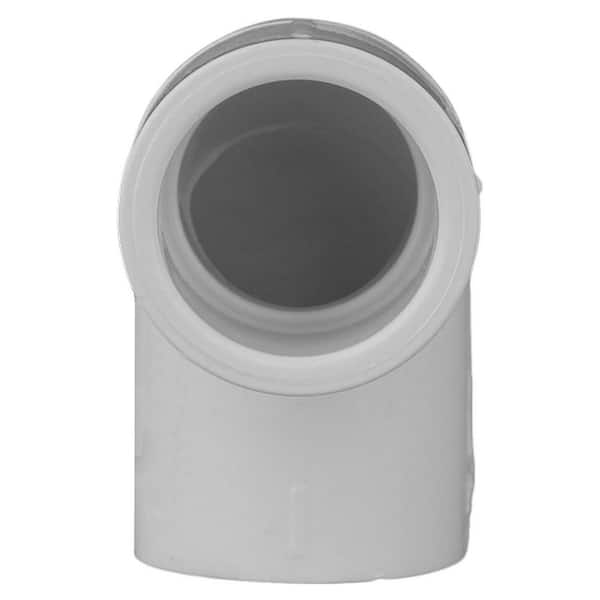

1 in. PVC Sch. 40 90-Degree Elbow

$1.63
  • PVC Sch 40 fittings are white and used in pressure applications
  • Sch 40 fittings are installed using primer and solvent cementing
  • PVC Sch 40 fittings are for use where systems won't exceed 140°
  • View More Details

Free & Easy Returns In Store or Online

Return this item within 90 days of purchase.

Read Return Policy

Ask about this product

Get an answer now with AI

Magic Apron Assistant is an AI virtual assistant. By proceeding, you consent to the recording and use of your information by The Home Depot (and authorized third parties). More information

Product Details

About This Product

PVC Schedule 40 fitting that is for pressure systems where temperatures will not exceed 140°F. They are highly resilient, with high-tensile and high-impact strength. PVC Schedule 40 has better sound deadening qualities than PVC Schedule 40 DWV Foam Core and ABS Foam Core. Installation requires the use of primer and solvent cement.

Highlights

  • White pipe with red print
  • Intended for pressure use
  • For use where systems will not exceed 140° F
  • PVC schedule 40 pipe and pressure fittings are used in irrigation, underground sprinkler systems, swimming pools, outdoor applications and cold water supply lines
  • Conforms to meet Standards: ASTM D 1784, ASTM D 2466, NSF 14 and 199
  • Require no special tools for cutting and to be installed with solvent cement
  • +/-1.049 in. ID and 1.315 in. OD
  • Return Policy
  • California residents
     see Prop 65 WARNINGS

Product Information

Internet # 203812125

Model # PVC023001000HD

Store SKU # 187984

Specifications

Dimensions

Double Fitting Size

1" x 1"

Fitting 1 size

1"

Fitting 2 size

1"

Fitting Size Dimensions

1" x 1"

Product Height (in.)

1.594 in

Product Length (ft.)

2.609 ft

Product Width (in.)

2.609 in

Single Fitting Size

1"

Details

Application

Non-Potable Water

Bend Degree

90 Degree

Color Family

White

Compatible Pipe Material

PVC

Connection

Socket x Socket

Connection 1

Socket

Connection 2

Socket

Connectivity

Solvent Cemented

DWV

Pressure

Features

Underground Rated

Fitting or Connector Type

Elbow

Fitting/ Connector Collection

PVC

Material

PVC

Maximum working pressure (psi)

450

Maximum Working Temperature (F)

140

Pack Size

1

Pipe or Fitting Product Type

Fittings & Connectors

Product Weight (lb.)

0.116 lb

Returnable

90-Day

Schedule Type

Schedule 40

Warranty / Certifications

Manufacturer Warranty

Charlotte Pipe and Foundry Company® (Charlotte Pipe®) Products are warranted to be free from manufacturing defects and to conform to currently applicable ASTM standards for a period of five (5) years from date of delivery

Questions & Answers

This product show non-potable application while the pipe shows a potable water application. I didn't find any other 90-degree elbows. Could you provide me the product with potable water application?
BySep 20, 2026
1 Answer |
Answer This Question

Model # PVC 02300 1000 meets to requirements for NSF for potable water. For recommendations specific to your project, please contact our Technical Services Department at 800-438-6091. Thank you!

By|Sep 21, 2026


    Why is 45 degree PVC elbow way more expensive than 90 degree PVC elbow?
    BySep 19, 2024
    1 Answer |
    Answer This Question

    The retailer considers many factors in determining the pricing of the products. As the manufacturer of the product, we are unable to provide an answer and would ask that you reach out directly to the retailer. Thank you.

    By|Sep 23, 2024


      What is the pipe’s outside dimension
      BySep 18, 2024
      1 Answer |
      Answer This Question

      +/- 6.62" OD

      By|Sep 18, 2024


        What is the insertion depth for gluing?
        ByAug 1, 2024
        1 Answer |
        Answer This Question

        For a better explanation and/or a recommendation, please contact our Technical Services Department at 800-438-6091.

        By|Aug 2, 2024


          will 1” pvc pipe fit inside a 1” elbow
          ByMar 9, 2024
          1 Answer |
          Answer This Question

          For an explanation and/or a recommendation, please contact our Technical Services Department at 800-438-6091.

          By|Mar 15, 2024

            (1)

            What is the actual ID (not nominal)? Will this work with the 1" Charlotte Pipe that has an actual OD of 1.125"?
            ByJul 31, 2022
            3 Answers |
            Answer This Question

            Yes

            By|Jul 17, 2025

              (330)

              PVC dimensions are given like this because of the different thickness between schedule 40 vs 80 the inside demension is the same and 1" pvc  pipe will work with 1" fittings schedule 40 bs 80 doesn't even matter for the fit bit for the pressure they can handle respectively. Hope this helps.

              By|Jun 25, 2025

                (332)

                The OD of 1" pvc pipe is +/- 1.315 inches and the ID is +/- 1.049 inches.

                By|Jun 7, 2025

                  (328)

                  is the ID listed at 1" a nominal measurement or could I actually use this with a 1" wooden dowel?
                  ByDec 22, 2020
                  2 Answers |
                  Answer This Question

                  you are correct. the one inch is a nominal description. Charlotte Pipe products are designed for plumbing applications only.

                  By|Jun 8, 2023

                    (327)

                    It is 1" ID, but any irregularities in the dowel would have e to be sanded.

                    By|Jun 8, 2023

                      (327)

                      Does the "SxS" indicate this elbow is "street" on both ends? That would mean both ends are a male connection, which is the same diameter as lengths of 4 inch pipe.
                      ByMar 6, 2020
                      2 Answers |
                      Answer This Question

                      "S x S" refers to " Slip (fitting) x Slip (fitting). I.e., not threaded. In plastic fittings this means one will be joining by gluing. In copper or brass plumbing, slip fittings (non-threaded fittings) are soldered - or, in the case of refrigerant lines, brazed. Sometimes in non-ferrous plumbing nomenclature the "S" designation is inferred to mean "sweat" or the designation "SWT" is used for the fitting end type. In ferrous piping, such slip fittings - either socket end or spigot end - would be welded.

                      By|Jun 25, 2025

                      (328)

                      The SXS refers to socket x socket and not street.

                      By|Jun 8, 2023

                        (325)

                        Viewing 1-8 of 9

                        Customer Reviews

                        4.8 out of 5

                        • 4.8 out of 923 reviews
                        • 97% recommend this product
                        Filter by:
                        Showing 1-10 of 923 reviews
                        Fittings are of good quality, I use about 9 of them per pool skimmer to keep the algae growth down, the size of the fittings are just the right size allowing easy flow and does not create any blockage
                        by
                        This customer chose to rate the product and not provide text.
                        by
                        • Verified Purchase
                        This customer chose to rate the product and not provide text.
                        by
                        This elbow is a perfect fit for 1" schedule 40 pipe. I had a main line break at the elbow and had to use 2 of these plus a slip coupling. This version is a bit shorter than the older versions but fits securely onto the pvc pipe. I used red hot pvc cement for the job.
                        by
                        This was the elbow required to fix the broken water supply for the sprinkler system. It was a quality PVC product that I would recommend to my family members and friends alike. I will be using them from now on.
                        by
                        • Verified Purchase
                        It is really hard to come up with some creative to say about a 3/4" 45 degree elbow. It did work with 3/4" PVC. I did not verify it was actually 45 degrees, but I was willing to trust the label. My application was draining the condensate from the furnace and AC. No pressure. The moisture stayed inside as intended. The color is a delightful off-white-ish that just is.
                        by
                        • Verified Purchase
                        The final component for creating our Christmas Village backdrop....
                        The final component for creating our Christmas Village backdrop.
                        by
                        • Verified Purchase
                        Used several of these fittings to put "dog leg" jogs in a drain line; both to avoid a downcomer i...
                        Used several of these fittings to put "dog leg" jogs in a drain line; both to avoid a downcomer intersecting a foundation, and to steer the buried leader to an existing cistern. The fittings arrived clean and in good condition. They are manufactured to standards. I primed, glued and installed them without issue.
                        by
                        • DIY
                        • Verified Purchase
                        • Recommended
                        2 found this review helpful
                        I bought these as backup stock when one of my irrigation pipes fail. I am sure it will perform as required when I use them.
                        by
                        • Verified Purchase
                        good product and timely deliverly
                        by
                        • Verified Purchase
