Internet #203949947

Model #PVC 00300 2400

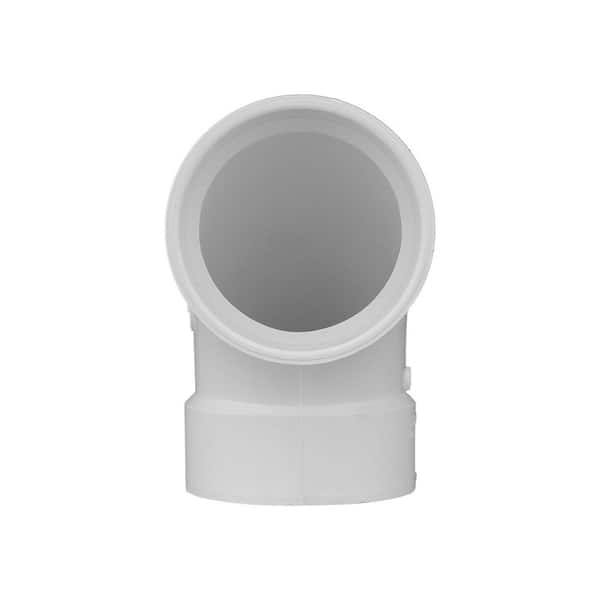

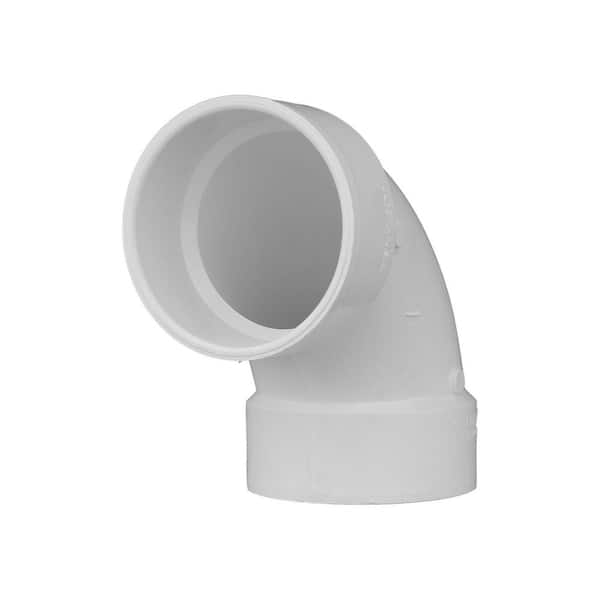

10 in. PVC DWV 90-Degree 1/4 Hub x Hub Elbow Fitting

Frequently Bought Together

+
+
Price:
$14600

Product Overview

PVC fittings are for drain, waste and vent purposes. They are used in gravity-fed waste elimination systems and are for Non-Pressure systems where temperatures will not exceed 140°F. PVC is lightweight and easy to install. They require no special tools for cutting, and can be installed with solvent cementing, threading, flanging, and roll-grooved joining.
  • Conforms to meet standards: ASTM D 1784, ASTM D 2665, ASTM D 3311 and NSF 14
  • White fittings used in sanitary drain, waste, and vent (DWV), sewer and storm drainage applications
  • Not intended for pressure use
  • Maximum working temperature of 140°F
  • PVC is lightweight and easy to install
  • Require no special tools for cutting and to be installed with solvent cement

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar PVC Fittings

10 in. PVC DWV Vent 90-Degree Hub x Hub Elbow Fitting
current product
10 in. PVC DWV 90-Degree 1/4 Hub x Hub Elbow Fitting
12 in. PVC DWV Vent 90-Degree Hub x Hub Elbow Fitting12 in. PVC DWV 90-Degree Hub x Hub Elbow Fitting
BrandCharlotte PipeCharlotte PipeCharlotte PipeCharlotte Pipe
Name10 in. PVC DWV Vent 90-Degree Hub x Hub Elbow Fitting10 in. PVC DWV 90-Degree 1/4 Hub x Hub Elbow Fitting12 in. PVC DWV Vent 90-Degree Hub x Hub Elbow Fitting12 in. PVC DWV 90-Degree Hub x Hub Elbow Fitting
Price
$13173
$14600
$20789
$20938
Ratings
(4)
(4)
(4)
(4)
Fitting 1 size10"10"12"12"
Fitting or Connector TypeElbowElbowElbowElbow
Schedule TypeSchedule 40Schedule 40Schedule 40Schedule 40
ApplicationNon-Potable WaterNon-Potable WaterNon-Potable WaterNon-Potable Water
ConnectivitySolvent CementedSolvent CementedSolvent CementedSolvent Cemented
Pack Size1111
FeaturesUnderground UseUnderground UseUnderground UseUnderground Use
Bend Degree90 Degree90 Degree90 Degree90 Degree
View ProductView ProductView ProductView Product

Specifications

Dimensions

Double Fitting Size
10" x 10"
Fitting 1 size
10"
Fitting 2 size
10"
Product Depth (in.)
23.732
Product Height (in.)
11.520
Product Width (in.)
23.670

Details

Application
Non-Potable Water
Bend Degree
90 Degree
Color Family
White
Color/Finish
White
Compatible Pipe Material
PVC
Connection 1
Hub
Connection 2
Hub
Connectivity
Solvent Cemented
Features
Underground Use
Fitting or Connector Type
Elbow
Fitting/ Connector Collection
PVC
Material
PVC
Maximum working pressure (psi)
0
Maximum Working Temperature (F)
140
Pack Size
1
Pipe or Fitting Product Type
Fittings & Connectors
Product Weight (lb.)
22.096
Reducing Fitting
No
Returnable
180-Day
Schedule Type
Schedule 40

Warranty / Certifications

Manufacturer Warranty
Charlotte Pipe and Foundry Company (Charlotte Pipe) Products are warranted to be free from manufacturing defects and to conform to currently applicable ASTM standards for a period of five (5) years from date of delivery.

Questions & Answers

5Questions5Answers

Will the socket on this fitting accept SDR51 PVC pipe?

Asked by Tom June 5, 2020
1
Answer

SDR 51 pipe would be for irrigation and the fitting you reference is DWV. We wouldn't recommend using the fitting with that pipe. For our recommendations, please contact our Technical Services Department at 800-438-6091.

what are the overall dimensions

Asked by android May 7, 2018
1
Answer

27.62 L x 13.602 H x 27.628 wide

Dimension drawing of the 8"Ø Elbow ? What is the radius of the 90° Elbow from end to center ? (1....

Asked by VIGI March 20, 2018
1
Answer

The approximate radius dimension for an 8" PVC DWV quarter bend is 8.941".

Will this fitting fit schedule 40 12"x20' pvc dmv pipe?

Asked by Zo February 12, 2018
1
Answer

This fitting is manufactured to be solvent welded to 12" PVC SCH 40 DWV pipe.

what schedule is this fitting, schedule 40 or schedule 80?

Asked by Jack May 7, 2017
1
Answer

Hello Jack, this fitting is schedule 40. thanks for choosing Charlotte Pipe.
