Model #PVC 02307 0800HD

Store SKU #472468

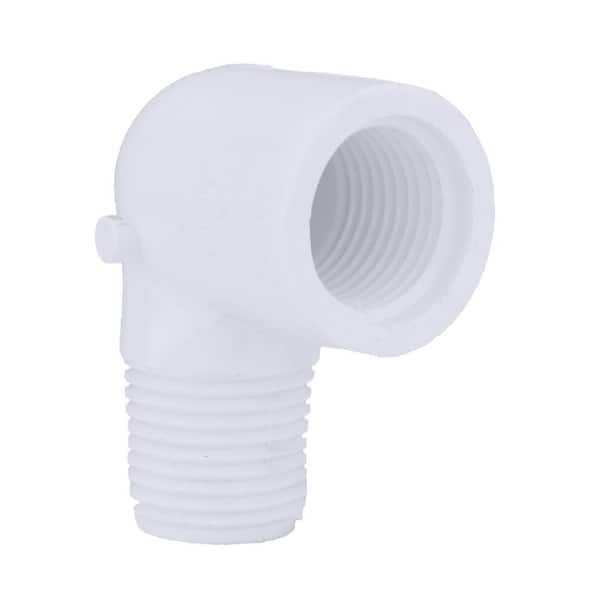

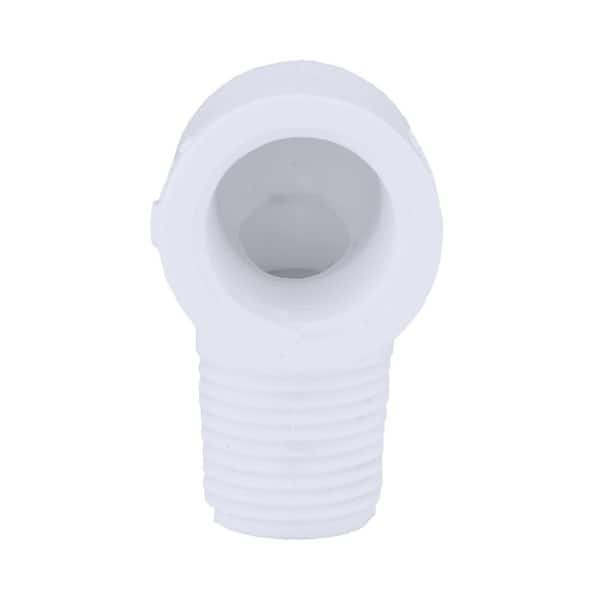

3/4 in. PVC Schedule. 40 90-Degree MPT x FIP Street Elbow Fitting

  • PVC Sch 40 fittings are white and used in pressure applications
  • Sch 40 fittings are installed using primer and solvent cementing
  • PVC Sch 40 fittings are for use where systems won't exceed 140°
  • View More Details
Store
0 in stock
Text to Me

Frequently Bought Together

+
+
Price:

Product Overview

PVC Sch. 40 fitting that is for pressure systems where temperatures will not exceed 140°F. They are highly resilient, with high-tensile and high-impact strength. PVC Sch. 40 has better sound deadening qualities than PVC Sch. 40 DWV Foam Core and ABS Foam Core. Installation requires the use of primer and solvent cement.
  • Conforms to meet standards: ASTM D 1784, ASTM D 2466, NSF 14 and 61
  • White fittings that are used in potable water applications only
  • Intended for pressure use
  • PVC schedule 40 pipe and pressure fittings are used in irrigation, underground sprinkler systems, swimming pools, outdoor applications and cold water supply lines
  • Maximum working temperature of 140°F
  • Fittings are highly resilient, with high-tensile and high-impact strength
  • Require no special tools for cutting and to be installed with solvent cement
  • +/-0.824" ID and 1.05" OD

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar PVC Fittings

3/4 in. PVC Schedule. 40 90° S x S Elbow FittingTop Rated1-1/2 in. PVC Schedule. 40 90-Degree S x S Elbow Fitting3/4 in. Side Outlet 90-Degree Socket x Socket x Socket Elbow
current product
3/4 in. PVC Schedule. 40 90-Degree MPT x FIP Street Elbow Fitting
BrandCharlotte PipeCharlotte PipeCharlotte PipeCharlotte Pipe
Name3/4 in. PVC Schedule. 40 90° S x S Elbow Fitting1-1/2 in. PVC Schedule. 40 90-Degree S x S Elbow Fitting3/4 in. Side Outlet 90-Degree Socket x Socket x Socket Elbow3/4 in. PVC Schedule. 40 90-Degree MPT x FIP Street Elbow Fitting
Price
81¢
$261
$273
Ratings
(245)
(245)
(67)
(4)
Fitting 1 size3/4"1-1/2"3/4"3/4"
Fitting or Connector TypeElbowElbowElbowElbow
Schedule TypeSchedule 40Schedule 40Schedule 40Schedule 40
Pack Size1111
ConnectivitySolvent CementedSolvent CementedSolvent CementedSolvent Cemented
ApplicationPotable WaterNon-Potable WaterNon-Potable WaterNon-Potable Water
DWVPressurePressurePressurePressure
FeaturesUnderground UseUnderground UseSide InletUnderground Use
Fitting/ Connector CollectionPVCPVCPVCPVC
View ProductView ProductView ProductView Product

Specifications

Dimensions

Double Fitting Size
3/4" x 3/4"
Fitting 1 size
3/4"
Fitting 2 size
3/4"
Product Depth (in.)
2.281
Product Height (in.)
1.375
Product Width (in.)
2

Details

Application
Non-Potable Water
Bend Degree
90 Degree
Color Family
White
Color/Finish
White
Compatible Pipe Material
PVC
Connection 1
M
Connection 2
FIP
Connectivity
Solvent Cemented
DWV
Pressure
Features
Underground Use
Fitting or Connector Type
Elbow
Fitting/ Connector Collection
PVC
Material
PVC
Maximum working pressure (psi)
480
Maximum Working Temperature (F)
140
Pack Size
1
Pipe or Fitting Product Type
Fittings & Connectors
Product Weight (lb.)
.08
Reducing Fitting
No
Returnable
90-Day
Schedule Type
Schedule 40

Warranty / Certifications

Manufacturer Warranty
Charlotte Pipe and Foundry Company (Charlotte Pipe) Products are warranted to be free from manufacturing defects and to conform to currently applicable ASTM standards for a period of five (5) years from date of delivery
