Model # 778326

Internet #302686287

Store SKU #1002747608

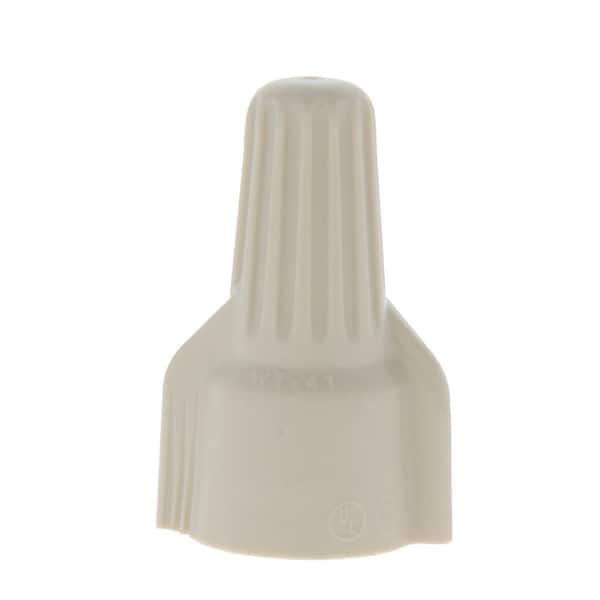

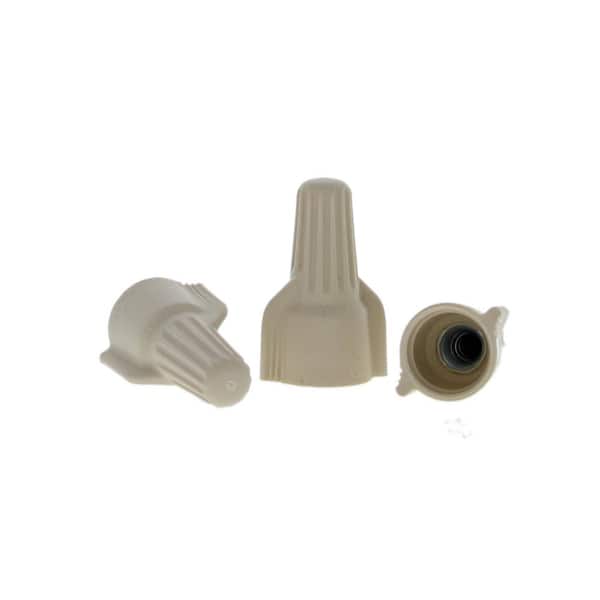

Commercial Electric Winged Wire Connectors, Tan (30-Pack)
0783250792917

Commercial Electric

Winged Wire Connectors, Tan (30-Pack)

  • Accepts many different wire sizes without pre-twisting
  • Each connector is rated for up to 600-Volt
  • Can be used with #22-#10 AWG copper conductors
$ 3 96
Loading Options
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Frequently Bought Together

Product Overview

  • Accepts many different wire sizes without pre-twisting
  • Each connector is rated for up to 600-Volt
  • Can be used with #22-#10 AWG copper conductors
Tan Winged Wire Connectors are designed to make electrical connections and it covers a wide range of wire combinations with one connector. The contoured wing design provides maximum torque for a variety of electrical applications while the copolymer shell and live-action spring expand for smooth, progressive tightening providing dependable connections. With a tough, flame-retardant shell that withstands environmental extremes and a long, deep skirt to provide maximum dielectric protection to prevent flash-over and turned-back strands, they bring comfort and performance at a price that is right.
  • Use to connect and insulate 2 or more copper wires together inside an approved electrical box
  • Contoured wing design provides comfort for fingers and enables maximum torque during application
  • Expanding, square-wire spring helps create secure connections
  • For copper to copper connections only; do not use on aluminum wire
  • Tough, UL 94V-2 flame-retardant shell
  • UL 486C listed and CSA 22.2 #188 certified
  • Rated for 600-Volt, 1,000-Volt in lighting fixtures and signs
  • California residents see Prop 65 WARNINGS

Product Overview

  • Accepts many different wire sizes without pre-twisting
  • Each connector is rated for up to 600-Volt
  • Can be used with #22-#10 AWG copper conductors
Model #: 778326
Sku #: 1002747608
Internet #: 302686287

Tan Winged Wire Connectors are designed to make electrical connections and it covers a wide range of wire combinations with one connector. The contoured wing design provides maximum torque for a variety of electrical applications while the copolymer shell and live-action spring expand for smooth, progressive tightening providing dependable connections. With a tough, flame-retardant shell that withstands environmental extremes and a long, deep skirt to provide maximum dielectric protection to prevent flash-over and turned-back strands, they bring comfort and performance at a price that is right.

  • Use to connect and insulate 2 or more copper wires together inside an approved electrical box
  • Contoured wing design provides comfort for fingers and enables maximum torque during application
  • Expanding, square-wire spring helps create secure connections
  • For copper to copper connections only; do not use on aluminum wire
  • Tough, UL 94V-2 flame-retardant shell
  • UL 486C listed and CSA 22.2 #188 certified
  • Rated for 600-Volt, 1,000-Volt in lighting fixtures and signs
  • California residents see Prop 65 WARNINGS

Compare Similar

Compare Similar Products
Brand Gardner Bender Commercial Electric Tyco Electronics Ideal
Name 12 -10 AWG 0.25 in. Tab Female Fully-Insulated Disconnect, Yellow (10-Pack) Winged Wire Connectors, Tan (30-Pack) 18-10 AWG, Copper Crimp Sleeves (100-Pack) 451 Yellow Wing-Nut Wire Connectors (100-Pack)
Price
$3.14 /package
$3.96
$7.97 /package
$9.42 /package
Ratings (21) (0) (1) (5)
Package Quantity 10 30 100 100
View Product View Product View Product View Product

Specifications

Dimensions

Connector Depth (in.)
.56
Connector Height (in.)
1.13
Connector Width (in.)
.75

Details

Color Family
Beige
Electrical Product Type
Wire Connector
Maximum Wire Capacity
Max 3 - #10 AWG Wires
Minimum Wire Capacity
Min 2 - #20 AWG Wires
Package Quantity
30

Warranty / Certifications

Certifications and Listings
1-UL Listed,CSA Certified
Manufacturer Warranty
Warranty limited solely to repair or replacement, no warranty of merchantability, fitness, for a particular purpose or consequential damages.

Specifications

Dimensions

Connector Depth (in.)
.56
Connector Height (in.)
1.13
Connector Width (in.)
.75

Details

Color Family
Beige
Electrical Product Type
Wire Connector
Maximum Wire Capacity
Max 3 - #10 AWG Wires
Minimum Wire Capacity
Min 2 - #20 AWG Wires
Package Quantity
30

Warranty / Certifications

Certifications and Listings
1-UL Listed,CSA Certified
Manufacturer Warranty
Warranty limited solely to repair or replacement, no warranty of merchantability, fitness, for a particular purpose or consequential damages.
