1/4 in. Barb Connectors (10-Pack)

Contains 10 units (25¢ /unit)
$2.47
  • Ideal for 1/2 in. poly tubing and 1/4 in. micro tubing
  • Raised barbed ends for a watertight fit
  • Includes UV inhibitors for added durability
  • View More Details
Store
0 in stock
icon
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase. Read Return Policy
caret
Product Details
  • Ideal for 1/2 in. poly tubing and 1/4 in. micro tubing
  • Raised barbed ends for a watertight fit
  • Includes UV inhibitors for added durability
About This Product

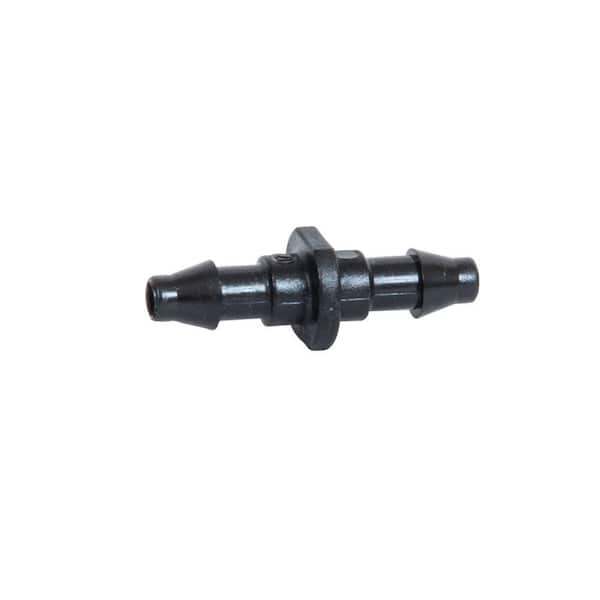

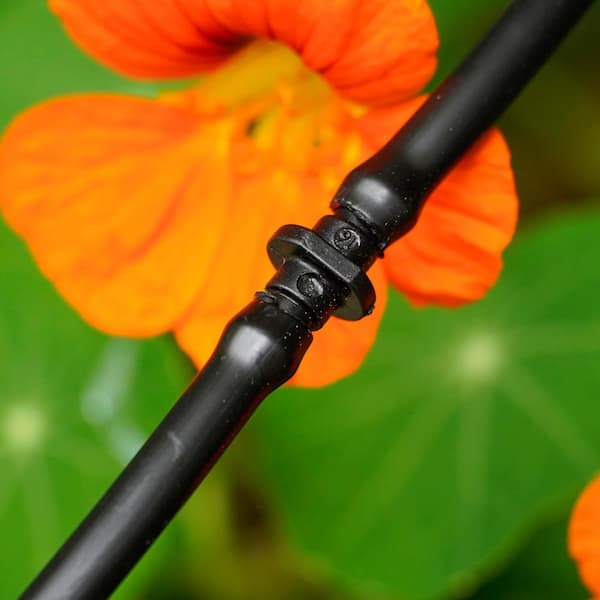

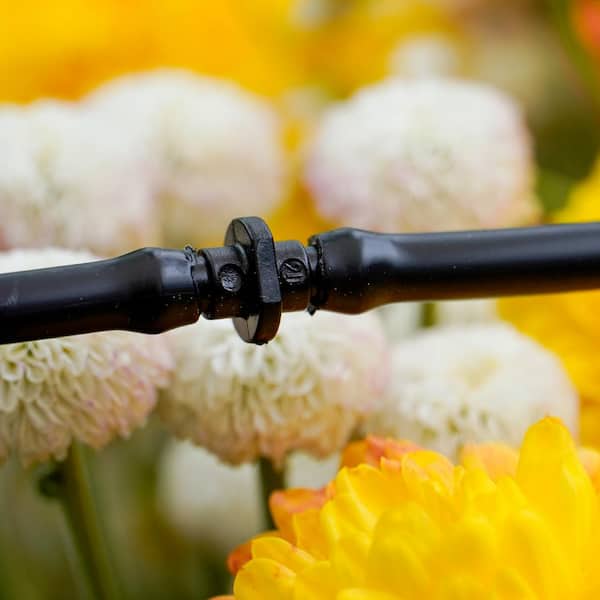

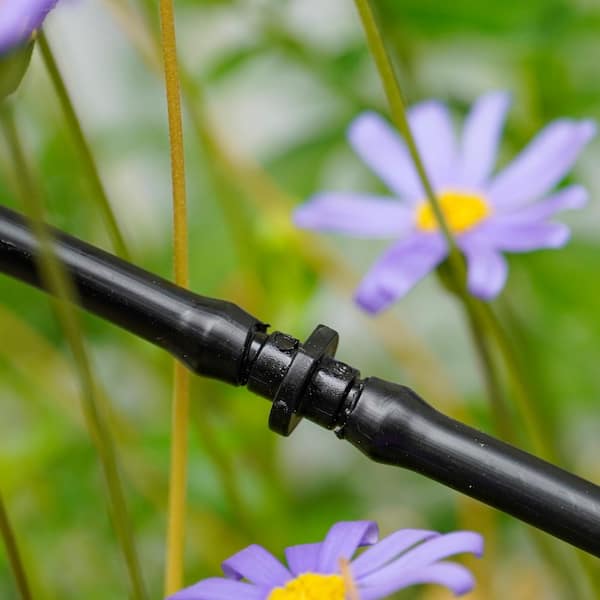

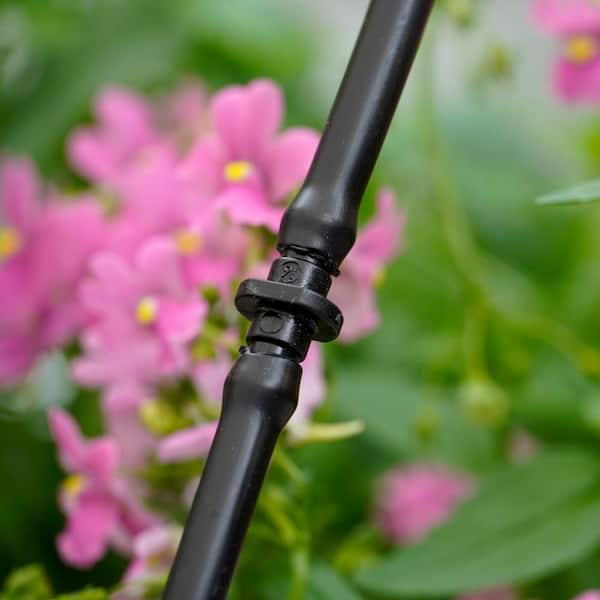

The DIG 1/4 in. Barb Connector is used to provide a secure connection of two pieces of 1/4 in. micro tubing, soaker hose or drip-line. Each connection offers raised barbed ends to ensure a strong, water tight fit. They are made of high-impact plastic and have the largest inside diameter in the industry with a higher flow rate capability and lower head loss.

  • No special tools or glue needed
  • Inserts easily into 1/2 in. poly tubing and 1/4 in. micro tubing for a watertight fit
  • Made from durable, high-quality material
  • Contains UV inhibitors to protect against direct sun exposure
  • Used in the installation of all brands of 1/4" micro tubing
  • Sharp-barb design for secure and tight-fit installation without glue or clamps
  • Durable professional design
  • Long lasting
  • Easy to Use
  • Designed for maximum flow
  • Return Policy
Product ID #: 100114529Internet #: 013158830009Model #: H80A

Additional Resources

Shop All DIG
From the Manufacturer
caret

Specifications

Dimensions: H 5.5 in, W 0.25 in, L 4 in

Dimensions

Inner Diameter (in.).25Outer Diameter (in.).25
Product Height (in.)5.5 inProduct Length (in.)4 in
Product Width (in.)0.25 in

Details

Color FamilyBlacksConnectionBarb x Barb
Drip Irrigation Fitting ComponentCouplingFitting Size1/4 in x 1/4 in
Fitting TypeBarb FittingsMaterialABS Plastic
Pack Size10Pressure Rating30
Returnable90-Day

Warranty / Certifications

Manufacturer Warranty3 Year Warranty
caret

Questions & Answers

10Questions
caret
Q:What is this made out of? Does it have bpa?
by|Sep 9, 2023
1 Answer
Answer This Question

A:  Our 1/4in barbed connectors are made of high-impact, high-strength, UV-resistant Acetal plastic that has excellent wear properties in dry and wet environments. Acetal does not contain BPA.

by|Sep 11, 2023
    caret
    Q:what is the gph?
    by|May 2, 2023
    1 Answer
    Answer This Question

    A:  The H80B is not an emitter it is a fitting designed to connect two ¼” lines together or to connect ¼” tubing directly into ½” poly tubing. If you have any further questions, please feel free to contact our technical service/product support team directly at 1-800-322-9146 or tech@digcorp.com.

    by|Jun 3, 2023
      caret
      Q:I was trying to pick up drippers and the guy told me these would work for that. Is that true or do I need to go back?
      by|Apr 12, 2023
      6 Answers
      Answer This Question

      A:  This piece is used to connect (or repair a hole in) the tubing. It does not "drip" as it's a steady stream, so I would recommend getting the actual dripper endpiece (they come in various gallons/hour sizes).

      by|Apr 18, 2023

        A:  No. Your looking for 0-14 GPH, 360 Degree, Adjustable Drip Emitter on Spike (10-Pack

        by|Apr 18, 2023

          A:  These are the barbs to link multiple drip system (1/4”) lines. If you’re looking to link two (or more) drip lines, these are what you’d use. If you’re looking for drip hose, you’dwant to look at something like https://www.homedepot.com/p/DIG-1-4-in-in-X-100-ft-Poly-Distribution-Tubing-170-ID-X-250-OD-B38100P/204184721 or https://www.homedepot.com/p/Rain-Bird-1-4-in-x-100-ft-Distribution-Tubing-T22-100SX/202078362.

          by|Apr 17, 2023

            A:  The H80B is a ¼” barb connector used to connect two pieces of ¼” tubing or connect ¼” tubing to the side or top of ½” poly drip tubing. If you are looking for drip emitters, I would recommend models B221B, B222B or B224B. If you have any further questions, please feel free to contact our technical service/product support team directly at 1-800-322-9146 or tech@digcorp.com.

            by|Aug 3, 2023
              1 found this answer helpful

              A:  Yes! I have been using DIG products for nearly 25 years now. Those barbs work just fine. I'm older now and need help to insert them into the hose/pipe. But I solve that by carrying a mug of hot boiled water to dip the connector tubing onto the barb and/or emitters. Have fun.

              by|Apr 15, 2023

                A:  In my opinion, no, they won’t be the dripper. These are made to connect 1/4 line.

                by|Apr 16, 2023
                  caret
                  Q:why is my connection using this barb to my 1/2 main line leaking? I am using a hole punch but all my connections to the 1/2 main line are leaking
                  by|May 7, 2022
                  2 Answers
                  Answer This Question

                  A:  Punching the hole and inserting the barb into the 1/2 tube can be difficult, and can stretch / warp the 1/2 tube (causing leaking). I have found that boiling a teapot of water and pouring it over the tube to soften it up makes it easier to work with.

                  by|Dec 1, 2023

                    A:  leaking ¼ inch barb connection point to ½ inch poly tubing can be caused by a few factors. First you want to make sure your pressure is within 25 to 30 psi a preset pressure regulator to make sure your pressure is within recommended operating pressure. When punching the ½ inch tubing make sure not to punch at an angle so the hole does not get stretched out and cause leaking. Also, when inserting the ¼ inch barb try to avoid pushing in the barb too far into the hole to avoid stretching the tubing. In most cases any leaking from the ¼ inch barb connection point will seal on its own after a week or two of operation. We do also make a self-piercing ¼ inch insert connector model D5010 that may work better for you. If you have any further questions, please contact our technical support team at 1-800-322-9146.

                    by|Sep 18, 2023
                      1 found this answer helpful
                      Showing 1-4 of 10
                      caret

                      Customer Reviews

                      4.4 out of 5
                      • 4.4 out of 303 reviews
                      • 69% recommend this product
                      Filter by:
                      Showing 1-10 of 303 reviews
                      I use these often when moving tubing and repairing leaks (like when mice chew through a line). Th...
                      I use these often when moving tubing and repairing leaks (like when mice chew through a line). They are the most common fitting I use in my 1/4" system and the 50 pack is a welcome addition to my spare parts. Tubing can be inserted on either end of these by hand. I recommend wearing gloves and doing it when the tubing is warmed in the sun. It makes it a lot easier.
                      by
                      • DIY
                      • Recommended
                      3 found this review helpful
                      new designed barbs leaking
                      these are not the same barbs i bought last year! and yes they are the Dig brand. most are leaking either a small drip to a fast drip. The ones i bought last year nerver leaked at all! Posting pic of the ones i bought last year. Gonna try replacing the bad leakers with Self Piercing 1/4 in. Insert Connector see if the clamping stops the leaks
                      by
                        5 found this review helpful
                        by
                        • Verified Purchase
                        by
                        • Verified Purchase
                        by
                        • Verified Purchase
                        by
                        • Verified Purchase
                        It's also great product it work good
                        by
                        • Verified Purchase
                        by
                        • Verified Purchase
                        works as designed on an existing system.
                        by
                        • Verified Purchase
                        Great connectors! They fit tightly and don’t leak at all!
                        by
                        • Verified Purchase
