Aqua Fold 32 in. D x 32 in. W x 76 3/4 in. H Frameless Shower Door in Chrome with Base and Backwalls

  • Kit includes: Folding Shower Screen, Base and Backwalls
  • Shower Screen offers 3/8 in. adjustment for out-of-plumb walls
  • Please consult the technical drawing for precise drain location
  • See More Details

Frequently Bought Together

+
+
Price:

Product Overview

This DreamLine Kit combines the Aqua Fold Shower Door, SlimLine Shower base, and Q-Wall backwall to completely transform a shower space. The Aqua Fold features a trackless style and a continuous self-centering pivot to add style and create an open, inviting shower space. The DreamLine Aqua Fold Kit will transform your bathroom with charm and style to match its functionality.
  • Kit Includes: aqua fold shower door/screen, SlimLine shower base, and Q-Wall Backwall

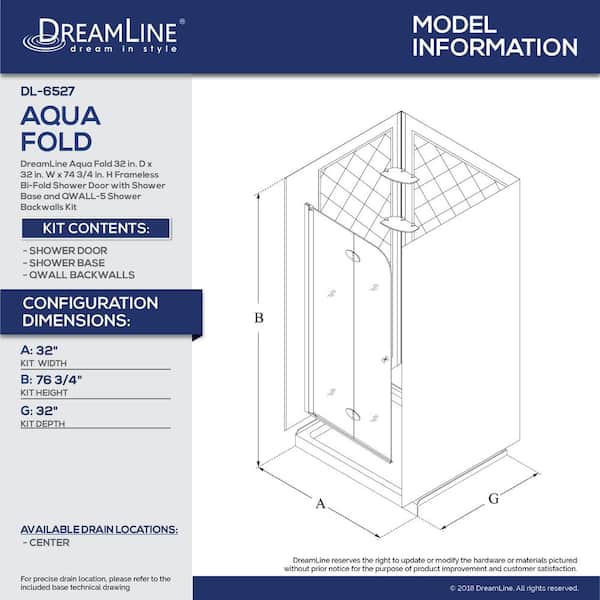

  • Kit Size: 32 in. D x 32 in. W x 76 3/4 in. H; Walk-in Opening: 26 in.
  • Aqua Fold Bi-Fold Shower Screen; Bi-Fold design allows for a wide entry; Great choice for smaller bathrooms
  • Continuous self-centering pivot allows rotation into and out of the shower
  • Anodized aluminum wall profile allows up to 3/8 in. adjustment for out-of-plumb (uneven walls)
  • Quality 1/4 in. (6 mm) thick certified clear tempered glass; Hardware Finish: Chrome
  • Reversible for a right or left wall installation to fit your specific layout
  • SlimLine Single Threshold Shower Base: Low profile threshold design; Base Color: White; Drain Location: Center
  • Slip-resistant textured floor pattern for safe showering; Reinforced with fiberglass for durability
  • Integrated tile flange for water leak prevention; Glossy acrylic finish is scratch and stain resistant
  • Drain opening fits any standard 2 in. compression fitted drain; Drain not included
  • cUPC certified; Direct to stud installation
  • Plumbing codes vary by state; DreamLine is not responsible for code compliance
  • Q-Wall Backwall: Attractive tile pattern for a modern look; 2 convenient glass shelves; Backwall Color: White
  • Acrylic/ABS material for easy maintenance; Trim-to-size sidewall panels
  • Install against a solid surface, such as wonderboard or greenboard (not directly to studs)
  • Limited Lifetime Warranty on Shower Door/Screen and SlimLine Shower Base, Limited One (1) Year Warranty on Q-Wall Backwalls



Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar Shower Stalls & Kits

SlimLine 32 in. x 32 in. Single Threshold Shower Kit Base in White Center Drain Base with Back Walls
current product
Aqua Fold 32 in. D x 32 in. W x 76 3/4 in. H Frameless Shower Door in Chrome with Base and Backwalls
Flex 32 in. x 32 in. x 76.75 in. Pivot Shower Kit Door in Chrome with Center Drain White Acrylic Base and Back Walls KitFlex 32 in. x 32 in. x 76.75 in. Framed Corner Pivot Shower Kit in Chrome with Shower Base in White
BrandDreamLineDreamLineDreamLineDreamLine
NameSlimLine 32 in. x 32 in. Single Threshold Shower Kit Base in White Center Drain Base with Back WallsAqua Fold 32 in. D x 32 in. W x 76 3/4 in. H Frameless Shower Door in Chrome with Base and BackwallsFlex 32 in. x 32 in. x 76.75 in. Pivot Shower Kit Door in Chrome with Center Drain White Acrylic Base and Back Walls KitFlex 32 in. x 32 in. x 76.75 in. Framed Corner Pivot Shower Kit in Chrome with Shower Base in White
Price
Ratings
(27)
(5)
(8)
(15)
Drain LocationCenterCenterCenterCorner
Approximate Length x Width32 x 3232 x 3232 x 3232 x 32
Shower Kit TypeBase & WallBase/Wall/DoorBase/Wall/DoorBase/Wall/Door
Installation TypeSquareSquareSquareSquare
Wall Installation TypeDirect-to-studDirect-to-studDirect-to-studDirect-to-stud
Shower TypeAlcoveAlcoveAlcoveAlcove
Wall Height (in.)76.757276.7576.75
View ProductView ProductView ProductView Product

Specifications

Dimensions

Base Height (in.)
2.75
Base Length (in.)
32
Base Width (in.)
32
Door Glass Thickness (in.)
1/4"
Door Height (in.)
72
Door Width (in.)
32
Fits Finished Width (in.)
32
Threshold Height (in.)
1.75
Walk Through Opening Height (in.)
72
Walk Through Opening Width (in.)
32 in.
Wall Height (in.)
72
Wall Width (in.)
32

Details

Approximate Length x Width
32 x 32
Color Family
Chrome
Color/Finish
White
Door Handle Type
Knob
Door Type
Bi Fold
Drain Location
Center
Features
Slip Resistant Floor
Frame Finish
Chrome
Frame Type
Frameless
Frame/Hardware Finish Family
Chrome
Glass Finish
clear
Glass Texture
Clear
Handle Finish
Chrome
Included
Door Hardware
Installation Type
Square
Material
Acrylic
Number of Finished Sides
3
Number of Shelves
2
Number of Shower Pieces
3 Pieces
Product Weight (lb.)
128 lb
Returnable
90-Day
Shower Kit Type
Base/Wall/Door
Shower Type
Alcove
Style
Modern
Surface Type
Smooth
Wall Installation Type
Direct-to-stud

Warranty / Certifications

Certifications and Listings
No Certifications or Listings
Manufacturer Warranty
Limited lifetime manufacturer warranty

Questions & Answers

12Questions10Answers

Does the center seam of the door leak? One reviewer commented that it doesn't close securely and...

Asked by PTT January 24, 2021
1
Answer

When installed properly and with the provided vinyl strips, you should not have any leaking of the Aqua Fold. If you have any other questions, please contact a DreamLine PreSales Consultant at 866-282-8413. We are available 8am-6pm EST, Monday through Friday and will be happy to answer any questions you may have. You may also send an email to support@dreamline.com. Thank you for considering DreamLine!

I actually have two questions. 1. Is it possible to get the Door with something other than chrom...

Asked by Jay November 4, 2020
1
Answer

The Aqua Fold is currently only available chrome. The acrylic wall panels are only available in white at this time. If you have any other questions, please contact a DreamLine PreSales Consultant at 866.282.8413. We are available 9am-6pm EST, Monday through and will be happy to answer any questions you may have. You may also send an email to support@dreamline.com or use our Chat with Expert feature on DreamLine.com.

The item description table lists this as a "direct to stud" system, while the installation PDF de...

Asked by 206fix November 2, 2020
1
Answer

The shower base is direct to studs. Then you will install backer board, and then install the wall panels to the backer board. This is truly a glue-up system. If you have any other questions, please contact a DreamLine PreSales Consultant at 866-282-8413. We are available 9am-6pm EST, Monday through Friday and will be happy to help you choose the perfect shower door for your space. You may also send an email to support@dreamline.com. Thank you for considering DreamLine!

What is the height to the drain opening? I have a drain rough that is about 2 1/2 inches out grou...

Asked by Jack September 29, 2020
1
Answer

The drain area rests about 3/8" above the subfloor. DreamLine recommends professional installation of our products. If you have any other questions, please contact a DreamLine PreSales Consultant at 866-282-8413. We are available 9am-6pm EST, Monday through Friday and will be happy to help you choose the perfect shower door for your space. You may also send an email to support@dreamline.com. Thank you for considering DreamLine!

hi can you tell me where I can find this exact item but instead 74 in tall.

Asked by rob July 5, 2020
1
Answer

This kit is not available in a 74" height. The wall panels could be trimmed, but the door with the shower base will measure 74-3/4" tall. If you have any other questions, please contact a DreamLine PreSales Consultant at 866-282-8413. We are available 9am-6pm EST, Monday through Friday and will be happy to help you choose the perfect shower door for your space. You may also send an email to support@dreamline.com. Thank you for considering DreamLine!

Where in the installation instructions do they talk about drilling/cutting openings into the side...

Asked by Doc June 23, 2020
1
Answer

Steps 10-12 of the installation manual talk about measuring and cutting for the fixtures. If you have any other questions, please contact a DreamLine PreSales Consultant at 866-282-8413. We are available 9am-6pm EST, Monday through Friday and will be happy to help you choose the perfect shower door for your space. You may also send an email to support@dreamline.com. Thank you for considering DreamLine!

Is the door reverseable?

Asked by ed February 4, 2019
1
Answer

The Aqua Fold is reversible for either right or left hand installation. If you have any other questions, please contact a DreamLine PreSales Consultant at 866-282-8413. We are available 9am-6pm EST, Monday through Friday and will be happy to help you choose the perfect shower door for your space. You may also send an email to support@dreamline.com. Thank you for considering DreamLine!

I have less than 74 3/4" in height. Can the glass be cut and would the hinge assy still be usable...

Asked by Carlos October 1, 2018
1
Answer

Unfortunately, we are unable to customize the Aqua Fold at this time and the glass cannot be cut. DreamLine has some shower doors that can be cut to your height, but those are available by working with your Home Depot and DreamLine's Custom Glass Group and they would be from the Unidoor Plus family. Your Home Depot representative will need to send an email to customglass@dreamline.com with your finished dimensions and specifications. Our Custom Glass Group will return a quote to your retailer within 1-2 business days for you to consider. If you have any other questions, please contact the DreamLine Customer Support Team at 866.731.2244. We are available 8am-7pm EST, Monday through Friday, and Saturdays from 9am to 5pm EST and will be happy to answer any questions you may have. You may also send an email to support@dreamline.com. Thank you for considering DreamLine!

Can this be trimmed to fit into a 31" opening?

Asked by Bob March 10, 2018
1
Answer

Unfortunately, the Aqua Fold shower door cannot be trimmed to fit a 31" opening. The acrylic walls can be trimmed, but the Base and Aqua Fold shower door are not able to be trimmed down. If you have any other questions, please contact the DreamLine Customer Support Team at 866.731.2244. We are available 8am-7pm EST, Monday through Friday, and Saturdays from 9am to 5pm EST and will be happy to answer any questions you may have. You may also send an email to support@dreamline.com. Thank you for considering DreamLine!

DreamLine states that the sidewalls are included. The community answer states that side walls are...

Asked by Sichuan February 11, 2018
1
Answer

The white Acrylic Walls that you see in the with the kit. You will receive a back panel and 2 side panels, along with the shower base and the Aqua Fold shower door. Hope this explains it more clearly. Please be sure to read the Product Description field carefully before making your choice. If you have any other questions, please contact the DreamLine Customer Support Team at 866.731.2244. We are available 8am-7pm EST, Monday through Friday, and Saturdays from 9am to 5pm EST and will be happy to answer any questions you may have. You may also send an email to support@dreamline.com. Thank you for considering DreamLine!

Aqua Fold 32 in. D x 32 in. W x 76 3/4 in. H Frameless Shower Door in Chrome with Base and Backwalls - page 2

Customer Reviews

  • 3
    out of 5 reviews
  • 0% recommend this product
Filter by:
Showing 1-5 of 5 reviews
Shower walls were flimsy and hard to adhere. Shower door was too short for space had a 2" opening...
Shower walls were flimsy and hard to adhere. Shower door was too short for space had a 2" opening to let water go everywhere.
by Sally
Door Too Small For Kit
I ordered this 32" X 32" kit because it had everything, the base, side and back walls and shower door. I installed the base and walls no problem but when I went to install the door, it was 2" narrower than the shower width. When I reached out to the Manufacturer, their reply was that this is "European Style" and offered no solution to solve my problem. Now I have to go buy another door to fit the opening. Poor description and poor customer service. I do NOT recommend and will never buy a Dreamline product in the future.
by FrustratedDIYer
5 Star Review
Rating provided by a verified purchaser
by Arnold
1 person found this helpful
The door on this model is very hard to open and close. There is nothing to stop the door from goi...
The door on this model is very hard to open and close. There is nothing to stop the door from going past the small ledge at the edge of the shower and the water leaks all over the floor. There should be some sort of magnet catch to keep it from doing this. The gap in the bifold is also hard to close all the way unless you grab it at the top and for the shorter members of our household this is not possible. Bad design.
by JulieRC
10 people found this helpful
Install easy...
Install easy
by HomeDepotCustomer
1 person found this helpful
Showing 1-5 of 5 reviews
