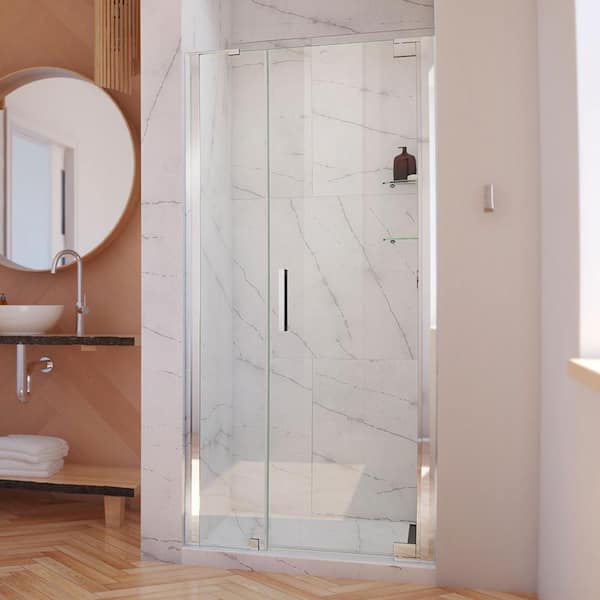

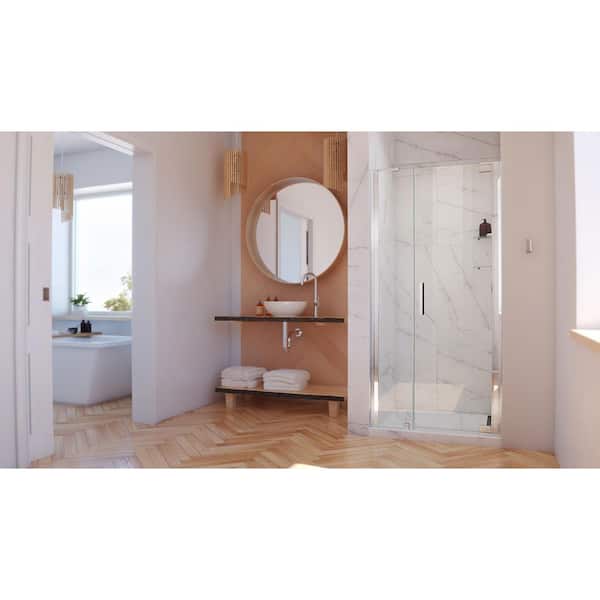

Elegance-LS 45-3/4 in. to 47-3/4 in. W x 72 in. H Frameless Pivot Shower Door in Chrome

  • Configuration: Swing Shower Door and Fixed Panel
  • Adjustable up to 1 in. per side for width or out-of-plumb walls
  • Patented L-Bar provides unobstructed support
  • See More Details

Frequently Bought Together

+
Price:

Product Overview

The DreamLine Elegance-LS pivot shower door or enclosure has a modern frameless design to enhance any decor with an open, inviting look. The Elegance-LS easily becomes the focal point of your bathroom with a custom glass look at an unmatched value. DreamLine exclusive ClearMax water repellant and stain resistant glass coating adds superior protection from stains and is nearly maintenance-free. Whether your bathroom project is large or small, DreamLine provides the ultimate solution for your renovation!
  • Model size: 45-3/4 - 47-3/4 in. W x 72 in. H
  • Walk-in opening: 28-1/4 in.
  • Configuration consists of a shower door and an inline panel
  • DreamLine exclusive ClearMax water repellant and stain resistant glass coating
  • Premium 3/8 in. (10 mm) thick certified clear tempered glass
  • Solid brass self-closing pivot hardware
  • Wall profiles allow up to 1 in. adjustment per side for width or out-of-plumb (uneven walls)
  • Reversible for a right or left door opening to fit your specific layout
  • L-Bar support bracket provides stability and an unobstructed, clean look
  • Hardware finish: Chrome
  • Optional SlimLine matching shower base available for some model sizes (sold separately)
  • Important: Measure the width of your shower space AFTER walls are finished (tile, back walls, etc.)
  • Professional installation recommended



Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar Alcove Shower Doors

current product
Elegance-LS 45-3/4 in. to 47-3/4 in. W x 72 in. H Frameless Pivot Shower Door in Chrome
Elegance-LS 44 in. to 46 in. W x 72 in. H Frameless Pivot Shower Door in ChromeElegance-LS 46-1/2 in. to 48-1/2 in. W x 72 in. H Frameless Pivot Shower Door in ChromeElegance-LS 44-3/4 in. to 46-3/4 in. W x 72 in. H Frameless Pivot Shower Door in Chrome
BrandDreamLineDreamLineDreamLineDreamLine
NameElegance-LS 45-3/4 in. to 47-3/4 in. W x 72 in. H Frameless Pivot Shower Door in ChromeElegance-LS 44 in. to 46 in. W x 72 in. H Frameless Pivot Shower Door in ChromeElegance-LS 46-1/2 in. to 48-1/2 in. W x 72 in. H Frameless Pivot Shower Door in ChromeElegance-LS 44-3/4 in. to 46-3/4 in. W x 72 in. H Frameless Pivot Shower Door in Chrome
Price
Ratings
(14)
(7)
(5)
(5)
Door TypePivotPivotPivotPivot
Frame/Hardware Finish FamilyChromeChromeChromeChrome
Frame TypeFramelessFramelessFramelessFrameless
Door Glass Thickness (in.)3/8"3/8"3/8"3/8"
Glass TextureClearClearClearClear
Walk Through Opening Height (in.)72727272
Door Handle TypeSquareSquareSquareSquare
View ProductView ProductView ProductView Product

Specifications

Dimensions

Door Glass Thickness (in.)
3/8"
Fits Finished Width (in.)
45
Installation Width
45.75 in. - 47.75 in.
Product Height (in.)
72 in
Walk Through Opening Height (in.)
72
Walk Through Opening Width (in.)
28.25 in.

Details

Door Handle Type
Square
Door Type
Pivot
Features
No Additional Features
Frame Finish
Chrome
Frame Type
Frameless
Frame/Hardware Finish Family
Chrome
Glass Finish
Clear
Glass Texture
Clear
Handle Finish
Chrome
Included
No Additional Items Included
Max Installed Width (in.)
47.75
Product Weight (lb.)
140.3 lb
Returnable
90-Day
Style
Modern

Warranty / Certifications

Certifications and Listings
No Certifications or Listings
Manufacturer Warranty
Limited Lifetime Manufacturer Warranty (Oil Rubbed Bronze and Satin Black finishes limited to 1 (one) year warranty)

Questions & Answers

4Questions4Answers

The pictures and parts list show an L-shaped bar to support the panel. The installation instruct...

Asked by Scott January 5, 2021
1
Answer

The Elegance-LS features an L-bracket, not an angled support arm. The support arm that is at an angle is shown on our Elegance Enclosure and that has been discontinued at this time. The Elegance LS door uses the L-bracket. If you have any other questions, please contact a DreamLine PreSales Consultant at 866-282-8413. We are available 8am-6pm EST, Monday through Friday and will be happy to answer any questions you may have. You may also send an email to support@dreamline.com. Thank you for considering DreamLine!

I also need a side buttress 39" H / 31.5" W. I can't find anything that meets this

Asked by KP December 12, 2019
1
Answer

Unfortunately, we do not customize the Elegance-LS at this time. DreamLine does customize the Unidoor Plus or the Unidoor-X, which would be able to be customized by working with DreamLine's Custom Glass Group. We invite you to contact our DreamLine PreSales Consultants at 866-282-8413 to discuss this further. We can also be reached by sending an email to support@dreamline.com. Our hours of operation are 9am-6pm EST, Monday through Friday. Thank you for your interest in DreamLine.

Can the panel be installed to an inline wall? The wall on one side will be parallel to the shower...

Asked by BillM August 21, 2019
1
Answer

The panel can be installed on an inline wall, but you will have to make sure that the wall is thick enough for the L-bracket support. The L-bracket needs 7" of finished wall from the panel to the end of the bracket for installation of the bracket. If you have any other questions, please contact a DreamLine PreSales Consultant at 866-282-8413. We are available 9am-6pm EST, Monday through Friday and will be happy to help you choose the perfect shower door for your space. You may also send an email to support@dreamline.com. Thank you for considering DreamLine!

Is the L support bracket reversible? I basically need the installation mirrored, and will need the L support to still face the inside of the shower.

Asked by Roosevelt January 19, 2019
1
Answer

You will receive 2 L-bar support brackets so that you can install the Elegance-LS either way. If you have any other questions, please contact the DreamLine Customer Support Team at 866.731. 8378. We are available 8am-6pm EST, Monday through Friday and will be happy to answer any questions you may have. You may also send an email to support@dreamline.com. Thank you for considering DreamLine!

Customer Reviews

  • 4.3
    out of 14 reviews
  • 75% recommend this product
Filter by:
Showing 1-10 of 14 reviews
Dreamline Elegance-LS Pivot w/L bar a dream!
I personally installed this door after several failed attempts to get a contractor (obviously it was meant to be!) This is a beautifully crafted door and simply looks stunning when finished. size of my door is Elegance LS pivot door 45 3/4-47 3/4 with L Bar. I would recommend this door to anybody looking for a quality,classy and elegant masterpiece. As of this writing it has been installed now for about two weeks and works great. The "ClearMax glass coating is a dream as the glass sheds water and residues as advertised. I installed this on Porcelain tile using Bauer diamond hole saw bits which cut through tile with ease. No issue whatsoever with damage, missing parts etc.I picked this up from Home Depot after on-line purchase (recommended in case damage in transit) . It came in 6 different boxes, two larger and the others smaller. I must add that I am a handy person who takes his time and studies the instructions over and over, and over again BEFORE even attempting to do a thing! With projects like this DO NOT EVER guess at what you are doing as it will spell trouble with the final install, and never skip a step. One bit of suggestion before it gets past me, one reviewer made the following comment concerning large glass door installation: And HE SAID :One tip of advice, the instructions say install hinges first on glass/ profile channel, then put glass door on hinges, which was very heavy and awkward. I think the hinges should be put on the door first, then install as one whole assembly to the glass profile channel ,unquote. Now I would normally NEVER alter the manufacturers suggestions but he was absolutely spot on! It would be very tedious and (as he put it) awkward to try and do it their way, and would take several assistants to help align that very heavy door to the hinges! But if you use this alternate approach it is a lot better. But I can see WHY the manufacturer suggest their technique, because care must be taken if doing it the alternative way as not to lift the door or place stress on the end where the hinge/glass profile is. If you avoid doing so it would be a tremendous advantage over the way the manual tells you to to it. Again if you do it this way NEVER place any kind of stress while lifting door on this part of door . I was able to use the alternative method with my wife assisting to EASILY slide the glass door/glass channel assy into the wall profile without a hitch! The way the door can be adjusted within either wall profile makes it very forgiving when it comes to slightly out-of-plum irregular spaces. Other than this one thing concerning hinges, the instructions are spot on. Also make sure you don't compromise on the "construction bubble level aspect as it helps to keep things level.This job was made a whole lot easier by purchasing a pair of professional 8 inch vacuum assisted suction cups from Home Depot which worked like a charm! In closing I would say if you are a handy-man kind of person this is definitely doable as I installed this with my wife only assisting as needed. I took my time completing it within a 3-4 day span working on it a few hours each time. Yes it could be completed quicker but I opted to do it this way. I would also suggest you follow the instructions on allowing the PANEL glass silicone to CURE within the glass channel about 24 hours BEFORE handling. Last bit of advise NEVER set your glass doors on a hard surface while installing, NEVER! Always use towels etc.when having to allow it to rest. Also pad your threshold prior to lifting glass into wall profile to avoid chipping, or potential disaster. Hope this helps someone out there, but I must say I understand why they say professional installation recommended......YOU MUST FOLLOW sound construction techniques , if you do, YOU CAN DO THIS!
by HappytoknowJESUS
Well built , solid , and beautiful
Installed this in my brand new bathroom , the door looks amazing. Perfect final touch, thick glass . The side channels makes out of plumb walls very forgiving, which mine were about 1/8” off despite being newly constructed , but no problem with this door. It did take a while for me to install , but I took my time and did not rush. One tip of advice, the instructions say install hinges first on glass/ profile channel, then put glass door on hinges, which was very heavy and awkward. I think the hinges should be put on the door first, then install as one whole assembly to the glass profile channel.
by MikeRock
First class, but directions were hard to follow....
First class, but directions were hard to follow.
by Tom
Beautiful, but leaks terribly
You have to get this door absolutely perfect to avoid leaking, as there are no adjustable hinges, and the seals are rigid. Such is not the case with ours, so it leaks terribly. I wish I would have chose something els.
by Mike
Response from DreamLineFeb 25, 2021
Thank you for your feedback. Under normal usage, your Elegance-LS should not be leaking like you describe. It sounds as if some of the vinyl strips are installed incorrectly. We invite you to contact our DreamLine Customer Support Team at 866-731-8378 to discuss this further. The technician may request photos of your installation to diagnose the problem. We can also be reached by sending an email to support@dreamline.com. Our hours of operation are 8am-6pm EST, Monday through Friday. We look forward to helping you soon. bathauthority
Rating provided by a verified purchaser...
Rating provided by a verified purchaser
by HomeDepotCustomer
The water proof rubbers don’t work very well. It leaks...
The water proof rubbers don’t work very well. It leaks when I shower.
by FERNANDO
Easy to install and very sturdy door. I've installed...
Easy to install and very sturdy door. I've installed many brands of shower doors and this one for the price and quality easily ranks at the top.
by Plumber
The door is a beautiful addition to our new bath....
The door is a beautiful addition to our new bath. I would have given it 5 stars but it seems to have one annoying flaw. Water pools under the "sweep" at the base. When the door is opened to exit the shower, the water is swept on the floor. Also, the installation instructions are not very clearly written. There are supporting videos online but unless you have experience, I would suggest hiring a professional to install the door. On another note, I called DreamLine's Customer Service with a question. The representative was knowledgeable, helpful and friendly. I would definitely give him 5 stars.
by NanaB
Installed the door Along with my contractor. With any frameless...
Installed the door Along with my contractor. With any frameless door it’s a bit tricky. Particularly with lining up the door so it closes. All and all real happy with the door.
by Pete
Seals are ineffective and the shower leaks ...
Seals are ineffective and the shower leaks
by HomeDepotCustomer
Response from DreamLineDec 3, 2019
Thank you for your feedback. When installed correctly the vinyl strips on the Elegance-LS will block water from escaping from your shower. Sometimes a strip is cut incorrectly or installed incorrectly and allows water to leak. DreamLine Customer Support would be happy to look at photos of your installation to assess the situation, and send out new strips, if needed. We invite you to contact our DreamLine Customer Support Team at 866-731-8378 to discuss this further. We can also be reached by sending an email to support@dreamline.com. Our hours of operation are 8am-6pm EST, Monday through Friday. Thank you for choosing DreamLine and for your feedback. bathauthority
