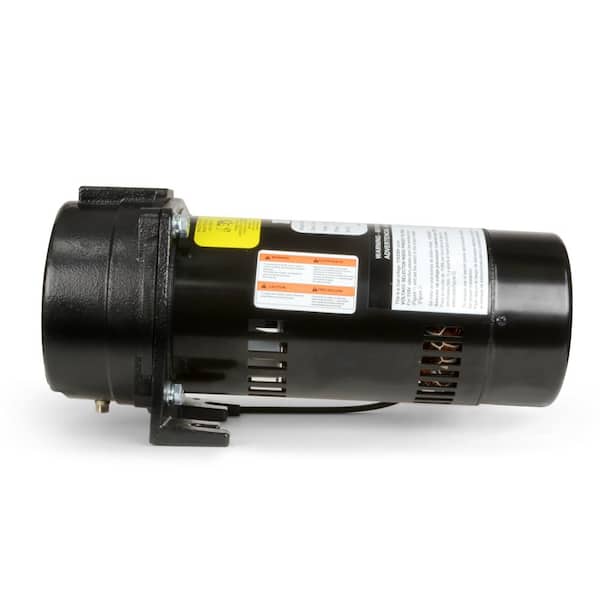

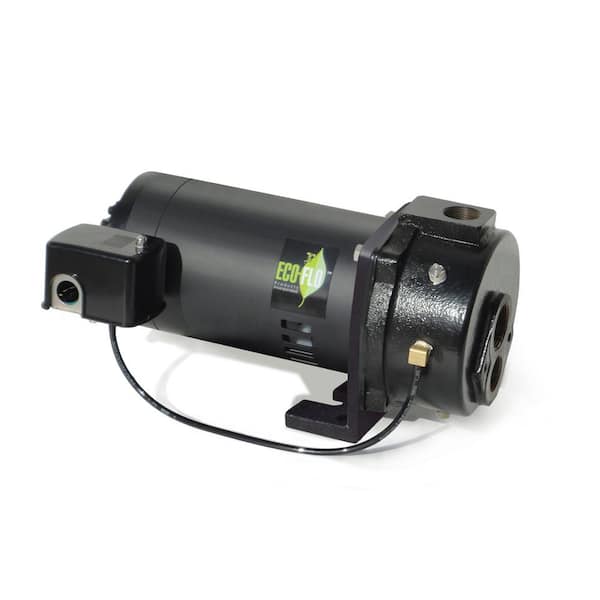

3/4 HP Convertible Deep Well Jet Pump

$ 179 99

Overview

The EFCWJ7 3/4 HP convertible jet pump can be utilized in shallow or deep well installations. Ideal for shallow well applications with pumping levels to 25 ft. and pumping levels to 90 ft. for deep well applications. Jet package included with pump, well injector casting, jet nozzle, venture tubes and hardware for both Shallow Well and Deep Well applications.
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Frequently Bought Together

Product Overview

The EFCWJ7 3/4 HP convertible jet pump can be utilized in shallow or deep well installations. Ideal for shallow well applications with pumping levels to 25 ft. and pumping levels to 90 ft. for deep well applications. Jet package included with pump, well injector casting, jet nozzle, venture tubes and hardware for both Shallow Well and Deep Well applications.
  • 30-50 pressure switch and pressure gage included with the pump
  • Pre-set, pre-wired pressure switch for automatic operation when used with water system tank
  • Cast iron construction
  • All units are dual voltage - 115-Volt/230-Volt
  • Click here for more information on Electronic Recycling Programs
  • California residents see Prop 65 WARNINGS

Product Overview

Model #: EFCWJ7
Internet #: 207062803

The EFCWJ7 3/4 HP convertible jet pump can be utilized in shallow or deep well installations. Ideal for shallow well applications with pumping levels to 25 ft. and pumping levels to 90 ft. for deep well applications. Jet package included with pump, well injector casting, jet nozzle, venture tubes and hardware for both Shallow Well and Deep Well applications.

  • 30-50 pressure switch and pressure gage included with the pump
  • Pre-set, pre-wired pressure switch for automatic operation when used with water system tank
  • Cast iron construction
  • All units are dual voltage - 115-Volt/230-Volt
  • Click here for more information on Electronic Recycling Programs
  • California residents see Prop 65 WARNINGS

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar

Compare Similar Products
Brand AquaPro ECO FLO Superior Pump AquaPro
Name 1/2 HP Convertible Jet Pump 3/4 HP Convertible Deep Well Jet Pump 94115 1 HP Convertible Jet Pump 1/2 HP Convertible Jet Pump with 6 Gal. Tank
Price
$178.20
$179.99
Was $273.39
$246.05
Save $27.34 (10%)
$298.00
Ratings (14) (11) (3) (19)
View Product View Product View Product View Product

Specifications

Dimensions

Product Depth (in.)
21.65
Product Height (in.)
13.38
Product Width (in.)
11.61

Details

Amperage (amps)
10
Cord Length (ft.)
0
Discharge Flow 0 ft. @ 40 PSI (gallons/hour)
1200
Discharge Flow 15 ft. @ 40 PSI (gallons/hour)
498
Discharge Flow 25 ft. @ 40 PSI (gallons/hour)
420
Discharge Flow 40 ft. @ 40 PSI (gallons/hour)
306
Discharge Flow 50 ft. @ 40 PSI (gallons/hour)
606
Discharge Flow 60 ft. @ 40 PSI (gallons/hour)
180
Discharge Flow 90 ft. @ 40 PSI (gallons/hour)
90
Features
Thermal Overload Protection
Head Pressure (ft.)
129.17
Housing Material
Cast-Iron
Included
No Additional Items Included
Inlet Connection
Threaded female
Jet Pump Product Type
Convertible
Maximum Horsepower (hp)
.75
Maximum Pressure (psi)
56
Maximum Working Temperature (F)
77
Minimum working temperature (F)
35
Number of Impellers
1
Outlet Connection
Threaded female
Power Type Required
AC
Product Weight (lb.)
38.5lb
Pump Switch Type
Switchless
Returnable
90-Day
Voltage
115v

Warranty / Certifications

Certifications and Listings
No Certifications or Listings
Manufacturer Warranty
12 month warranty

Specifications

Dimensions

Product Depth (in.)
21.65
Product Height (in.)
13.38
Product Width (in.)
11.61

Details

Amperage (amps)
10
Cord Length (ft.)
0
Discharge Flow 0 ft. @ 40 PSI (gallons/hour)
1200
Discharge Flow 15 ft. @ 40 PSI (gallons/hour)
498
Discharge Flow 25 ft. @ 40 PSI (gallons/hour)
420
Discharge Flow 40 ft. @ 40 PSI (gallons/hour)
306
Discharge Flow 50 ft. @ 40 PSI (gallons/hour)
606
Discharge Flow 60 ft. @ 40 PSI (gallons/hour)
180
Discharge Flow 90 ft. @ 40 PSI (gallons/hour)
90
Features
Thermal Overload Protection
Head Pressure (ft.)
129.17
Housing Material
Cast-Iron
Included
No Additional Items Included
Inlet Connection
Threaded female
Jet Pump Product Type
Convertible
Maximum Horsepower (hp)
.75
Maximum Pressure (psi)
56
Maximum Working Temperature (F)
77
Minimum working temperature (F)
35
Number of Impellers
1
Outlet Connection
Threaded female
Power Type Required
AC
Product Weight (lb.)
38.5lb
Pump Switch Type
Switchless
Returnable
90-Day
Voltage
115v

Warranty / Certifications

Certifications and Listings
No Certifications or Listings
Manufacturer Warranty
12 month warranty

Questions & Answers

Please excuse my ignorance. I only have 1 pipe going into my well to the foot valve, can I still ...

Please excuse my ignorance. I only have 1 pipe going into my well to the foot valve, can I still use this pump? Thank You, Mark
Asked by: Mark
my new 1 hp pump came with another box of parts one larger piece that bolts on pump housing and two plastic parts that don't fit any where they are to little so I didn't use them , I put the pump on A 20ft.deep 1 1/4 driven well point the water is down 5 ft.in the 1 1/4 but pump won't bring it up
Answered by: Donald
Date published: 2019-01-26

Can i use pvc adapter for this pump?

Asked by: Dwyane
Hi Dwyane, yes you can install using an adapter. Be sure to seal all connections properly to eliminate any air Customer Service
Answered by: Everbilt Customer Service
Date published: 2018-07-16

can I use this a vertical pump?

can I use this a vertical pump?
Asked by: bear20
This pump must be installed in a horizontal position. Customer Service
Answered by: Everbilt Customer Service
Date published: 2017-08-16
  • y_2019, m_6, d_23, h_3CST
  • bvseo_bulk, prod_bvqa, vn_bulk_2.0.12
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_3
  • loc_, sid_207062803, prod, sort_[SortEntry(order=NUM_ANSWERS, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=BEST_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=POSITIVE_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=NUM_ANSWERS, direction=DESCENDING)]
  • clientName_homedepot
  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 36ms
  • QUESTIONS, PRODUCT

Customer Reviews

3/4 HP Convertible Deep Well Jet Pump is rated 4.6 out of 5 by 11.
Rated 5 out of 5 by from The potential of a 10 Amp currant flow at 110V, this water pump sucked the water up from 35 feet ... The potential of a 10 Amp currant flow at 110V, this water pump sucked the water up from 35 feet down my well and up an incline of approx.’ 40 feet high. It then travels 135 feet to up the incline to the storage tank that is another 15 feet off the ground with ease. The tank is a 120 gallon and was filled in about 15 minutes. The pump weighs about 40 LBS and the parts supplied fitted flawlessly. The wiring was simple as I was simply replacing an old 5 year pump that had been fried following a lightning strike that is similar to this one. Am very satisfied at the way it pumps water all the way to my storage tank, and considering the length of its travel along with the height, this well pump is more than adequate. The pressure gauge displayed 42psi during the first initial use and subsequent use dropped to 35psi (the 135 foot hose already being primed after the first use. Very impressive cast iron construction that is corrosion Resistant. The assembly which included the wiring took only 20 minutes and was pumping water up to the storage bladder a few minutes later. Very impressed with the power and speed in which it filled the tank. Has a dual voltage of 115/230V and is self-priming and a thermal Overload Protection It comes with a 12 month warranty and has a 90 day return policy. Excellent instructions supplied.
Date published: 2018-02-21
Rated 5 out of 5 by from 3/4 HP Well jet pump Everthing we wanted in new pump. Super easy to install. Arrived exactly when it was supposed to.
Date published: 2019-05-30
Rated 5 out of 5 by from Just remember that there is no built in check valve. Just remember that there is no built in check valve.
Date published: 2019-06-04
Rated 5 out of 5 by from 5 Star Review Rating provided by a verified purchaser
Date published: 2019-05-01
Rated 5 out of 5 by from I installed well points on our 1/2 acre property to water our vegetables and our flowers. I insta... I installed well points on our 1/2 acre property to water our vegetables and our flowers. I installed three wells all joined together and serviced by this pump. They are all shallow wells of less than 25’ deep. I secure the pump onto a concrete slab because vibration is your enemy on pumps! I prefer to operate my well pumps on 230 volts. At this voltage you can use a smaller gauge wire, use less electric and run cooler. I have also installed a grounding rod by the pump because we are in Florida which is the lightning capital of the USA. I have installed numerous pumps and every install I read the instructions. This pump has the absolutely best instructions ever! Instructions are extremely easy to follow. Even if this is your first pump install you will have no problems installing the pump. One tip is because pumps will run hot I always have at least 12” of galvanized pipe in the input and output ports. I have found if you use plastic pipe it can become distorted when the pump runs a la long time and becomes hot. Happy with the flow which was 6.1 GPM. Very good considering the pump is drawing from three wells. Because we use drip irrigation this is ample flow for us. Absolutely no negatives on this extremely heavy cast iron pump!
Date published: 2018-02-27
Rated 5 out of 5 by from 5 Star Review Rating provided by a verified purchaser
Date published: 2019-02-07
Rated 5 out of 5 by from Aside from our drilled well we have a 25-30’ dug well on our property which we wanted to use for ... Aside from our drilled well we have a 25-30’ dug well on our property which we wanted to use for non-drinking applications. It was very nice to be able to find a complete package for an easy installation. Also, pleased by the cast iron construction since you can buy plastic ones but the longevity would not be as great. Installation was pretty straight forward and went quickly and easily. We are using on 115-volt as an on-demand system. After 6 months of use is still working as well as the first day. We are using on average 2-3 days per week for anywhere from 15 minutes to 2hrs.
Date published: 2018-10-11
Rated 5 out of 5 by from A great jet pump for most applications. I think if you are going to go to the max of 90 feet you... A great jet pump for most applications. I think if you are going to go to the max of 90 feet you may want to consider a larger pump. The pump at 90' depth will only output 1.5 gallons per minute. The pump at 15 will do a little over 8 gallons per minute. My application was simple on a rain barrel. I have it on a 110 switch and since it is self priming I didn't need a pressure tank. I just turn it on when I need the water and turn the pump off when I am finished. It's very heavy but since it is made from cast iron it is to be expected. On that note, I like pipe sealant instead of teflon tape for cast iron. (My preference) I can easily drain a 55 gallon rain barrel in less then 5 minutes so I know I'm cranking out so I know I am churning out over 10 gallons per minute. The garden loves it!
Date published: 2018-03-25
