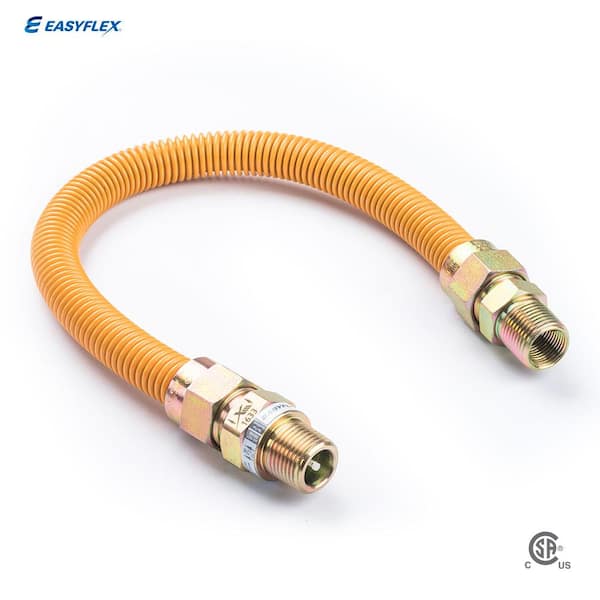

1/2 in. MIP x 1/2 in. MIP x 36 in. Coated Stainless Steel Gas Connector (5/8 in. O.D.) with Gastop EFV (125,000 BTU)
Frequently Bought Together
Price:
$1709
Product Overview

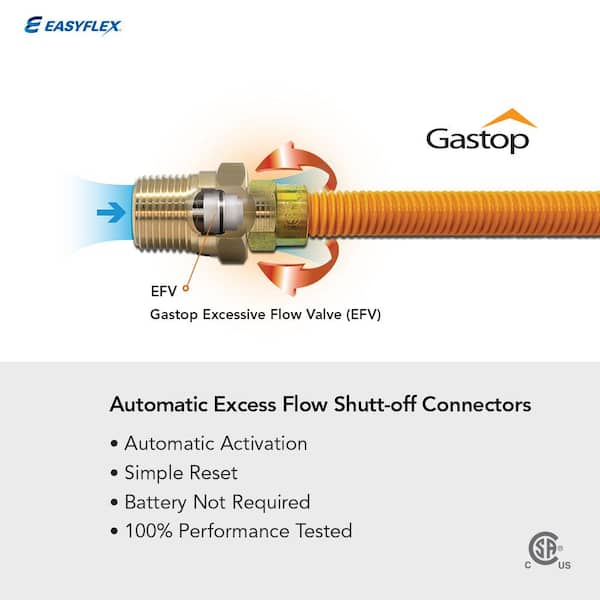

EasyFlex gas connector equipped with patented gas top Excess Flow Valve (EFV). In case of a gas line rupture or a disconnect from the appliance, EasyFlex EFV detects the increase of gas flow and immediately stops the flow of gas to prevent catastrophic gas leaks. The valve will remain activated until the gas line is properly repaired. Automatic activation and reset-no battery required-100% leak and performance tested.
- Tube: 5/8 in. O.D. (1/2 in. I.D.) corrugated stainless steel (SS304) with yellow epoxy coating
- Adaptors (fittings): 1/2 in. MIP x 1/2 in. MIP with excess flow valve, made of zinc-plated steel
- Rated pressure and operating temperature: 0.5 psi /-40F to 150F
- Certifications:- ANSI Z21.24/ CSA 6.10 gas appliances-ANSI Z21.75/CSA 6.27 outdoor gas appliances and manufactured homes-ANSI Z21.93/CSA 6.30 excess flow valves for natural and LP gas with pressures up to 5 psi
- Additional certifications:- commonwealth of Massachusetts board of state examiners-city of New York-MEA# 376-92-M
- Excess flow valve adaptor to be connected with gas shut-off ball valve (inlet)
- Manufactured by ISO9001 certified facility
- Suitable for gas range, oven and furnace
- 125,000 BTU rated
- California residents
Product Overview
EasyFlex gas connector equipped with patented gas top Excess Flow Valve (EFV). In case of a gas line rupture or a disconnect from the appliance, EasyFlex EFV detects the increase of gas flow and immediately stops the flow of gas to prevent catastrophic gas leaks. The valve will remain activated until the gas line is properly repaired. Automatic activation and reset-no battery required-100% leak and performance tested.
Compare Similar CSST Pipe
 | |  | | |
| Brand | HOME-FLEX | EasyFlex | EasyFlex | EasyFlex |
| Name | 1/2 in. CSST MPT/FPT Stainless Steel Adapter Kit (1) 1/2 in. MPT Male Adapter (1) FPT Female Adapter | 1/2 in. MIP x 1/2 in. MIP x 36 in. Coated Stainless Steel Gas Connector (5/8 in. O.D.) with Gastop EFV (125,000 BTU) | 1/2 in. MIP x 1/2 in. MIP x 48 in. Coated Stainless Steel Gas Connector (5/8 in. O.D.) with Gastop EFV (106,000 BTU) | 1/2 in. MIP x 1/2 in. MIP x 60 in. Coated Stainless Steel Gas Connector (5/8 in. O.D.) with Gastop EFV (93,200 BTU) |
| Price | $1687 | $1709 | $1979 | $2159 |
| Ratings | (123) | (3) | (1) | (2) |
| Nominal Inside Pipe Diameter (In.) | 1/2" | 1/2" | 1/2" | 1/2" |
| Product Length (ft.) | 0 | 3 ft | 4 ft | 5 ft |
| Application | Natural Gas,Propane | Natural Gas,Propane | Natural Gas,Propane | Natural Gas,Propane |
| Actual outside diameter (in.) | .625 | 0.625 | 0.625 | 0.625 |
| Pipe Features | No Additional Features | Corrosion Resistant | Corrosion Resistant,Flexible | Corrosion Resistant |
| Material | Brass | Steel | Steel | Steel |
| Actual inside diameter (in.) | .5 | 0.5 | 0.5 | 0.5 |
| View Product | View Product | View Product | View Product |
Compare Similar CSST Pipe
| | | | |
| Brand | HOME-FLEX | EasyFlex | EasyFlex | EasyFlex |
| Name | 1/2 in. CSST MPT/FPT Stainless Steel Adapter Kit (1) 1/2 in. MPT Male Adapter (1) FPT Female Adapter | 1/2 in. MIP x 1/2 in. MIP x 36 in. Coated Stainless Steel Gas Connector (5/8 in. O.D.) with Gastop EFV (125,000 BTU) | 1/2 in. MIP x 1/2 in. MIP x 48 in. Coated Stainless Steel Gas Connector (5/8 in. O.D.) with Gastop EFV (106,000 BTU) | 1/2 in. MIP x 1/2 in. MIP x 60 in. Coated Stainless Steel Gas Connector (5/8 in. O.D.) with Gastop EFV (93,200 BTU) |
| Price | $1687 | $1709 | $1979 | $2159 |
| Ratings | (123) | (3) | (1) | (2) |
| Nominal Inside Pipe Diameter (In.) | ||||
| Product Length (ft.) | ||||
| Application | ||||
| Actual outside diameter (in.) | ||||
| Pipe Features | ||||
| Material | ||||
| Actual inside diameter (in.) | ||||
| View Product | View Product | View Product | View Product |
Specifications
Dimensions
Actual inside diameter (in.)
0.5
Actual outside diameter (in.)
0.625
Nominal Inside Pipe Diameter (In.)
1/2"
Pipe Wall Thickness (In.)
0.01
Product Length (ft.)
3 ft
Details
Application
Natural Gas,Propane
Color Family
Yellow
Color/Finish
YELLOW
Connectivity
Threaded
Material
Steel
Maximum Flow Rate (gallons per minute)
0
Maximum working pressure (psi)
0.5
Maximum Working Temperature (F)
150
Minimum working temperature (F)
-40
Pack Size
1
Pipe Features
Corrosion Resistant
Pipe or Fitting Product Type
Fittings & Connectors
Product Weight (lb.)
1 lb
Returnable
180-Day
Warranty / Certifications
Certifications and Listings
CSA Certified
Manufacturer Warranty
1 Year Limited Warranty
