Model # MB816B200BTSV

Internet #202275999

Store SKU #873880

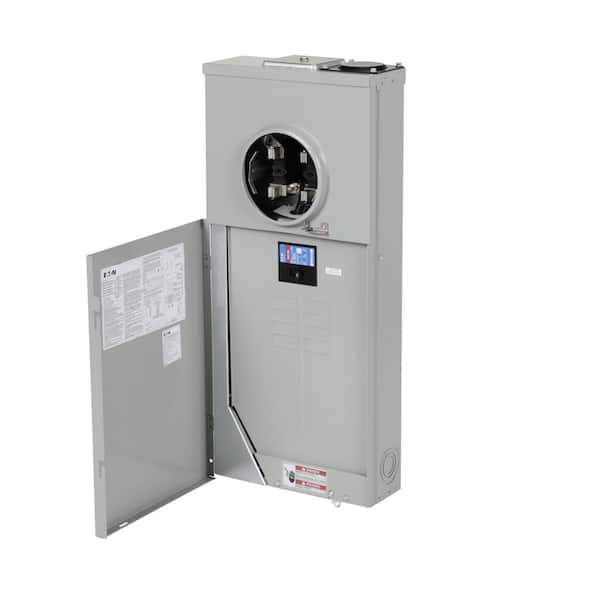

Eaton 200 Amp 8/16-Circuit BR Meter Breaker Value Pack Includes 5 Single Pole 15 Amp and 1 Double Pole 30 Amp Breaker
0782114858615

Eaton

200 Amp 8/16-Circuit BR Meter Breaker Value Pack Includes 5 Single Pole 15 Amp and 1 Double Pole 30 Amp Breaker

  • Commercial grade main breaker
  • Tin plated Aluminum bus
  • Steel backpan for reliable breaker mounting
$15400 /each
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Product Overview

  • Commercial grade main breaker
  • Tin plated Aluminum bus
  • Steel backpan for reliable breaker mounting
Eaton's residential meter breakers are service entrance equipment systems that consist of a single meter socket and load center or a meter socket and main breaker combined in one enclosure. This design provides the contractor with labor and material savings. The meter breakers are constructed to meet the latest NEC wire bending space requirements. The MB816B200BTSV is a 200 amp, 8 space, 16 circuit outdoor panel. This is a value pack for the cost conscious consumer or contractor. Included are 5-1P 15AMP and 1-2P 30AMP circuit breakers.
  • Type BR NON-EUSERC residential meter breaker
  • Amperage rating: 200A
  • Bus material: aluminum
  • Rated NEMA 3R for outdoor use
  • Feed type: overhead/underground
  • Interrupt rating: 10 kAIC
  • Main circuit breaker: BW2200
  • Mounting: surface mounting
  • Number of spaces: 8
  • Number of circuits: 16
  • Number of jaws: 4-jaws
  • Number of sockets: 1
  • Phase: single-phase
  • Security: ringless
  • Voltage rating: 120/240V
  • Used with: type BR breakers
  • Circuit breakers included: 5-BR115 and 1-BR230
  • Learn More About Electrical Panels Here in our Buying Guide.



Product Overview

  • Commercial grade main breaker
  • Tin plated Aluminum bus
  • Steel backpan for reliable breaker mounting
Model #: MB816B200BTSV
Sku #: 873880
Internet #: 202275999

Eaton's residential meter breakers are service entrance equipment systems that consist of a single meter socket and load center or a meter socket and main breaker combined in one enclosure. This design provides the contractor with labor and material savings. The meter breakers are constructed to meet the latest NEC wire bending space requirements. The MB816B200BTSV is a 200 amp, 8 space, 16 circuit outdoor panel. This is a value pack for the cost conscious consumer or contractor. Included are 5-1P 15AMP and 1-2P 30AMP circuit breakers.

  • Type BR NON-EUSERC residential meter breaker
  • Amperage rating: 200A
  • Bus material: aluminum
  • Rated NEMA 3R for outdoor use
  • Feed type: overhead/underground
  • Interrupt rating: 10 kAIC
  • Main circuit breaker: BW2200
  • Mounting: surface mounting
  • Number of spaces: 8
  • Number of circuits: 16
  • Number of jaws: 4-jaws
  • Number of sockets: 1
  • Phase: single-phase
  • Security: ringless
  • Voltage rating: 120/240V
  • Used with: type BR breakers
  • Circuit breakers included: 5-BR115 and 1-BR230
  • Learn More About Electrical Panels Here in our Buying Guide.



Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar

Price
$152.25 /each
$154.00 /each
$169.00 /each
$289.00 /each
Name 200 Amp 4-Space 8-Circuit EUSERC BR Type Main Breaker Meter Breaker Ranch Panel 200 Amp 8/16-Circuit BR Meter Breaker Value Pack Includes 5 Single Pole 15 Amp and 1 Double Pole 30 Amp Breaker 200 Amp 20-Space 40-Circuit BR Type Main Breaker Meter Breaker CH 200 Amp Lever Bypass 12 Circuit Meter Breaker
Brand Eaton Eaton Eaton Eaton
Ratings (2) (3) (1) (1)
Mounting type Surface Surface Surface Surface
Maximum Amperage (amps) 200 200 200 200
Number of Spaces 4 8 20 12
Voltage (volts) 120/240 120/240 120/240 120/240
View Product View Product View Product View Product

Specifications

Dimensions

Load center depth (in.)
4.75
Load center height (in.)
33.50
Load center width (in.)
14.5

Details

Electrical Product Type
Load Center
Indoor/Outdoor
Outdoor
Load Center Type
Combination
Maximum Amperage (amps)
200
Mounting type
Surface
Number of Phases
1
Number of Spaces
8
Product Weight (lb.)
42.5lb
Returnable
90-Day
Voltage (volts)
120/240

Warranty / Certifications

Certifications and Listings
1-UL Listed,ANSI Certified
Manufacturer Warranty
10 Years

Specifications

Dimensions

Load center depth (in.)
4.75
Load center height (in.)
33.50
Load center width (in.)
14.5

Details

Electrical Product Type
Load Center
Indoor/Outdoor
Outdoor
Load Center Type
Combination
Maximum Amperage (amps)
200
Mounting type
Surface
Number of Phases
1
Number of Spaces
8
Product Weight (lb.)
42.5lb
Returnable
90-Day
Voltage (volts)
120/240

Warranty / Certifications

Certifications and Listings
1-UL Listed,ANSI Certified
Manufacturer Warranty
10 Years

Questions & Answers

Can this be used for a double wide mobile home?

Asked by: ChrisS
Yes, this can be used for a mobile home.
Answered by: CommunityAnswer
Date published: 2017-04-22

do you have the utility pole

Do you offer installation
Asked by: clueless
Hi Clueless, unfortunately we do not offer a utility pole on Homedepot.com. We appreciate your business and look forward to serving you in the future. Thank you for shopping Home Depot!
Answered by: THDSupport
Date published: 2016-03-04

Does it have a by pass lever in it?

Ameren UE requires a by pass lever in all meters. need a meter/load center combination with a by pass lever. Can you tell which one is?
Asked by: Sara
  • y_2017, m_11, d_24, h_5CST
  • bvseo_bulk, prod_bvqa, vn_bulk_2.0.3
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_3
  • loc_, sid_202275999, prod, sort_[SortEntry(order=NUM_ANSWERS, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=BEST_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=POSITIVE_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=NUM_ANSWERS, direction=DESCENDING)]
  • clientName_homedepot
  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 111ms
  • QUESTIONS, PRODUCT

Customer Reviews

200 Amp 8/16-Circuit BR Meter Breaker Value Pack Includes 5 Single Pole 15 Amp and 1 Double Pole 30 Amp Breaker is rated 4.3 out of 5 by 3.
Rated 3 out of 5 by from Good enough. This box is OK for what I bought it for however I wish the quality was a little better the fit of the metal covers and the service cable cover are very loose fit and leaves gaps around the breaker cover over all it will do the job but if I buy another one I will try another type.
Date published: 2017-02-15
Rated 5 out of 5 by from good panel, on time The panel arrived sooner then expected and was in good shape
Date published: 2016-08-16
Rated 5 out of 5 by from Great Deal on Eaton Meter/breaker panel Showed up quickly, and ready to use out of the box, just hang it, wire it and call the electric company.
Date published: 2014-11-04
