Model # BRN120A1CS

Store SKU # 1004856052

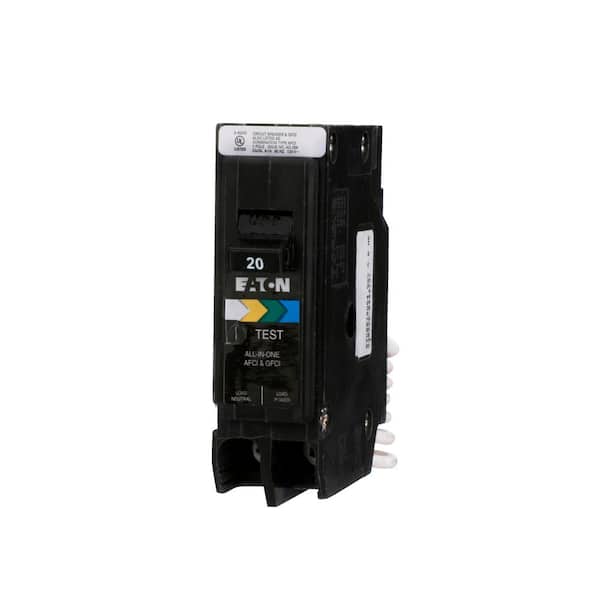

BR 20 Amp All in One AF/GF Breaker

$64.57
Apply Now
Pay $39.57 after $25 OFF your total qualifying purchase upon opening a new card. info
Apply for a Home Depot Consumer Card
  • Offers a single location to access and identify tripped circuits
  • Compactly sized with extra gutter space for quick installation
  • Enhanced algorithms help minimize unwanted nuisance tripping
  • View More Details
Store
0 in stock
icon
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase. Read Return Policy

Product Details

About This Product

Eaton's BR Circuit Breakers are used in indoor and outdoor BR load centers, spa panels, meter breakers and sub panels. Eaton's dual purpose arc fault/ground fault (AFCI/GFCI) circuit interrupter offers both types of protection in one familiar package, provides quick installation, and a single location to easily access and identify tripped circuits. The short-body AF/GF breaker can replace or fulfill all AFCI, GFCI or AF/GF requirements in an Eaton panel.

Highlights

  • 1-pole, 20-amp, 120-volt
  • Standard pigtail
  • Compatible for use in type BR load centers and meter breaker panels
  • Provides 1-device for both arc fault (AFCI) and ground fault (GFCI) protection for the entire circuit, allowing for a single point of reset
  • Offers complete protection from AFCI and GFCI for the entire circuit, including home-runs
  • Enables a lower installed cost versus other code-approved alternatives by using only one device to achieve both AFCI and GFCI protection
  • Integral LED indicates different trip causes including thermal overload indication, thus reducing troubleshooting time
  • Short-body configuration maximizes gutter space providing ease of conductor installation
  • Reduced clutter of pigtails provides a clean gutter space and professional appearance
  • Added and improved diagnostic trip codes designed for complex occurrences and overloads provide you ease of troubleshooting during maintenance
  • Easy to read trip codes through improved LEDs and a clear test button increases your troubleshooting efficiency
  • Improved AFCI and GFCI algorithms significantly reduce nuisance tripping, resulting in less call backs
  • Click here for more information on Electronic Recycling Programs
  • Return Policy

Product Information

Internet # 311720450

Model # BRN120A1CS

Store SKU # 1004856052

Additional Resources

Shop All Eaton

Specifications

Dimensions: H 3 in, W 3 in, D 1 in

Dimensions

Product Depth (in.)

1 in

Product Height (in.)

3 in

Product Width (in.)

3 in

Details

AIC Rating

10000

Breaker Type

Main Breaker

Connection Type

Neutral

Electrical Product Type

Breaker

Included

No Additional Items Included

Interruption Type

AFCI/GFCI

Maximum Amperage (A)

20 A

Mounting Type

Plug-On

Number of Poles

1

Pack Size

1

Power Distribution Features

No Additional Features

Product Weight (lb.)

.5 lb

Returnable

90-Day

Series Type

BR

Trip Unit

Electronic

Voltage (V)

120/240 V

Warranty / Certifications

Certifications and Listings

UL Listed

Manufacturer Warranty

5 Years

Questions & Answers

29Questions
caret
Q:Is this compatible with a Challenger SLB12(12-24)CT panel?
by|Apr 20, 2024
1 Answer
Answer This Question

A:  Hello, Eaton BR breakers are UL listed for Challenger panels. Therefore, the BRN120A1CS can be used. If you have more questions or concerns, please call our technical support team at 877-386-2273 Opt. 2 Opt. 3 Opt. 1 and we would be happy to assist you.

by|Apr 23, 2024
    caret
    Q:Are BR breakers compatible with siemens panel?
    by|Apr 15, 2024
    1 Answer
    Answer This Question

    A:  Hello, Unfortunately, BR breakers are not UL listed for Siemens panels. However, we do offer classified breakers that are UL listed for Siemens panels. For example, CLCAF120 and CLGF120.

    by|Apr 18, 2024
      caret
      Q:After installing solar panels, Eaton BR AFCI/GF trip during periods when the solar panels are at high output. This does not happen with any other BR circuit breaker, including AFCI or GF, just the dual function breakers. Has this issue been resolved?
      by|Apr 12, 2024
      1 Answer
      Answer This Question

      A:  Hello, Sorry you are having tripping issues. Please call our technical support team at 877-386-2273 Opt. 2 Opt. 3 Opt. 1 and we can discuss the issue in further detail.

      by|Apr 19, 2024
        caret
        Q:Can I use this in a late 1990's cutler hammer panel with ch series breakers
        by|Feb 24, 2024
        1 Answer
        Answer This Question

        A:  Hello, The BR series and CH series are not interchangeable unfortunately. If you are looking for an AFCI/GFCI breaker you can use a CHFN120A1CS. If you need more help selecting the correct breaker, please call our technical support team at 877-386-2273 Opt. 2 Opt. 3 Opt. 1 and we would be happy to assist you.

        by|Feb 27, 2024
