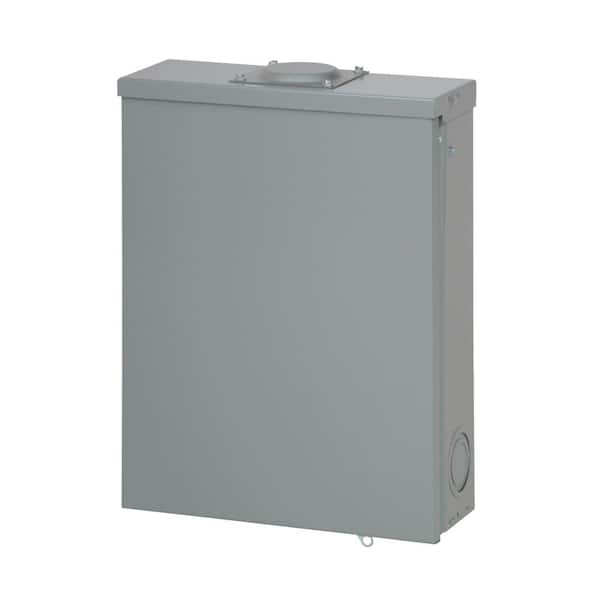

BR 200 Amp 24-Circuit Outdoor Main Lug Plug-On Neutral Load Center
- Quicker, easier and cleaner installation, saving you time
- Plug-on neutral design for ease of installation
- Unique self-leveling tabs to allow for quick drywall offset
- View More Details
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase.
Ask about this product
Get an answer now with AI
Magic Apron Assistant is an AI virtual assistant. By proceeding, you consent to the recording and use of your information by The Home Depot (and authorized third parties). More information
Product Details
About This Product
Quick, easy and clean describe the new plug-on neutral design attributes offered by Eaton. Time saving features offer a quick installation equating to less time on the job. Designed to maximize installation efficiency and to provide additional convenience allowing for an easy installation. New features that help ensure an aesthetically clean and professional installation.
Highlights
- Amperage rating: 200 Amp
- Cover: cover included
- Enclosure: NEMA 3R
- Bus material: aluminum
- Used with: type BR 1 in. breakers
- BR type plug-on neutral breaker box eliminates the pigtail connection providing time and labor savings
- Dedicated neutral bus for breaker connection
- In-board neutral bar increases gutter space to allow for professional installation of conductors

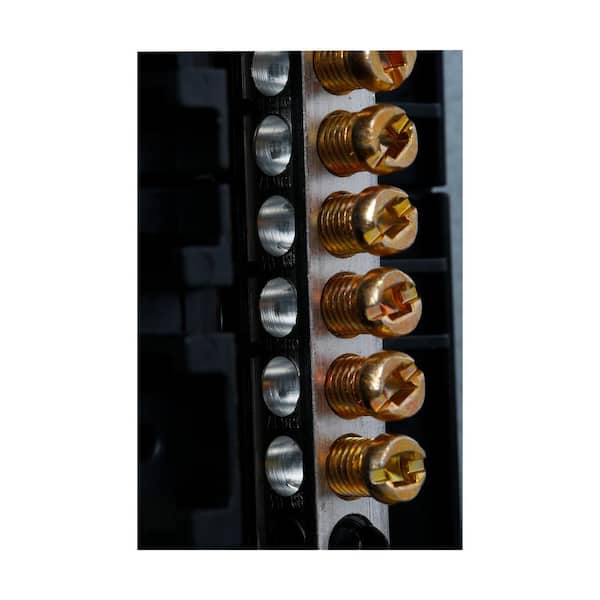

- Backed out neutral screws allows for quick connection of neutral and ground conductors
- Optimized knockout locations for additional access and easier to remove
- Self-leveling tabs allow for quick drywall offset and helps simplify installation
- Keyhole hanging feature allows for ease of cover installation for both top and bottom feed applications
- Rigid cover spine provides strength when twist outs are removed allowing for easier removal
- Eaton offers a full line of circuit breakers to meet all your protection needs including arc fault, ground fault, dual function and surge protection
- Return Policy
Product Information
Specifications
Dimensions: H 5.5 in, W 15 in, D 20.4 in
Dimensions
Product Depth (in.) | 20.4 in |
|---|---|
Product Height (in.) | 5.5 in |
Product Width (in.) | 15 in |
Details
Breaker Box Type | Subpanel |
|---|---|
Connection Type | Neutral |
Electrical Product Type | Main Lug/ Main Lug Kit |
Indoor/Outdoor | Outdoor |
Maximum Amperage (A) | 200 A |
Mounting Type | Flush |
NEMA Configuration | NEMA 3R |
Number of Circuits | 24 |
Number of Spaces | 12 |
Phase Type | 1 Phase |
Product Weight (lb.) | 22.2 lb |
Returnable | 90-Day |
Series Type | BR |
Voltage (V) | 120/240 V |
Warranty / Certifications
Certifications and Listings | UL Listed |
|---|---|
Manufacturer Warranty | 10 Year Per Warranty Statement |
Questions & Answers
Whats main breaker aic rating
Hi, this load center does not have a main breaker. This is a main lug only load center. If you have further questions, please contact our technical support team at 877-386-2273 opt 2 opt 3 opt 1.
does this model come with factory installed ground bar
Hi, this loadcenter will not include a factory installed ground bar. The ground bar will need to be purchased separately. However, part number BRP40L200G will include a factory installed ground bar. If you have further questions, please contact our technical support team at 877-386-2273 opt 2 opt 3 opt 1.
I can use a Simmons breaker in this panel
Hi, Eaton has not conducted UL testing for the use of Simmons breakers in this panel. We recommend contacting Simmons directly to confirm whether they have completed any testing or obtained approval for using their breakers in Eaton panels.
What type of threaded 2"hub (Part #) for this product?
Hi, the 2" hub that is used with this loadcenter is DS200H2. If you have further questions, please contact our technical support team at 877-386-2273 opt 2 opt 3 opt 1.
Are the main lugs on the two main bus included or do those need to be purchased separately? Mine didn’t include lugs except for Ground and Neutral
Thank you for your recent inquiry with The Home Depot. Because this is a "Main Lug Only" (MLO) panel, the two lugs that attach to the top or bottom of the hot bus bars (where the main power feed connects) should be installed or included in the box. They are usually pre-installed on the bus. We appreciate your business and look forward to serving you in the future.
Hi, the main lugs are included with this unit. If the lugs are missing, please work with Home Depot to replace this loadcenter.
Does this product come with the 200a breaker?
Hi, this is a main lug only loadcenter and will not include a main breaker. If you need assistance selecting a 200A main breaker style loadcenter, please contact our technical support team at 877-386-2273 opt 2 opt 3 opt 1.
Does this product come with the 200a breaker?
Hi, this is a main lug only loadcenter and will not include a main breaker. If you need assistance selecting a 200A main breaker style loadcenter, please contact our technical support team at 877-386-2273 opt 2 opt 3 opt 1.
Can this be flush/surface mounted on an exterior stucco wall? Do you need a separate trim kit, if so, which one?
Hi, this load center is designed exclusively for surface mounting. There is no kit available to allow for flush mounting. If you have further questions, please contact our technical support team at 877-386-2273 opt 2 opt 3 opt 1.
Viewing 1-8 of 29
