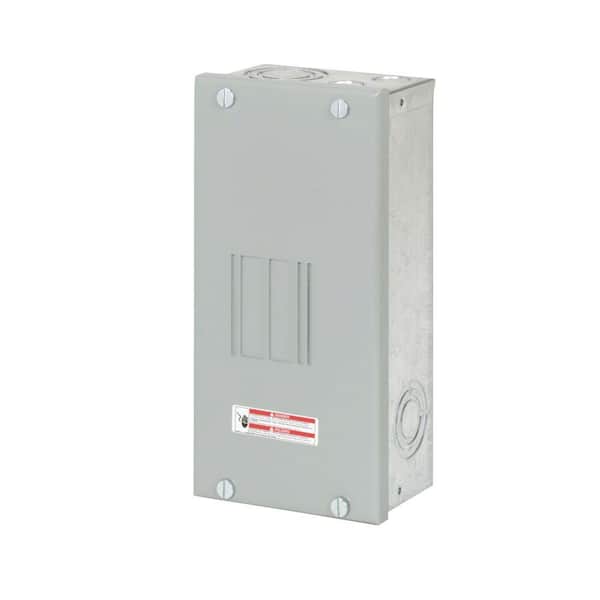

BR 70 Amp 2 Space 4 Circuit Indoor Main Lug Loadcenter with Ground Bar

$1880
  • Tin plated Aluminum bus
  • No bolted connections reduces chance of hot spots & faults
  • For use as indoor main lug loadcenter, w/ surface cover & ground
  • View More Details
Store
0 in stock
Text to Me

Frequently Bought Together

+
+
Price:
$1880

Product Overview

Specially designed for easy installation, Eaton's BR load centers house the branch circuit breakers and the wiring required to distribute power to individual circuits. This panel is a main lug panel which is used as sub-panel to add circuits to an existing main breaker panel. Sub panels are often used in a garage, home addition, barn or storage shed and/or workshop. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets. The BR24L70SGP is a 70 Amp main lug with 2 spaces and 4 circuits. A ground bar is included.
  • Amperage rating: 70A
  • Bus material: aluminum
  • Rated NEMA 1 for indoor use
  • Interrupt rating: 10 kAIC
  • Mounting: surface
  • Number of circuits: 4
  • Number of spaces: 2
  • Phase: single-phase
  • Voltage rating: 120/240V
  • Wire size: #8-#2 AWG Cu/Al at 60°C or 75°C

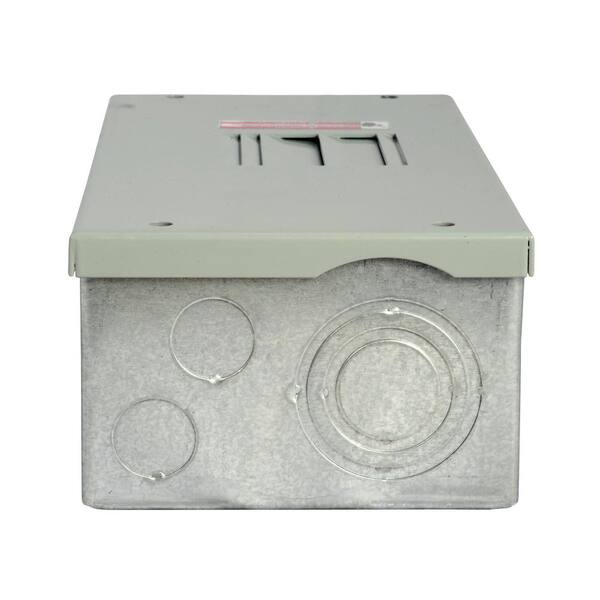

  • "Tangential" center knockout easier installation for conduit applications
  • Steel back pan provides solid and reliable breaker mounting—single piece design for stability and durability
  • Single keyhole mounting -one keyhole at the top and bottom provides easier mounting and leveling
  • Drywall marking on enclosure - indicates proper mounting depth for flush applications
  • Ground bar is included
  • Used with: type BR breakers
  • Learn More About Electrical Panels Here in our Buying Guide.

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar Individual Subpanels

Homeline 70 Amp 2-Space 4-Circuit Indoor Flush Mount Main Lug Load Center with CoverBR 70 Amp 2-Space 4-Circuit Indoor Main Lug Flush Mount
current product
BR 70 Amp 2 Space 4 Circuit Indoor Main Lug Loadcenter with Ground Bar
EQ 60 Amp 2-Space 4-Circuit Main Lug Surface Mount Load Center
BrandSquare DEatonEatonSiemens
NameHomeline 70 Amp 2-Space 4-Circuit Indoor Flush Mount Main Lug Load Center with CoverBR 70 Amp 2-Space 4-Circuit Indoor Main Lug Flush MountBR 70 Amp 2 Space 4 Circuit Indoor Main Lug Loadcenter with Ground BarEQ 60 Amp 2-Space 4-Circuit Main Lug Surface Mount Load Center
Price
$1711
$1875
$1880
$2572
Ratings
(114)
(2)
(3)
(19)
Maximum Amperage (amps)70707060
Indoor/OutdoorIndoorIndoorIndoorIndoor
Number of Spaces2222
Mounting TypePlug-OnBolt OnBolt OnBolt On
Number of Circuits4444
Load center width (in.)4.8154.56
Load Center TypeMain LugMain LugMain LugMain Lug
Load center height (in.)9.33.49.4411
View ProductView ProductView ProductView Product

Specifications

Dimensions

Load center depth (in.)
3.0
Load center height (in.)
9.44
Load center width (in.)
4.5

Details

Electrical Product Type
Main Lug/ Main Lug Kit
Indoor/Outdoor
Indoor
Load Center Mounting Type
Surface
Load Center Type
Main Lug
Maximum Amperage (amps)
70
Mounting Type
Bolt On
NEMA Configuration
NEMA 1
Number of Circuits
4
Number of Spaces
2
Phase Type
1 Phase
Product Weight (lb.)
2.9
Returnable
90-Day
Voltage (volts)
120/240

Warranty / Certifications

Certifications and Listings
ANSI Certified,CSA Listed,UL Listed
Manufacturer Warranty
10 Years
