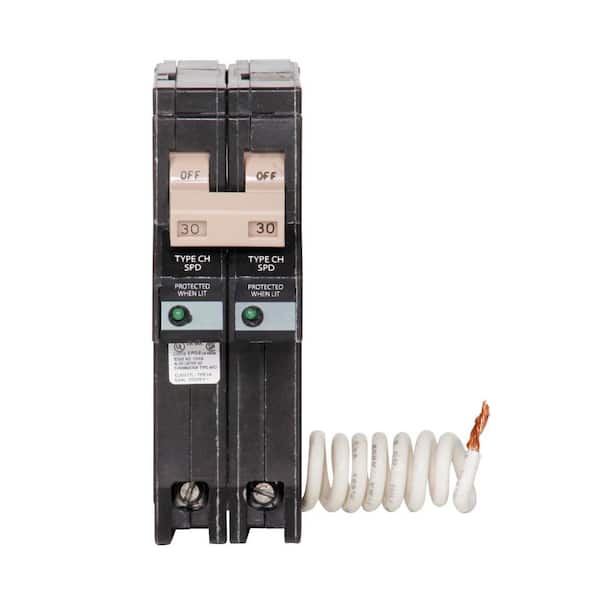

CH 30 Amp 2-Pole Circuit Breaker with Surge Protection

  • Designed for surge protection to every home circuit
  • Features a 2-pole thermal magnetic breaker
  • Compatible with type CH load centers
  • See More Details

Frequently Bought Together

+
+
Price:

Product Overview

The surge breaker is designed to provide complete home surge protection for sensitive electronics and appliances from the damaging effects of surges. In addition to surge protection, the surge breaker is a functional 2-pole thermal magnetic breaker providing protection for overloads and short circuits. The combination of circuit protection and surge protection provides flexibility and space savings in the loadcenter.
  • Complete home surge protection for all circuits plus a functional 2-pole thermal magnetic breaker
  • Direct connection to the busbar eliminates potential for incorrect installation
  • Provides over voltage protection to the connected circuit
  • Ideal for new construction or renovation when spaces in load center are limited
  • Meets both UL 489 as well as UL 1449 3rd Edition
  • 36kA surge current capacity rating
  • LED's provide protection status
  • Nominal discharge current: 10000 KA
  • 5-year warranty and limited home connected equipment warranty
  • For use in type CH load centers
  • Surge current capacity per phase: 36 kA (L1- N 36 kA, L2- N 36 kA), surge current capacity is the maximum one time surge current rating per phase
  • Click here for more information on Electronic Recycling Programs

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar Double Pole Breakers

current product
CH 30 Amp 2-Pole Circuit Breaker with Surge Protection
CSR 200 Amp 2-Pole 25 kAIC Main Circuit Breaker40 Amp Double Pole Type QE Ground Fault Equipment Protection Circuit Breaker15 Amp Double Pole Type QE Ground Fault Equipment Protection Circuit Breaker
BrandEatonEatonSiemensSiemens
NameCH 30 Amp 2-Pole Circuit Breaker with Surge ProtectionCSR 200 Amp 2-Pole 25 kAIC Main Circuit Breaker40 Amp Double Pole Type QE Ground Fault Equipment Protection Circuit Breaker15 Amp Double Pole Type QE Ground Fault Equipment Protection Circuit Breaker
Price
Ratings
(16)
(16)
(1)
(1)
Interruption TypeStandard TripStandard TripGFCIGFCI
Breaker TypeDouble PoleDouble PoleDouble PoleDouble Pole
Pack Size1111
Maximum Amperage (amps)302004015
Power Distribution FeaturesNo Additional FeaturesNo Additional FeaturesNo Additional FeaturesNo Additional Features
Voltage (volts)120/240120/240120/240120/240
Mounting TypePlug-OnBolt OnBolt OnBolt On
Product Weight (lb.).612.551.071.07
Electrical Product TypeBreakerBreakerBreakerBreaker
View ProductView ProductView ProductView Product

Specifications

Dimensions

Product Depth (in.)
2
Product Height (in.)
8
Product Width (in.)
4

Details

Breaker Type
Double Pole
Electrical Product Type
Breaker
Interruption Type
Standard Trip
Maximum Amperage (amps)
30
Mounting Type
Plug-On
Number of Poles
2
Pack Size
1
Power Distribution Features
No Additional Features
Product Weight (lb.)
.61
Returnable
90-Day
Voltage (volts)
120/240

Warranty / Certifications

Certifications and Listings
UL Listed
Manufacturer Warranty
Limited Lifetime Warranty according to the Warranty Policy

Questions & Answers

5Questions13Answers

Does it need to be installed at the closest breaker position to the incoming power in order to be...

Asked by sailpe August 17, 2020
3
Answers

Being installed in the position closest to the incoming power would be ideal, but isn't always possible. Luckily it isn't absolutely necessary.

What models of electrical main panels does this breaker work with?

Asked by Keen January 16, 2020
3
Answers

This fits Eaton/Cutler-Hammer CH series loadcenters.

Does this take up 1 or 2 spaces?

Asked by Bear August 21, 2019
1
Answer

Hello, CH250SURCS is a two pole breaker and will take up two spaces. Regards, Eaton.

What is the difference in this and the one priced at $128.00

Asked by George November 18, 2018
4
Answers

This one with the "CS" suffix is packaged for retail sales such as Home Depot.

What is the difference between Sur and Sursc surge protectors?

Asked by Tom September 29, 2018
2
Answers

It appears that the SUR is a plug-in mount, while the SURCS is a bolt-on mount.
