Model # DG222URB

Internet #301065146

0782113144238

Eaton

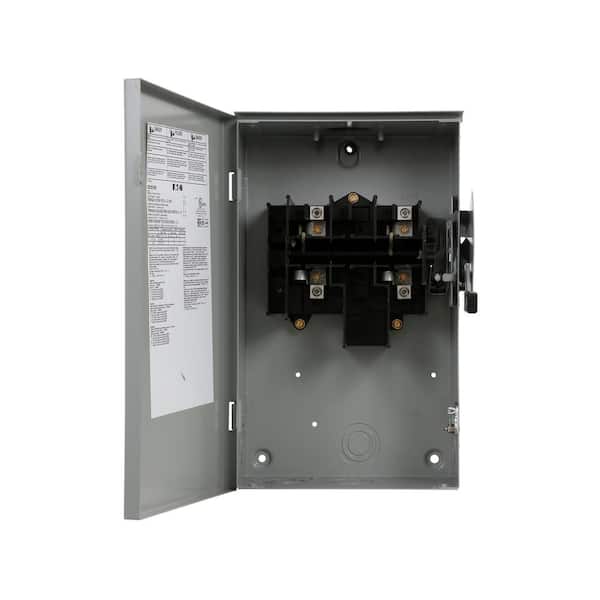

General Duty 60 Amp Non-Fusible Outdoor Safety Switch

$ 76 05

Overview

Non-fusible safety switches provide a means to manually connect or disconnect the load from the source. Switches are load break ready. This is a 60 Amp general duty non-fusible safety switch rated for outdoor use.
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Frequently Bought Together

Product Overview

Non-fusible safety switches provide a means to manually connect or disconnect the load from the source. Switches are load break ready. This is a 60 Amp general duty non-fusible safety switch rated for outdoor use.
  • Amp rating is 60 Amp
  • Rated NEMA 3R for outdoor use
  • Enclosure material is painted galvanized steel
  • Fuse configuration is non-fusible
  • Voltage rating is 240-Volt
  • Number of wires is 2
  • Number of poles is 2
  • Ample wire bending space provides for easier installation
  • Visible double break rotary blade mechanism offers 2-points of contact for a positive open and close, easier operation and to help prevent contact burning for longer contact life
  • Interlocking mechanism keeps the door closed when the handle is in the ON position to maximize safety
  • Double and triple padlocking capability increases personnel safety
  • Handle position (ON or OFF) can be clearly seen from a distance and the length provides for easy operation
  • Bilingual English/Spanish name-plate and door label on 30-100A aids understanding in locations where multiple languages are used
  • Warning, switch is not approved for service entrance unless a neutral kit is installed

Product Overview

Model #: DG222URB
Internet #: 301065146

Non-fusible safety switches provide a means to manually connect or disconnect the load from the source. Switches are load break ready. This is a 60 Amp general duty non-fusible safety switch rated for outdoor use.

  • Amp rating is 60 Amp
  • Rated NEMA 3R for outdoor use
  • Enclosure material is painted galvanized steel
  • Fuse configuration is non-fusible
  • Voltage rating is 240-Volt
  • Number of wires is 2
  • Number of poles is 2
  • Ample wire bending space provides for easier installation
  • Visible double break rotary blade mechanism offers 2-points of contact for a positive open and close, easier operation and to help prevent contact burning for longer contact life
  • Interlocking mechanism keeps the door closed when the handle is in the ON position to maximize safety
  • Double and triple padlocking capability increases personnel safety
  • Handle position (ON or OFF) can be clearly seen from a distance and the length provides for easy operation
  • Bilingual English/Spanish name-plate and door label on 30-100A aids understanding in locations where multiple languages are used
  • Warning, switch is not approved for service entrance unless a neutral kit is installed

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar

Compare Similar Products
Brand GE Eaton Eaton Eaton
Name 60 Amp 240-Volt Non-Fuse Indoor Safety Switch 60 Amp 120/240-Volt 14,400-Watt Fused Safety Switch General Duty 60 Amp Non-Fusible Outdoor Safety Switch 60 Amp 120/240-Volt 14,400-Watt Fused Safety Switch
Price
$48.19
$71.07
$76.05
$78.21
Ratings (13) (4) (1) (2)
Number of Phases 1 3 1 1
Maximum Amperage (amps) 60 60 60 60
Power Distribution Features No Additional Features Fusible No Additional Features Fusible
Voltage (volts) 240 120/240 240 120/240
View Product View Product View Product View Product

Specifications

Dimensions

Product Depth (in.)
13.75 in
Product Height (in.)
7.5 in
Product Width (in.)
9.5 in

Details

Automatic/Manual
Manual
Electrical Product Type
Safety Switch
Features
No Additional Features
Maximum Amperage (amps)
60
Maximum Wattage
0 W
Number of Phases
1
Power Distribution Features
No Additional Features
Product Weight (lb.)
9 lb
Returnable
90-Day
Voltage (volts)
240

Warranty / Certifications

Certifications and Listings
1-UL Listed
Manufacturer Warranty
1 Year

Specifications

Dimensions

Product Depth (in.)
13.75 in
Product Height (in.)
7.5 in
Product Width (in.)
9.5 in

Details

Automatic/Manual
Manual
Electrical Product Type
Safety Switch
Features
No Additional Features
Maximum Amperage (amps)
60
Maximum Wattage
0 W
Number of Phases
1
Power Distribution Features
No Additional Features
Product Weight (lb.)
9 lb
Returnable
90-Day
Voltage (volts)
240

Warranty / Certifications

Certifications and Listings
1-UL Listed
Manufacturer Warranty
1 Year
